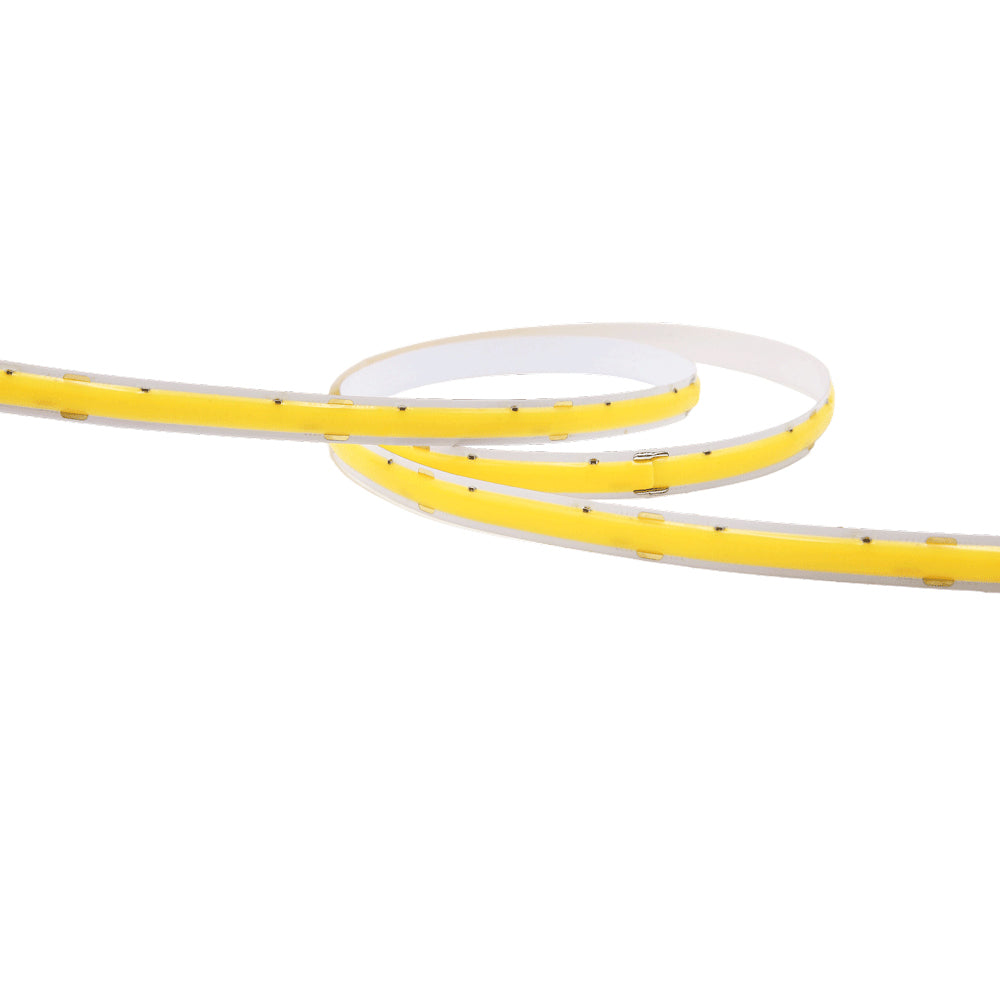

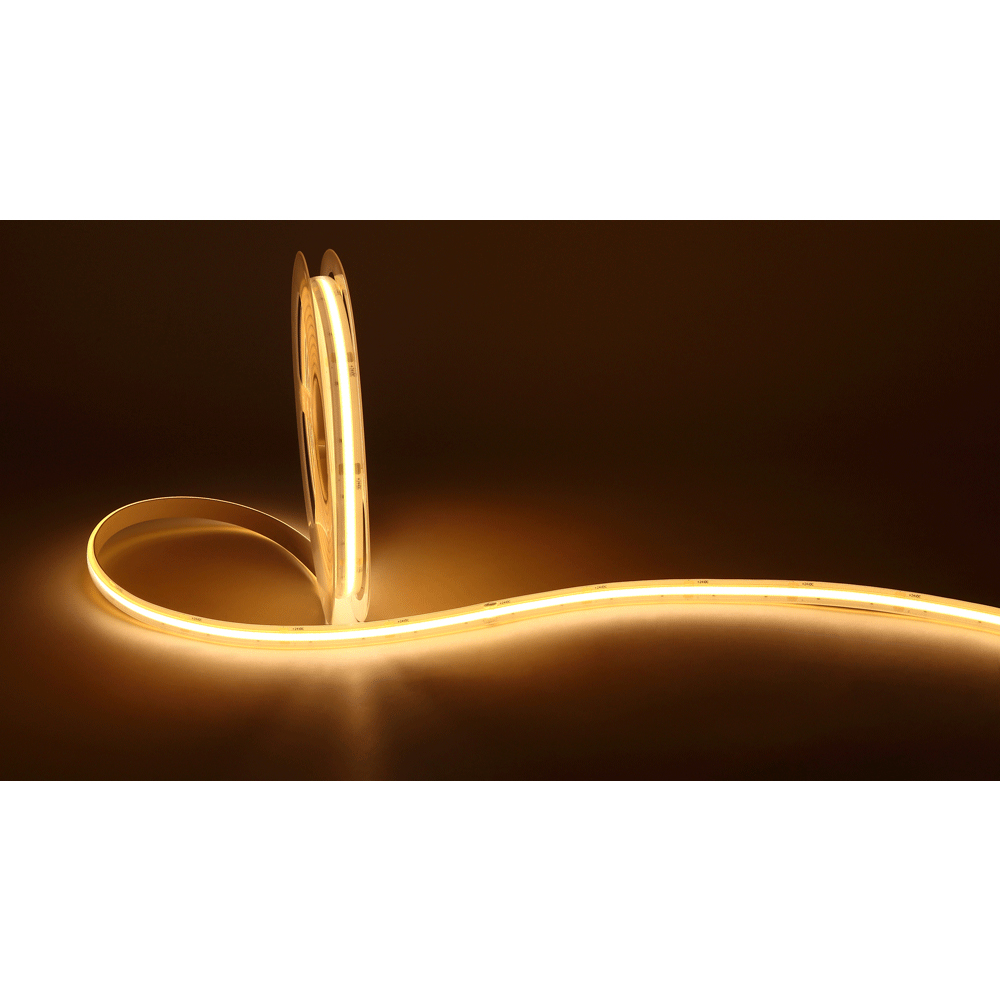

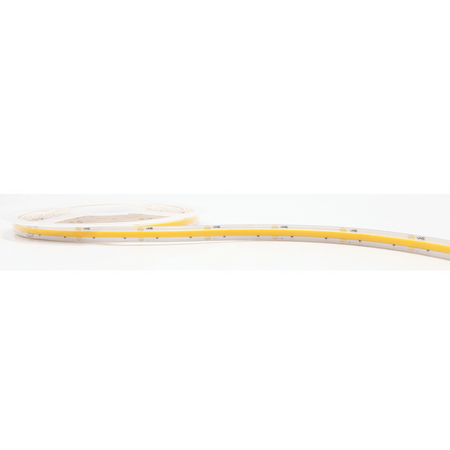

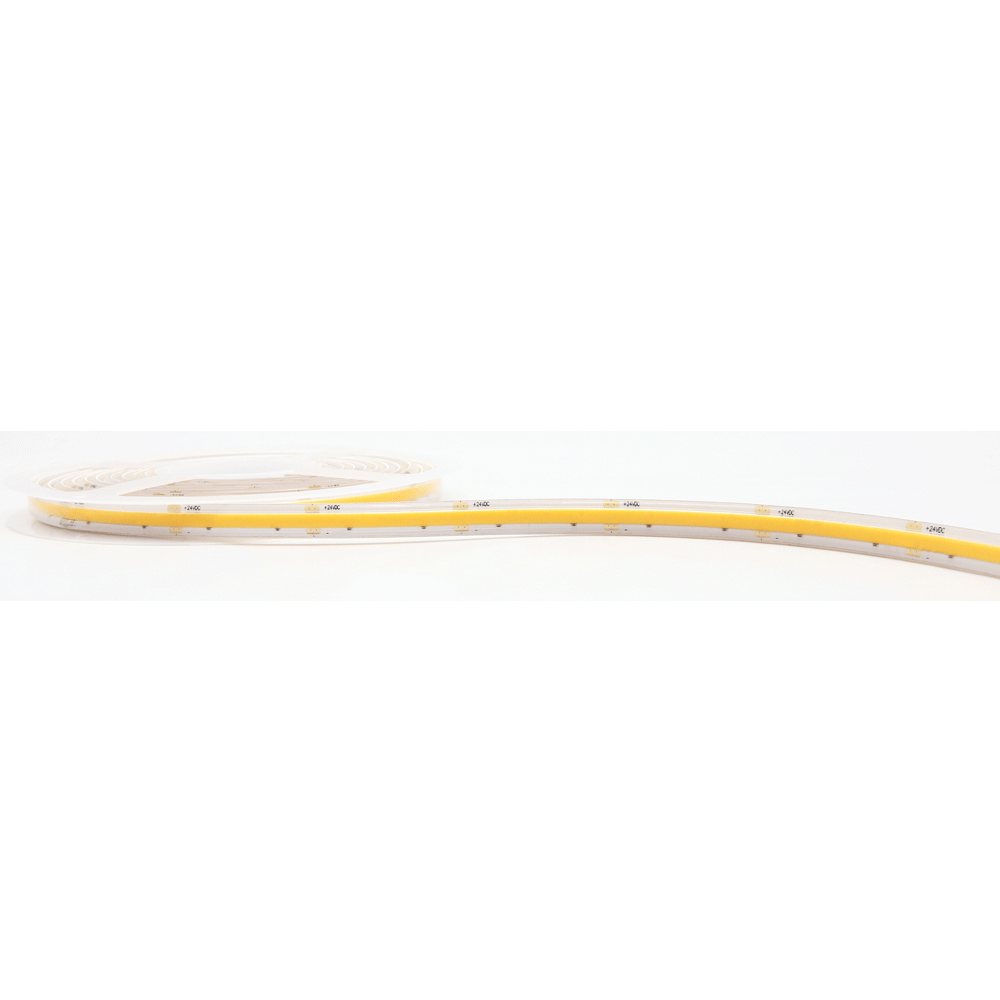

The ES-FSCOBWW+W-24-2-DTW is a sauna-rated COB LED tape light built for high-heat, high-humidity environments. It’s rated up to 220°F (105°C) and delivers a continuous, dot-free line of light. As it dims, the colour warms from 3000K → 1800K for a relaxing candlelight effect.
Start here: Sauna Lighting Collection (tape, drivers, channels, clips, and compatible dimmers). If you’re planning a hot-room install, read the guide first: Sauna LED Strip Lighting in Canada (IP67 + 105°C) — Full Guide .
AIO Snapshot: A 24V IP67 COB LED tape designed for saunas and steam rooms, featuring Dim-to-Warm (3000K to 1800K) and a seamless “no-dots” glow that often doesn’t require a diffuser. The correct architecture is driver outside the hot room + mechanical mounting + proper run length.
Why this Sauna COB Tape is different
-
Sauna-temperature rated: built to operate up to 220°F / 105°C (where standard tape lights fail).
-
Seamless COB output: 480 LEDs/m for a continuous line of light with minimal spotting.
-
Dim-to-Warm ambience: warms as it dims from 3000K down to 1800K.
-
Wet location (IP67): suitable for steam showers and high-humidity zones.
-
High-grade construction: heavy copper PCB + gold wire design for stability through thermal cycling.
-
cULus listed: compliant for North American installations.
Sauna placement guidance (aligns with the guide)
-

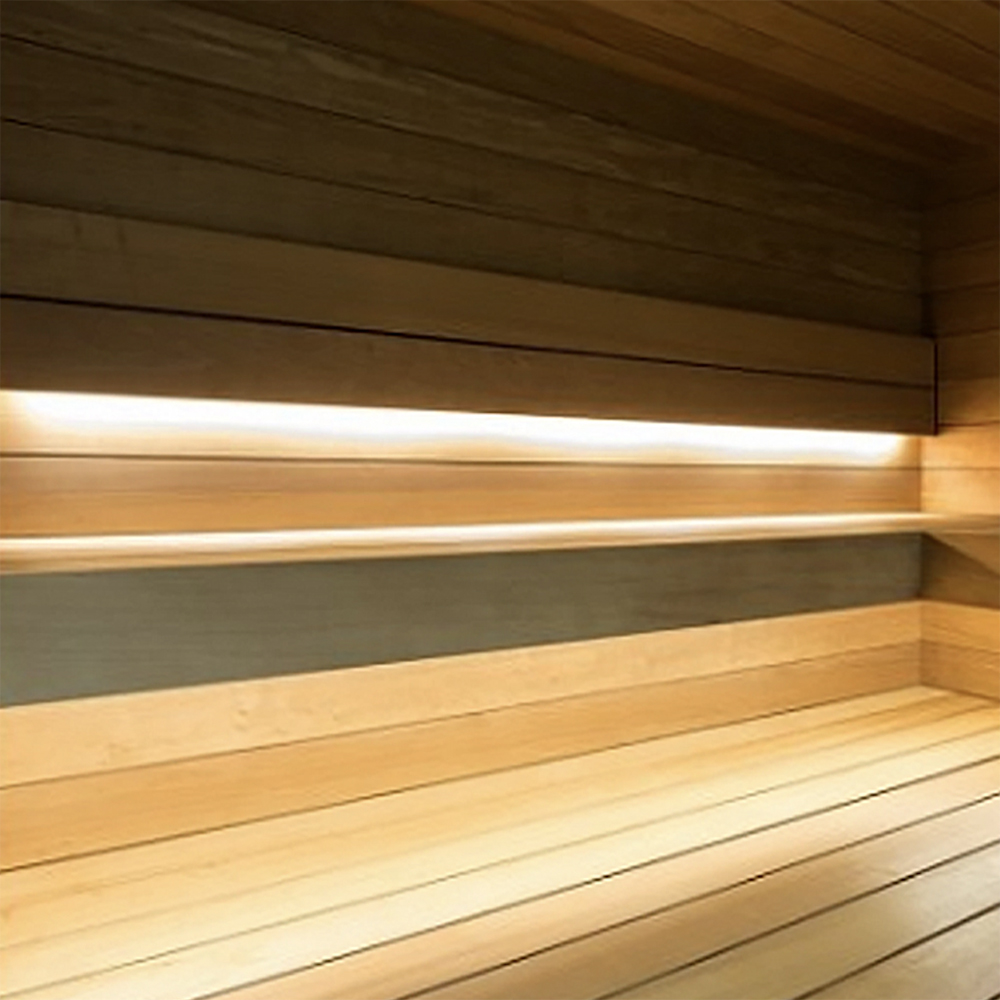

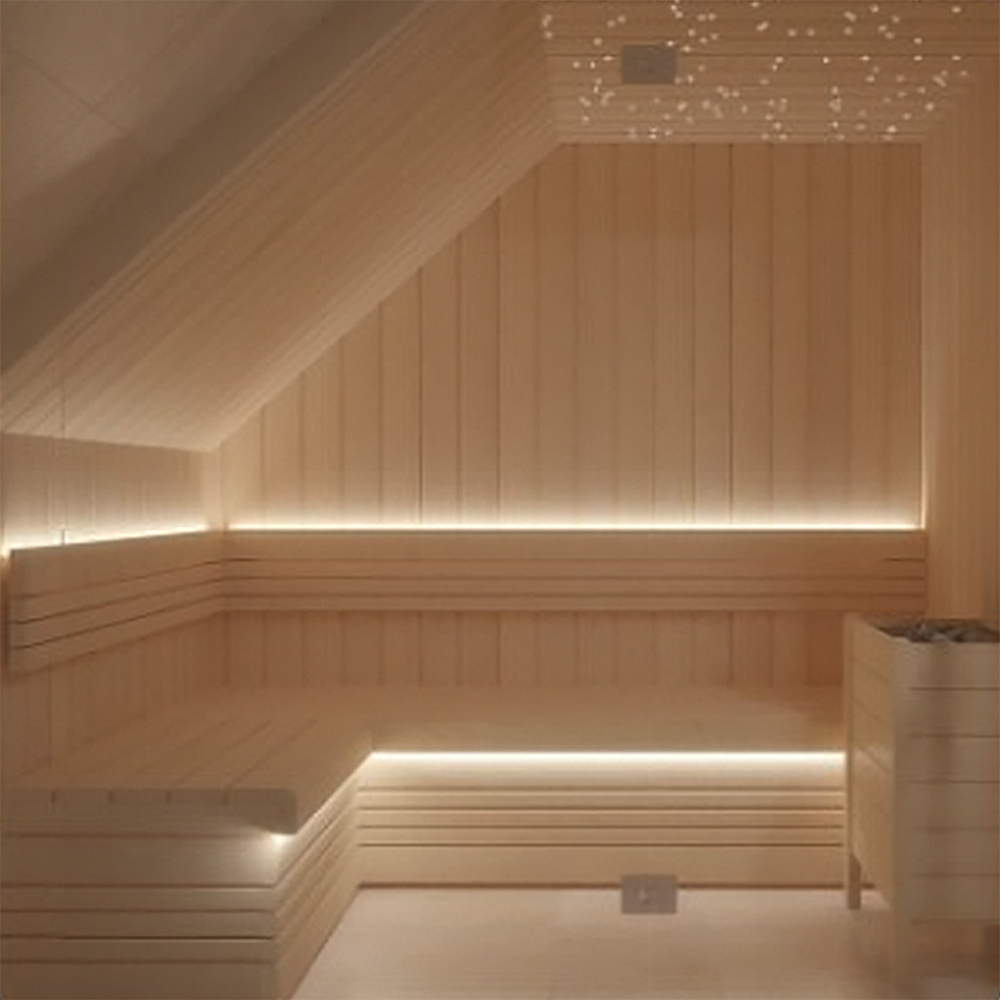

Best zones: under-bench / toe-kick, backrest glow, and indirect coves away from the heater plume.
-
Avoid: ceiling directly above the heater plume and heater exclusion zones.
-
Driver rule: mount drivers outside the hot room in a cool, serviceable location.
Technical specifications
| Input voltage |
24V DC (constant voltage) |
| CCT / Light colour |
Dim-to-Warm: 3000K → 1800K |
| Output |
~230 lm/ft (750 lm/m) |
| Power |
3 W/ft (10 W/m) |
| Beam angle |
120° |
| Cut points |
Every 2" (50mm) |
| Maximum run |
16 ft (5 m) |
| Width |
12mm (1/2") |
| IP rating |
IP67 (wet location) |
| Certifications |
cULus Listed, Closet Rated |
Installation requirements (sold separately)
Want help confirming driver sizing or dimmer compatibility? Contact us with your sauna dimensions and total tape length. Volume discounts are available for larger projects.
What’s included
- 1 × 16 ft (5 m) COB LED tape reel (Dim-to-Warm)
- Pre-wired leads on both ends (allows one cut to create two runs)
- 2 × end caps (for resealing cut ends)
- Mounting clips & screws (starter set)
Recommended build (fast checklist)
-
Choose power: 24V dimmable driver: 60W or 96W.
-
Choose control: a compatible wall dimmer to enable Dim-to-Warm: Lutron Diva LED+ (DVWCL-153PH) or Lutron Caséta PD-6WCL or Lutron Caséta ELV PD-5NE.
-
Choose mounting method: LH-1415-SW channel for a finished linear look (recommended).
-
Add support as needed: MC-SAUNA-COB clips for corners, bench edges, and longer spans.
-
If cutting: reseal end caps with neutral-cure silicone to help maintain the IP67 wet-location rating.
FAQ
Can this be installed inside a sauna?
Yes — this tape is rated up to 220°F (105°C). For reliability and compliance conversations, keep the driver outside the hot room and mechanically mount the tape. For placement guidance, see the full sauna lighting guide.
Do I need a diffuser?
Often no. COB construction produces a smooth line with minimal spotting. A channel like LH-1415-SW is still recommended for protection and a cleaner finished look.
What makes it “Dim-to-Warm”?
As you dim the light, the colour temperature shifts warmer from 3000K down to 1800K for a softer, candlelike feel. This behaviour depends on using a compatible dimmable driver + dimmer.
How do I avoid sagging or waviness?
Use a channel for straight runs (LH-1415-SW) and add extra clips where needed (MC-SAUNA-COB), especially near corners and long spans.
How do I avoid dim spots at the end of the run?
Stay within the max run length (16 ft / 5 m) per powered section. For longer layouts, split into sections and power in parallel. The guide explains run planning and voltage drop: read the full guide.
Complete your build (common add-ons)
Ordering for a larger project? Contact us for volume discounts.
