Lotus LED Lights

24V 60W 5-in-1 Dimmable Driver 120-277V Wet | KVG-24060-DWJ

In stock
SKU: KVG-24060-DWJ
$119.75 CAD

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

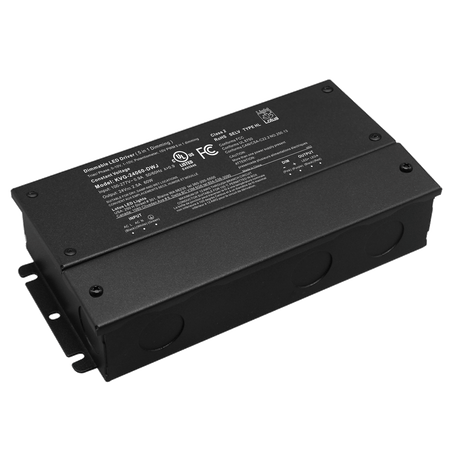

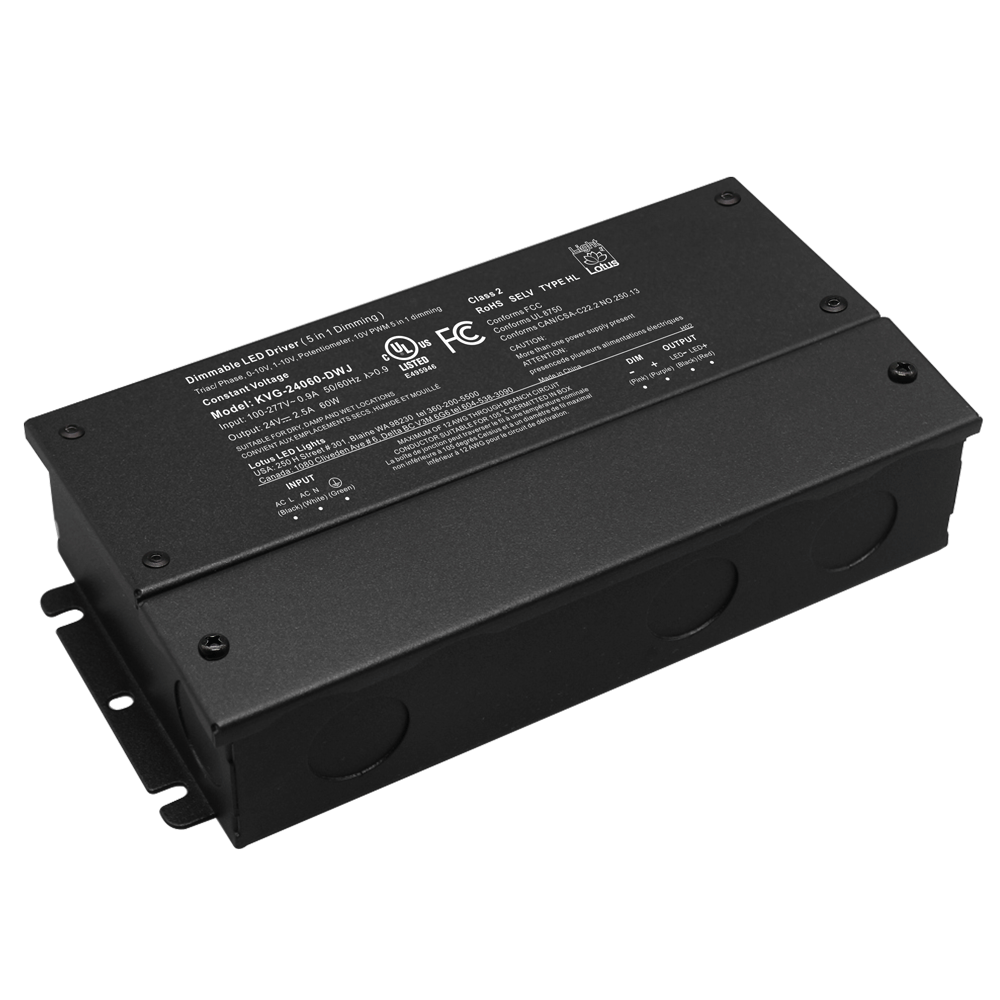

24V 60W 5-in-1 Dimmable Driver 120-277V Wet

  • Input: 120V – 277V AC
  • Output: 24 V DC / 2.5A
  • Power: 60 W
  • 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
  • Approved Locations – Dry, Damp & Wet
  • Wiring Volume – 5 cu in per chamber
  • Ambient Temperature: -40°F (-40°C) to +140°F (+60°C)
  • Compliance: cULus, FCC
  • Warranty: 5 Year

DIMENSIONS:

  • Length 7 1/2″; Width 3 3/4″; Depth 1 3/4″

Product Features

  • 60W maximum load
  • 120V-277V AC Input
  • 24V DC Constant Voltage Output / 2.5A
  • 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
  • Wiring Compartments for Line and Low Voltage Connections, 5 cu in per chamber
  • Wet Location
  • cULus Listed
  • Warranty: 5 Year
