23-AWG bulk for permanent links
CMP-rated 23-AWG solid copper Cat6e for in-wall/ceiling runs to POE-Jack® plates, APs and cameras. Designed for PoE++ and DC microgrid layouts.
- POEJC6E-CMP — Cat6e Enhanced CMP bulk (23-AWG)
Quick answer: how should I cable for POE-Jack®?
For GRID & POE-Jack® designs in Canada, treat cabling as two layers: 23-AWG Cat6e CMP permanent links for long/high-power PoE runs, and slim Cat6A patch leads only where runs are short and visible (racks, desks, media cabinets).
23-AWG solid copper gives lower resistance, less heat rise and more voltage headroom for PoE++ and cascaded POE-Jack® nodes. Slim 28-AWG patch simplifies dense racks and improves airflow — but it’s not meant to replace proper permanent links in plenums or long pathways.
For the detailed math, see 23-AWG Cat6e vs Cat6 for PoE in Canada and the Slim Cat6A patching for dense PoE racks guide.
Shop by cable type

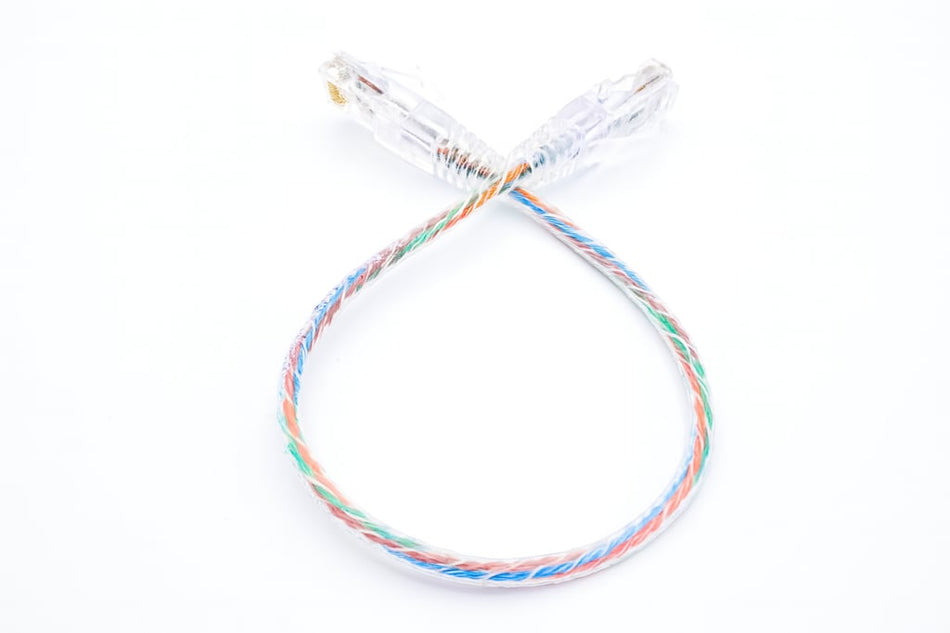

Slim Cat6A patch for dense racks
Flexible 28-AWG patch leads keep racks tidy, reduce airflow blockage and make moves/adds/changes easier, as long as runs stay short.
- POEJK6A SlimPatch Cat6A — short PoE-friendly patch cords for GRID racks

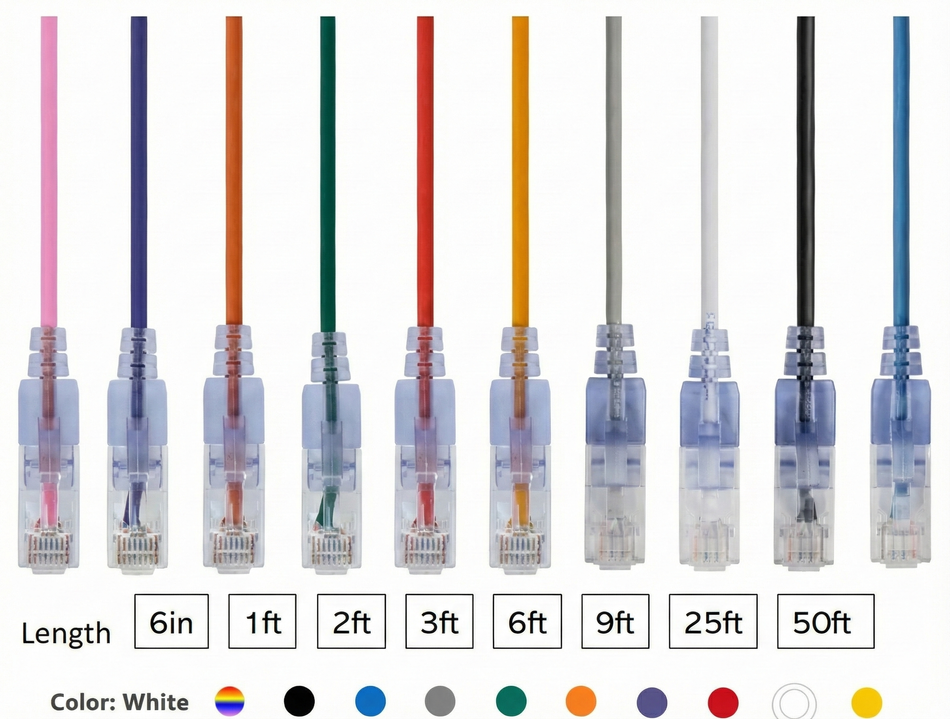

- GRP6A SlimPatch series — high-visibility jacket colours for quick tracing
Termination & test accessories
LED keystone jacks and MPTL ends make it easier to terminate, label and service PoE links in busy Canadian telecom rooms and ceilings.
- POEJK6A-VI — Cat6A/e RJ45 MPTL staggered sled ends
- POEJK-VI — Port-trace LED keystone jacks
Featured bulk cable

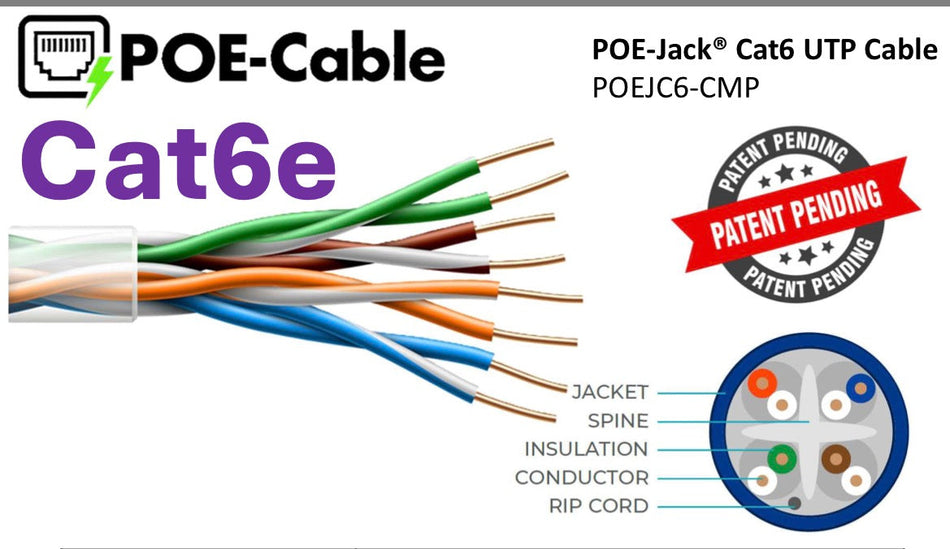

- POEJC6E-CMP — Cat6e Enhanced Bulk Ethernet (CMP, 23-AWG solid copper). Engineered for high-power PoE++ permanent links to POE-Jack® plates, APs and cameras in Canadian buildings.
Slim patch & terminations for PoE
Use slim Cat6A patch cords and purpose-built terminations to keep PoE racks and consolidation points easy to work on — especially when you’re running many POE-Jack® zones from a single core switch.
- Short & visible: Keep 28-AWG patch under a few metres and out of plenums or long pathways.
- MPTL-friendly: Use POEJK6A-VI for reliable jack-to-device terminations.
- Traceable: Combine POEJK-VI LED jacks with port maps and testers for fast service.
Best practices for PoE cabling (Canada)
- Use 23-AWG CMP for in-wall/ceiling permanent links to POE-Jack® plates, APs and cameras.
- Reserve slim 28-AWG patch for short rack/desk jumps to improve airflow and density.
- Respect bundle sizes and pathway fill to manage heat in high-draw PoE++ scenarios; follow TSB-184-A guidance where applicable.
- Label both ends and maintain a port map — faster service when combined with POE-Jack® LED trace jacks.
- Confirm CEC, CMP/CMR and temperature ratings with your electrician or low-voltage contractor for each project.
Compare cable choices for PoE
| Type | Typical gauge | Best use | PoE behaviour | Notes for Canadian projects |
|---|---|---|---|---|
| 23-AWG Cat6e CMP bulk | 23-AWG solid copper | Permanent links to POE-Jack®, APs, cameras & touch panels | Lowest resistance, better voltage at distance, cooler bundles for PoE++ | Preferred for PoE++ and cascades; aligns well with TSB-184-A bundle guidance. |
| Standard Cat6 patch | 24–26-AWG stranded | Short equipment cords where density is moderate | Acceptable for PoE/PoE+ if runs are short and device draw is modest | Check temperature rating and avoid very long stranded patch runs in hot plenums. |
| Slim Cat6A patch | ~28-AWG stranded | High-density racks & patch panels | More heat and voltage drop per metre than 23-AWG; keep runs short | Excellent for tidy racks; not a substitute for 23-AWG permanent links in ceilings or risers. |
FAQs
Is Cat6e CMP required for all runs?
Not always. Use 23-AWG CMP for long or higher-power links (PoE++ to POE-Jack®, APs and cameras), and wherever plenum rating is required. Short, low-draw paths can often reuse existing Cat cabling if it tests clean, meets code and supports the PoE class you need.
Does slim 28-AWG patch work with PoE++?
Yes — for short patching. Slim Cat6A cords are designed for high-density racks and visible patching. For permanent links, longer pathways or higher wattage, choose 23-AWG solid copper to minimise heat and voltage drop.
How long can my PoE runs be with 23-AWG Cat6e?
For data, standard Ethernet limits still apply (up to 100 m for permanent link + patching). For PoE power, 23-AWG gives more voltage headroom at a given distance than thinner cable. If you’re pushing cascades or long runs, check the 23-AWG vs Cat6 PoE guide or ask for a quick design review.
Can I mix existing Cat6 with new GRID cabling?
Often yes. Many projects keep existing drops where runs are short and loads are light, then specify 23-AWG CMP for new high-power or longer runs. A quick cable test and PoE class review will show where upgrades are needed.
Technical guides & calculators
Not sure which cable mix is right? Share your run lengths, PoE loads and building type and we’ll help validate a Canada-ready cabling plan for GRID & POE-Jack®.
