Lotus 5CCT Selectable 24V 96W 120-277V Driver 5-in-1 Dimmable | SVD-24096-J-5CCT

Overview

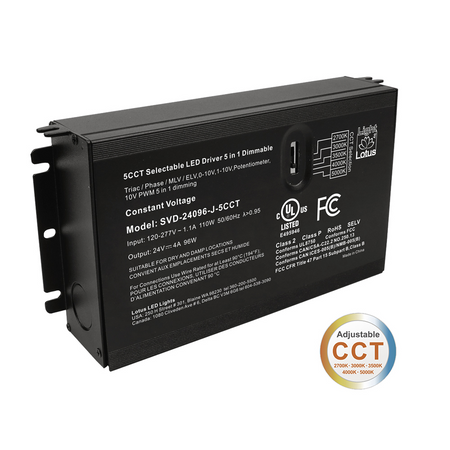

The Lotus LED 5CCT Selectable 24V 96W Driver is an architectural-spec, Class 2 power supply designed specifically for tunable white LED tape applications. This high-quality electronic constant voltage driver features integrated wiring compartments for both line and low voltage connections, offering a professional solution for "Contractor-grade" installations requiring precision color control.

Key Features

• Advanced 5-in-1 Dimming: Offers superior compatibility with TRIAC/ELV/MLV, 0-10V, 1-10V, Potentiometer, and 10V PWM dimming systems.
• Integrated Color Control: Features a 5CCT selectable switch allowing field adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K.
• Universal Input Voltage: Engineered to operate on 120V to 277V AC, making it suitable for both residential and commercial projects.
• Robust Protection: Built-in safety features protect against short circuits, over-voltage, over-heating, and overloading.
• All-Environment Rating: Certified for use in dry, damp, and wet locations, providing maximum placement flexibility.

Technical Specifications

• Input Voltage: 120V - 277V AC
• Output: 24V DC / 4A
• Power Rating: 96W
• Load Range: 9W minimum to 96W maximum
• CCT Options: 2700K - 3000K - 3500K - 4000K - 5000K
• Dimmability: TRIAC, 0-10V, 1-10V, Potentiometer, 10V PWM
• Efficiency: 89% @ 120V / 91% @ 277V at full load
• Power Factor: > 0.95 at full load
• PWM Frequency: 16 KHz
• Approved Locations: Dry, Damp, and Wet Locations
• Operating Temperature: -40°F (-40°C) to +122°F (+50°C)
• Dimensions: 7 1/2" x 4 1/4" x 1 5/8" (190 mm x 109 mm x 40 mm)
• Certifications: cULus Listed, Class 2, Class P, FCC Part 15 Subpart B
• Warranty: 5 Year
