24V 192W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet | SMT-024-192VTD52JV2

In stock
SKU: SMT-024-192VTD52JV2
$255.25 CAD

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

24V 192W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet

  • Input: 120V – 277V AC
  • Output: 24 V DC / 2 x 4 A
  • maximum Load: 192 W
  • 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
  • Approved Locations – Dry, Damp & Wet
  • Wiring Volume – 5 cu in per chamber
  • Ambient Temperature: -40°F (-40°C) to +140°F (+60°C)
  • Compliance: cULus Listed file # E507826
  • Warranty: 7 Year

DIMENSIONS:

  • Length 11″; Width 4 1/4″; Depth 1 3/4″

Product Features

  • 192 W maximum load (2 x 96 W)
  • 120V-277 V AC Input
  • 24 V DC Output / 2 x 4 A
  • 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM

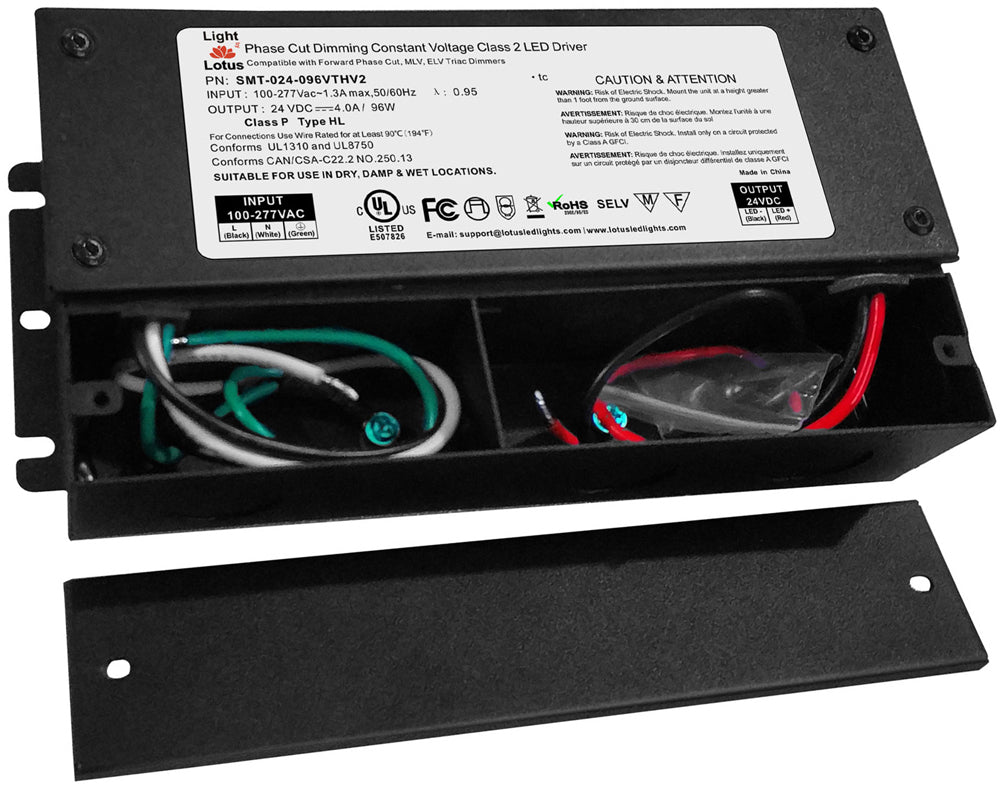

  • Wiring Compartments for Line and Low Voltage Connections
  • Wet Location
  • cULus Listed
  • Warranty: 7 Year
