Lotus LED 4" Adjustable Recessed LED – 12W Dim to Warm (Venus Series)

The Lotus LED AD-LED-4-S12W-DTW-LREY is a premium 4-inch adjustable recessed gimbal LED fixture designed for both residential and commercial applications. Featuring Dim to Warm technology (3000K–1800K), this fixture delivers a smooth, halogen-like dimming experience with modern LED efficiency.

With regressed optics for low glare, a compact housing, and IC-rated, air-tight construction, this fixture is ideal for new construction and retrofit installations where performance, reliability, and visual comfort are critical.

Key Features & Benefits

• Dim to Warm technology: smoothly transitions from 3000K to 1800K when dimmed
• Adjustable gimbal: 20° tilt in all directions with full 360° rotation
• Regressed optics: reduces glare and improves visual comfort
• High output: approximately 700 lumens with 90W halogen equivalent
• CRI 90+ for accurate color rendering
• Ultra-slim depth: only 2 1/4" deep for limited ceiling space

Electrical & Performance Specifications

• Wattage: 12W
• Light Output: ~700 lumens
• Color Temperature: Dim to Warm 3000K–1800K
• Beam Angle: 38° wide beam
• CRI: 90+
• Halogen Equivalent: 90W

Dimming & Driver Information

• Standard Driver: 120V AC Triac dimmable
• Optional Driver: 120–347V AC 0–10V dimmable (sold separately)
• Driver Location: Integrated inside connection box (no junction box required)

Installation & Ratings

• Type IC rated – no housing required
• Air-tight construction
• Wet location approved
• Ambient temperature: -20°C to +40°C
• Cutout: 4 1/4" to 4 1/2"
• Fixture depth: 2 1/4"

Certifications & Lifespan

• cETLus listed
• Title 24 compliant
• 70% lumen maintenance at 50,000 hours
• 5-year manufacturer warranty

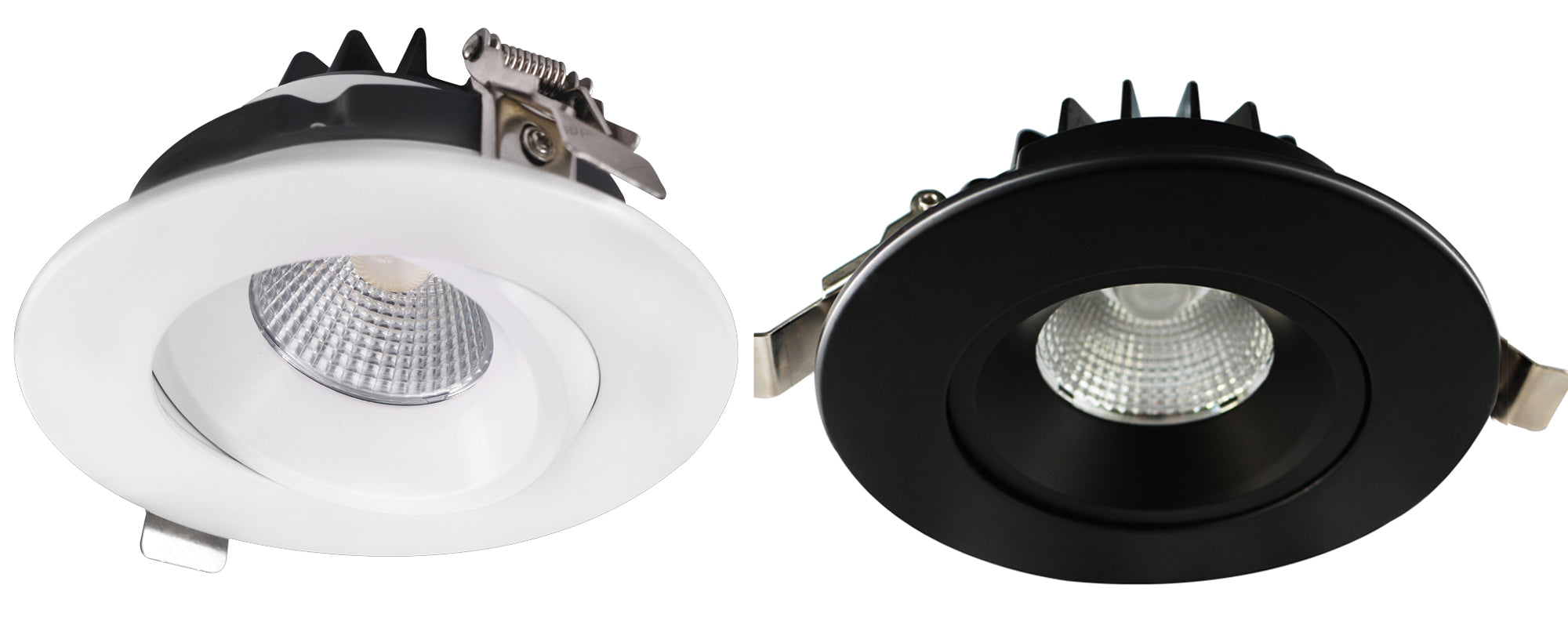

Available Finishes

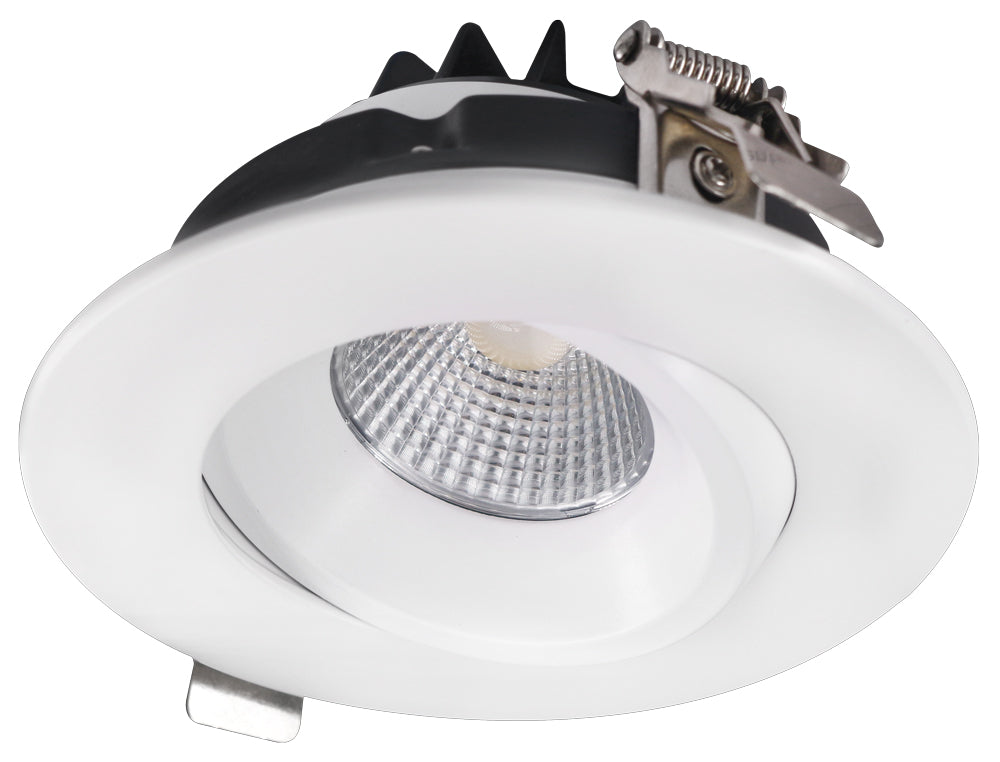

• White (WH)

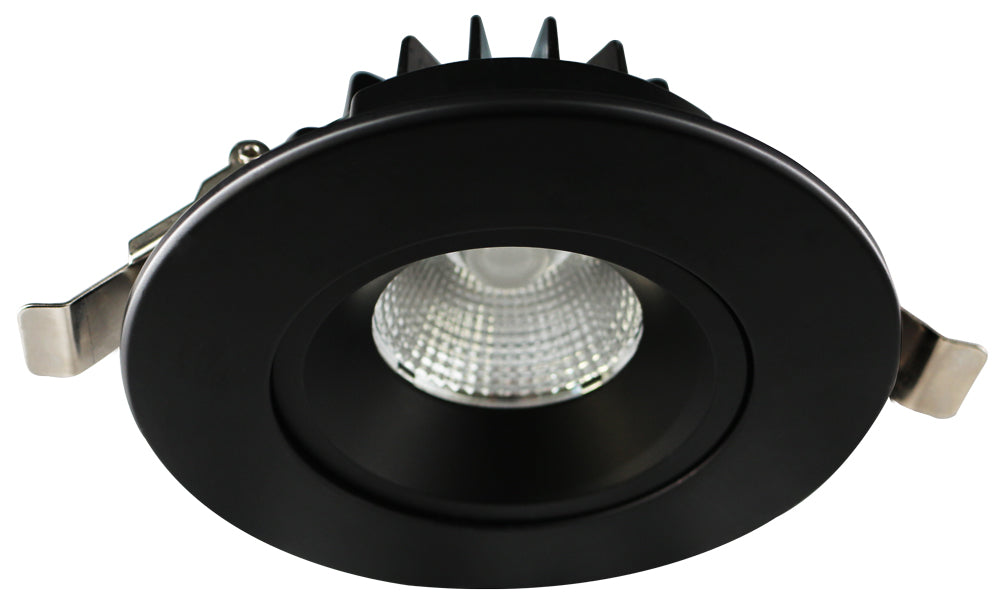

• Black (BK)

This product page supports both finish variants: AD-LED-4-S12W-DTW-WH-LREY and AD-LED-4-S12W-DTW-BK-LREY.

Ideal Applications

• Residential living spaces and kitchens
• Hospitality and retail environments
• Accent and wall-wash lighting
• Projects requiring warm dimming ambiance

Frequently Asked Questions

Is this fixture IC rated?

Yes. This fixture is Type IC rated and does not require a housing.

Can this be installed in wet locations?

Yes. It is approved for wet locations and air-tight installations.

Does this light dim like halogen?

Yes. The Dim to Warm technology smoothly shifts from 3000K down to 1800K, closely replicating halogen dimming behavior.

Is a junction box required?

No. The driver is integrated inside the connection box, eliminating the need for a separate junction box.
