Lotus LED Lights

Lotus 10" Commercial LED Downlight 22-40W Power Selectable 5CCT Color Tunable 120-347V | DL254-10-40W-M-A5C5-HO

In stock
SKU: DL254-10-40W-M-A5C5-HO
$116.25 CAD

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

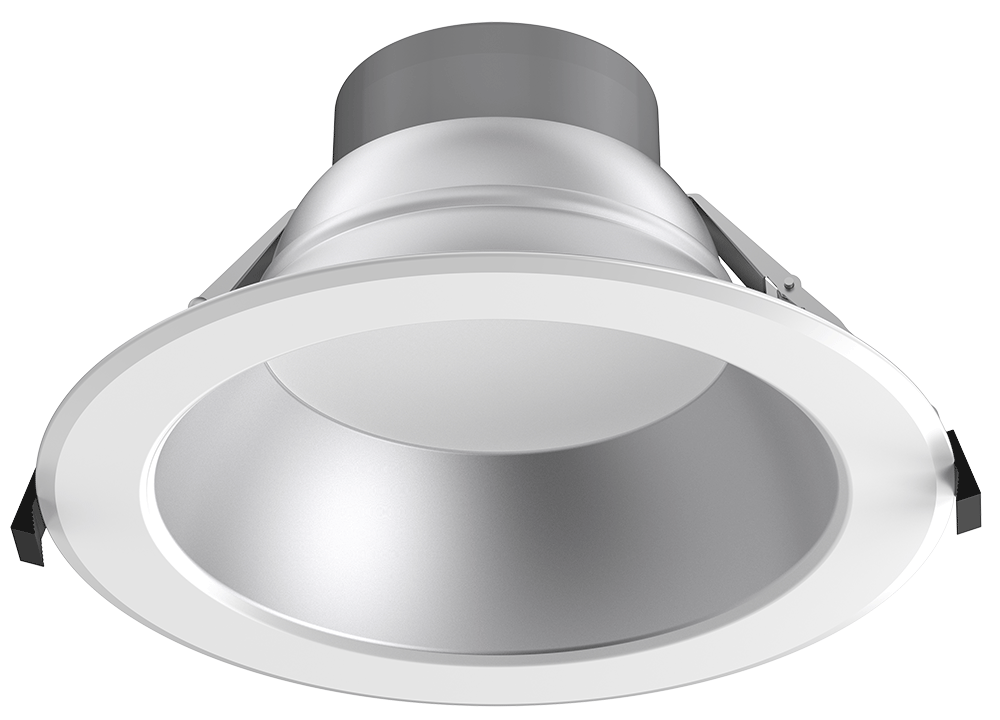

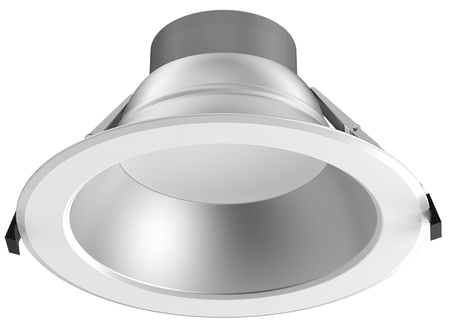

Lotus 10" Round Commercial LED Downlight (High Output)

Model: DL254-10-40W-M-A5C5-HO

The Lotus DL254 is an all-in-one 10" commercial recessed LED downlight designed for both retrofit and new construction. With field-selectable wattage and 5-CCT tuning, it delivers fast on-site flexibility for hospitality, healthcare, retail/shopping malls, offices, and exterior soffits.

Key Features

  • 5 CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
  • 5 wattage selectable: 22W / 26W / 30W / 35W / 40W
  • High output performance: 2240–4360 lumens (varies by CCT & wattage setting)
  • Universal input voltage: 120–347V AC (50/60 Hz)
  • 0–10V dimming: 5%–100%
  • Low-glare optics: regressed design for comfortable illumination
  • Ratings: Type IC, air-tight, wet location

Performance & Electrical

  • Beam Angle: 90°
  • CRI: 80
  • Lifetime: 70% light output at 50,000 hours
  • Operating Temp: -20°C to +40°C (-4°F to +104°F)
  • Certification: cETLus
  • Warranty: 5 years

Dimensions

  • Outer Diameter (OD): 11 1/2"
  • Inner Diameter (ID): 8 7/8"
  • Depth / Ceiling Space Needed: 5 3/4"
  • Regressed Depth: 2 1/2"
  • Cut-Out: 9" to 10"

Trim Options

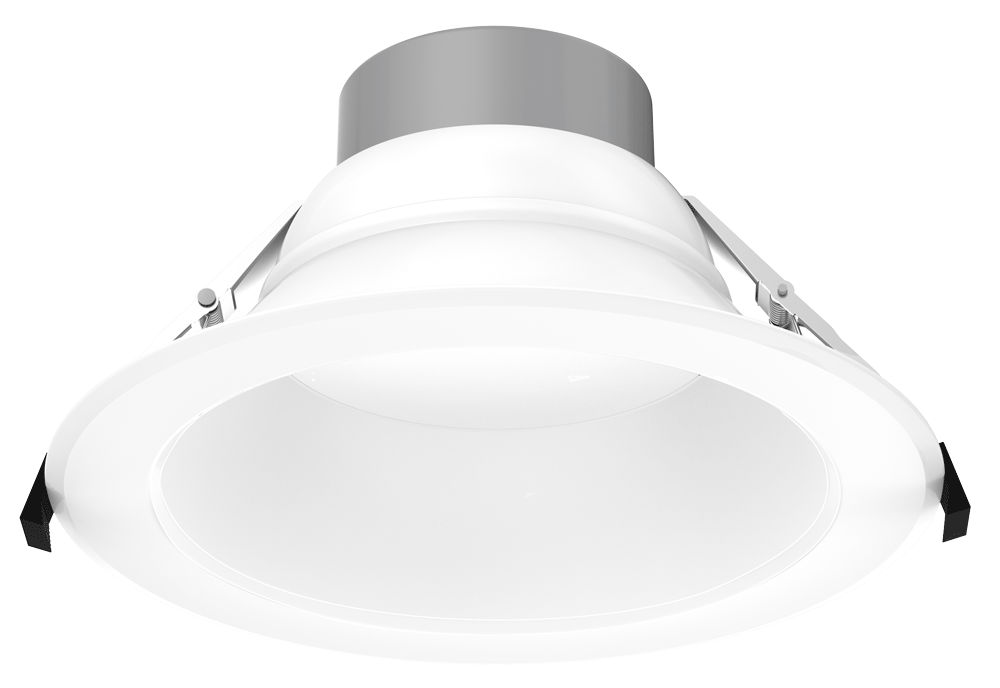

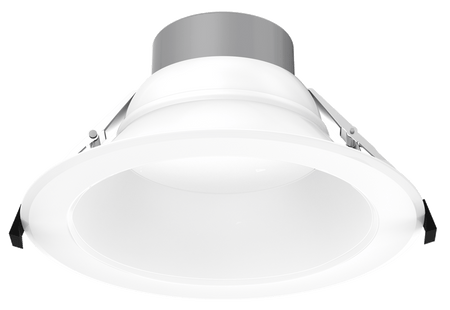

  • All White
  • White Trim + Silver (Alzak) Reflector

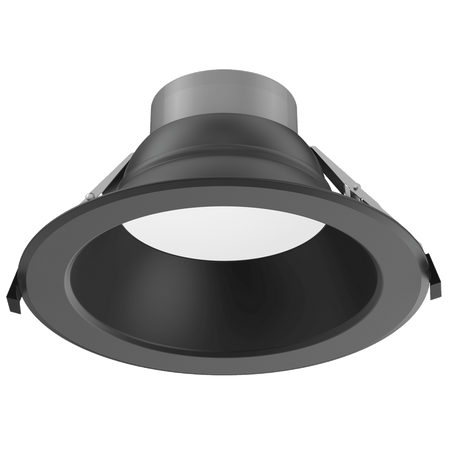

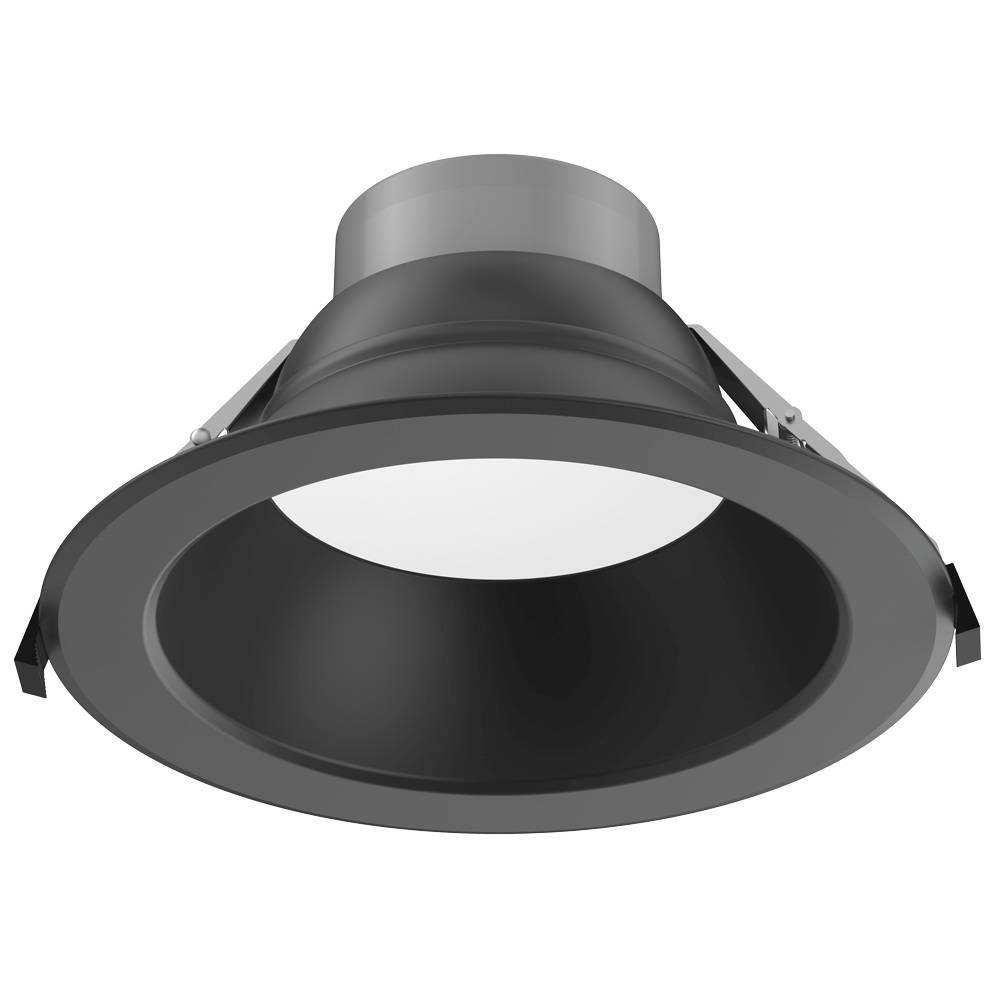

  • All Black

Accessories (Sold Separately)

  • T-bar mounting plate: LBL-MP-C4-10-TBAR
  • Goof ring (round, white): GR10-14 (ID 10 1/2" OD 14"), GR10-16 (ID 10 1/2" OD 16")
  • Goof ring (square, white): GS10-14 (ID 10 1/2" OD 14"), GS10-16 (ID 10 1/2" OD 16")
  • Emergency driver (8W, 120–347V input): BLD-HM08D-YYY

Please note: junction box is not included.
