Bulldog Z-Wave Plus Smart Valve Robot (Retrofit Edition)

The EcoNet Controls Bulldog EVC200-HC2LXL is the industry standard for Z-Wave leak protection. It transforms your existing manual water shutoff into a smart, motorized valve that integrates seamlessly with your smart home hub.

Designed with a High-Torque Motor (~15Nm), the Bulldog is engineered to turn even the stiffest, oldest valves that other smart actuators fail to budge. It installs in minutes over your existing plumbing—no pipe cutting required.

Hub Required: Z-Wave Plus

Why choose the Bulldog Z-Wave Robot?

• Universal Retrofit Fitment: The included HC2LXL Mounting Kit features adjustable brackets to fit standard 1/2", 3/4", 1", 1.25", and 1.5" pipes. One kit covers almost every residential scenario.
• Z-Wave Repeater: As a plug-in device, it acts as a signal repeater, strengthening your Z-Wave mesh network for other devices like locks and sensors.
• Local Automation: When used with a local-processing hub (like Hubitat or Home Assistant), your leak protection runs 100% offline, ensuring the water turns off even if the internet is down.
• Jam-Proof Torque: Delivers ~11lb-ft of torque with "Intelligent Stroke Control" to power through mineral buildup on older valves.

Installation & Compatibility

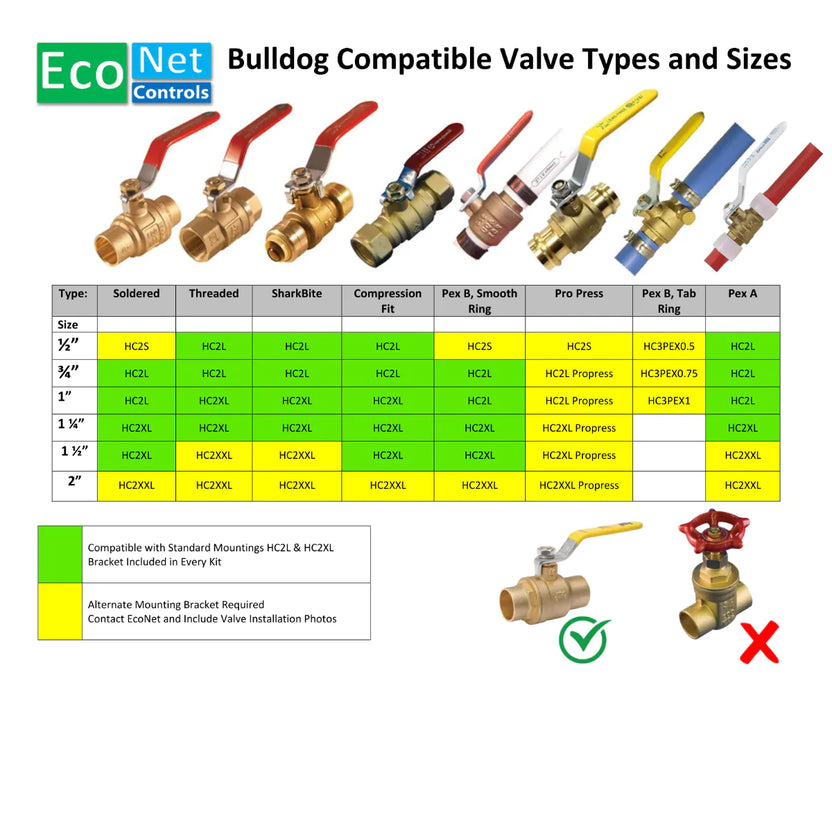

Valve Type: Requires a Quarter-Turn Ball Valve (Lever Handle).
Note: Not compatible with Gate Valves (round wheel handles).

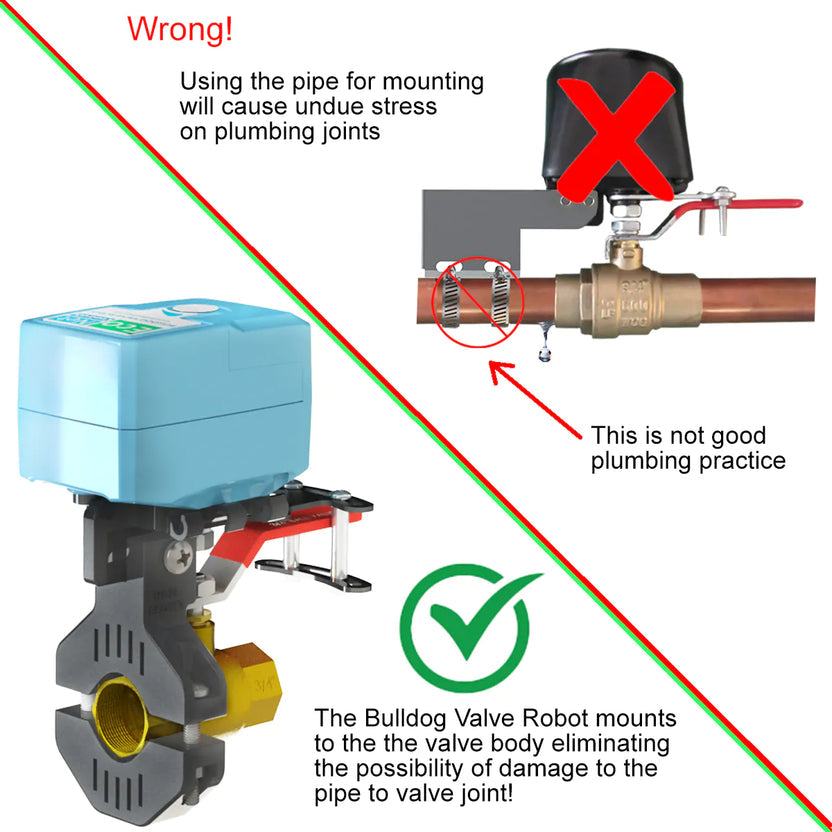

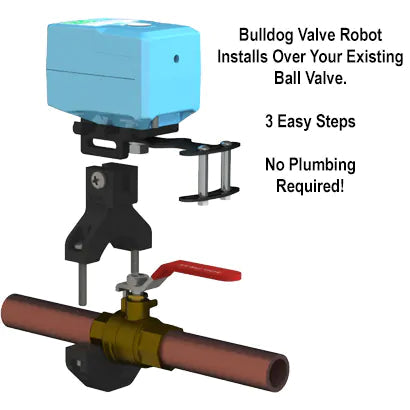

Installation: Clamps over the valve body using a standard Phillips screwdriver. The robot arm engages the valve handle to turn it physically.

What’s Included

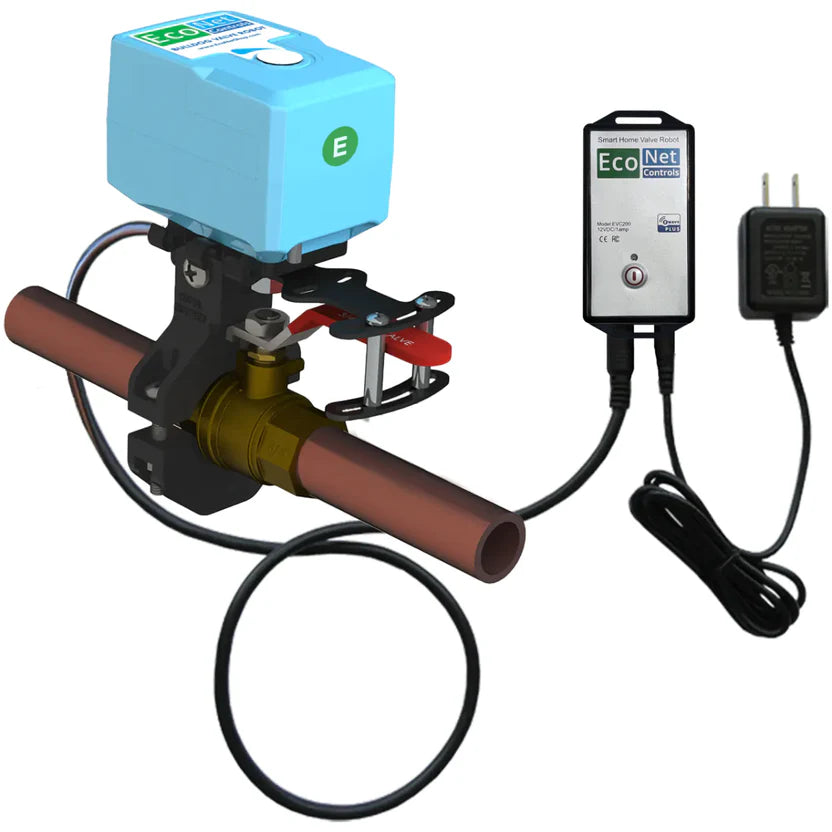

• 1 × Bulldog Valve Robot (EVC200)
• 1 × Universal Mounting Kit (HC2LXL) (Fits 1/2" to 1.5" valves)
• 1 × AC Power Adapter (12V DC)
• Mounting Hardware & Quick Start Guide
• Note: Leak sensors are NOT included. Use Z-Wave sensors compatible with your hub.

Technical Specifications

• Protocol: Z-Wave Plus (908.42 MHz - North America)
• Torque: ~15Nm (11 lbf)
• Stroke Time: ~18 seconds (Prevents water hammer)
• Power: 12V DC (Adapter included). Compatible with Battery Backup (BB3K).
• Manual Override: Clutch release button allows manual valve operation during power outages.

FAQ

Will this fit my 1-inch valve?
Yes. This kit is "Universal" and includes brackets specifically designed to handle larger 1" and 1.25" valves, as well as standard 1/2" and 3/4" pipes.

Can I use this without a hub?
No. You cannot control this device with a phone app unless it is paired to a Z-Wave Hub.

Does it detect leaks?
The robot itself is an actuator (it turns the valve). To detect leaks, you must pair separate Z-Wave leak sensors (like Zooz, Aeotec, or Ring) to your hub and create an automation rule (e.g., "If Leak Detected, Turn On Valve Robot").
