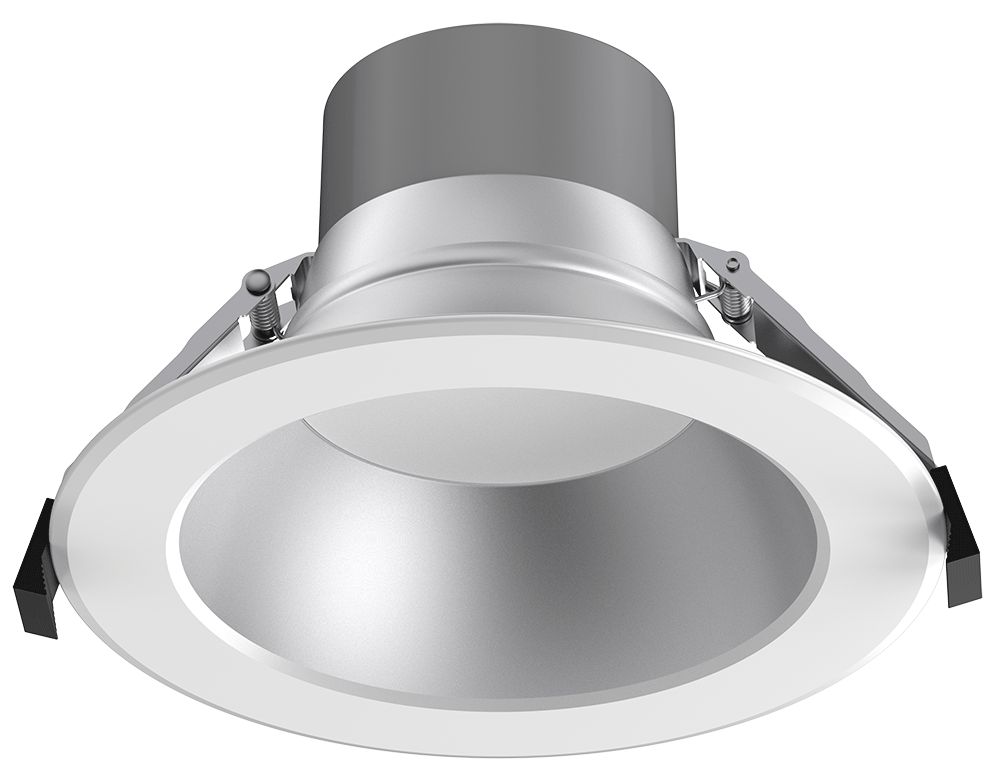

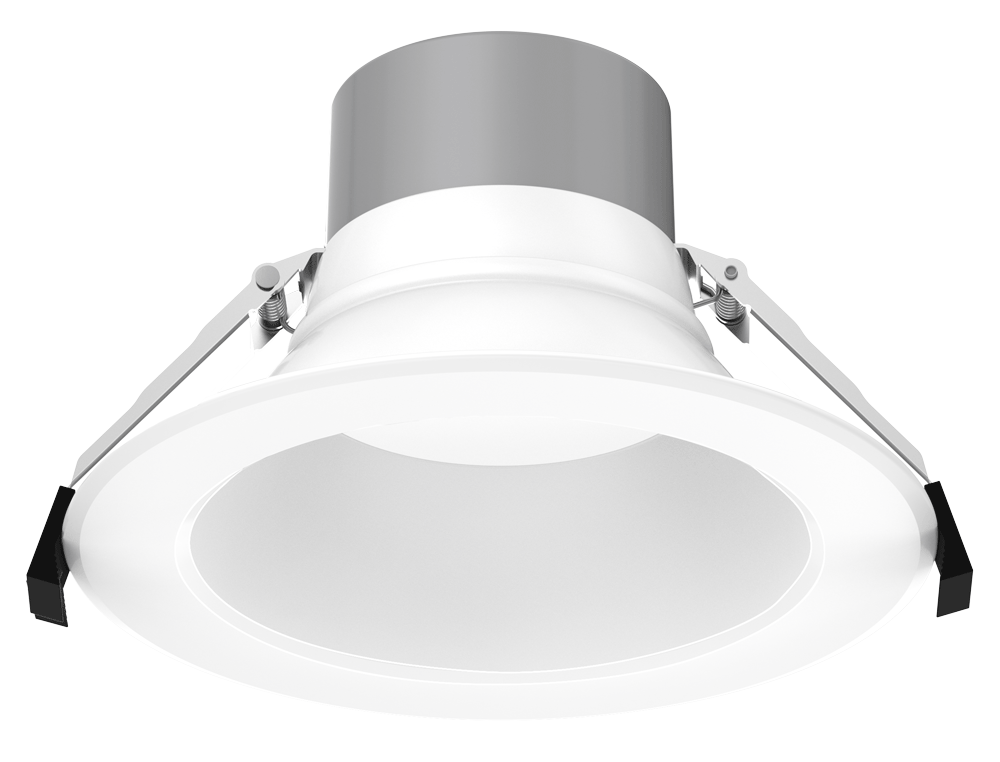

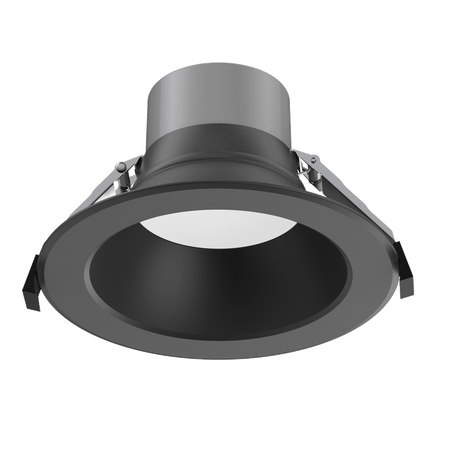

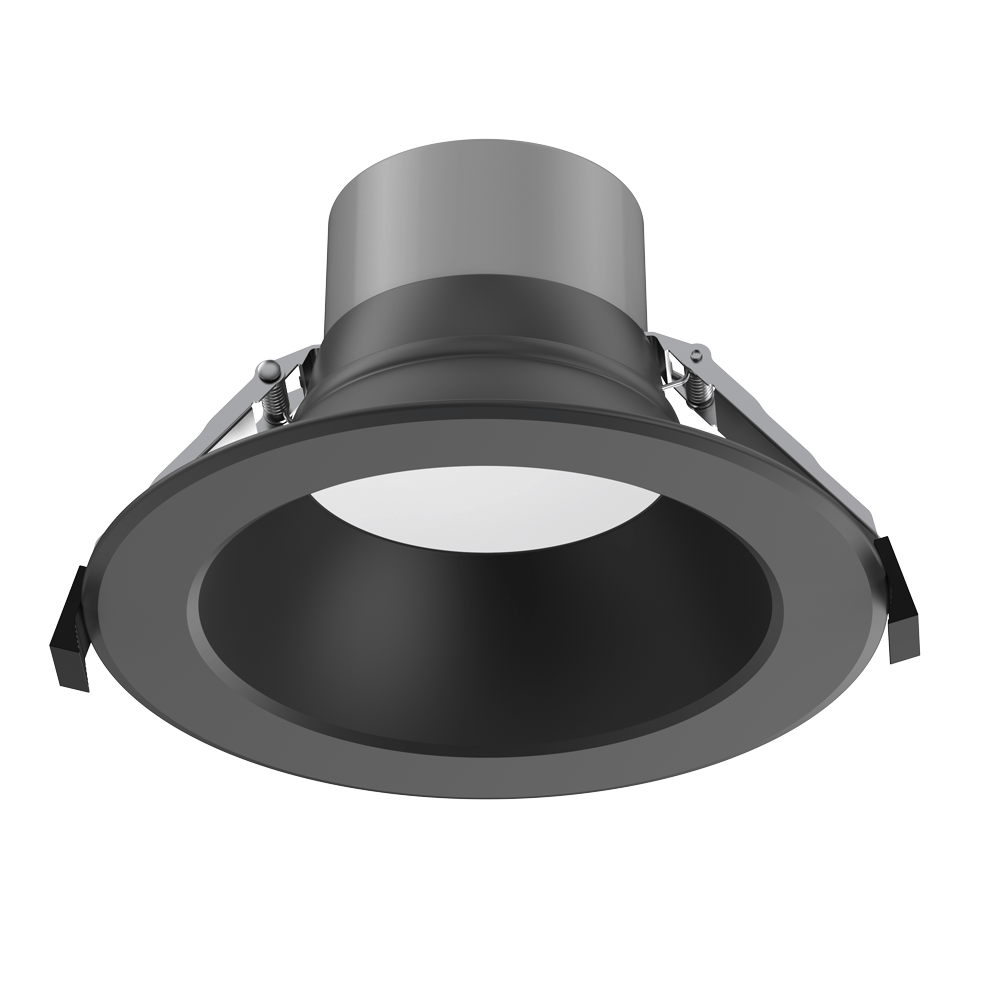

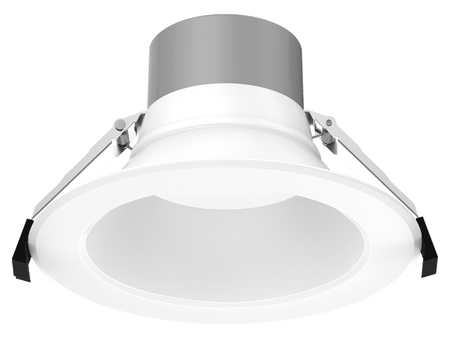

6" Round Commercial 5 CCT & 5 Watt Selectable | DL254-6-30W-M-A5C5-HO

Overview

The Lotus LED 6-inch round commercial downlight is an all-in-one architectural-spec solution engineered for both retrofit and new construction projects. Featuring regressed optics for significantly reduced glare, this high-output luminaire is ideal for demanding environments such as hospitality, healthcare, retail, and office spaces.

Key Features

• 5CCT & 5 Wattage Selectable: Field-adjustable settings allow for 5 different color temperatures and 5 wattage levels, providing ultimate on-site flexibility.
• Universal Voltage: Designed for professional installations with a wide 120V-347V AC input range.
• IC Rated & Air-Tight: Contractor-grade construction approved for direct contact with insulation and certified air-tight.
• Regressed Optics: Deep 2-inch regressed design ensures low glare and high visual comfort.
• Wet Location Rated: Durable design suitable for diverse applications, including exterior soffits and commercial recessed ceilings.

Technical Specifications

• Power Levels: Selectable 12W, 16W, 22W, 26W, or 30W
• Light Output: 1310 lm to 3450 lm (depending on CCT and Wattage)
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
• Input Voltage: 120V-347V AC 50/60 Hz
• Dimming: 0-10V (5% - 100%)
• CRI: 80
• Beam Angle: 85°
• Dimensions: ID 6", OD 8 1/4", Depth 4 3/4"
• Cut Out: 6" to 7"
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus
• Warranty: 5 Year
