Overview

Need to highlight walls, artwork or sloped ceilings with a clean 4" pot light that still works in Canadian insulated ceilings? The Lotus 4" Round Venus Adjustable series is a 12W gimbal recessed LED that gives you a tight 38° beam, 20° tilt and full 360° rotation for precise aiming.

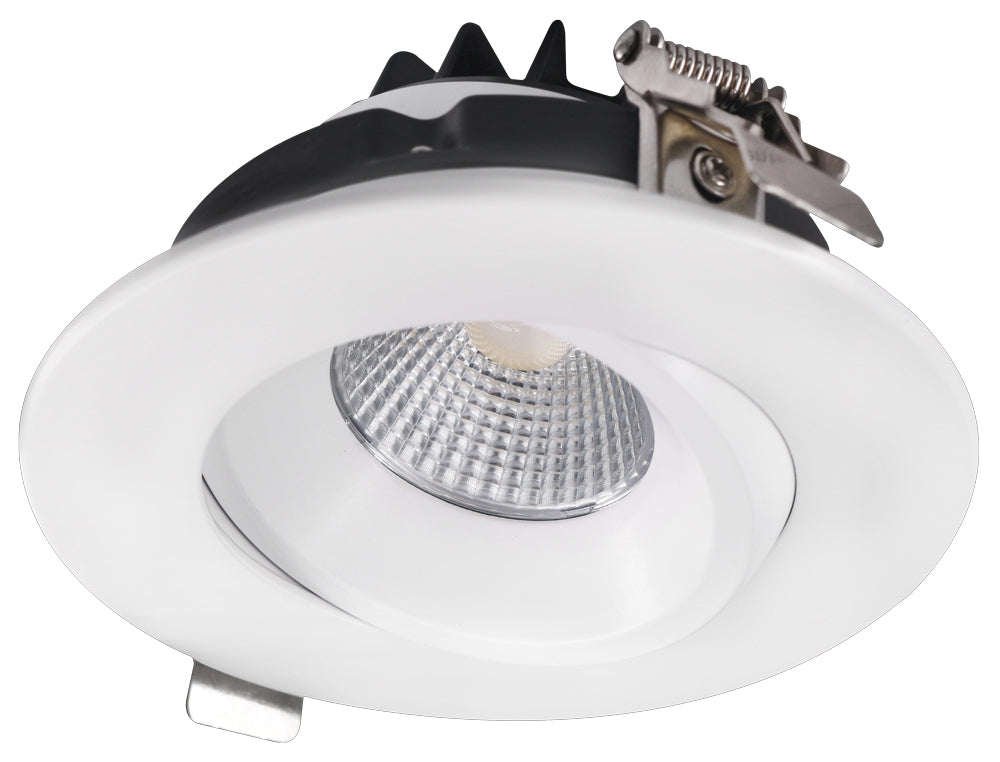

This 5CCT white trim model (AD-LED-4-S12W-5CCT-WH-LREY) lets you choose colour temperature on site from 2700K to 5000K, is Type IC, wet-location and airtight rated, and delivers up to 920 lumens with CRI 90+ for true colour rendering.

Key Features

• Adjustable gimbal beam: 4" round recessed gimbal with a 38° beam, adjustable 20° in any direction with 360° rotation to highlight walls, artwork or sloped ceilings.
• 5CCT selectable: Set each fixture to 2700K, 3000K, 3500K, 4000K or 5000K so you can tune warmth vs brightness per room without changing SKUs.
• High CRI 90+: Makes finishes, countertops and merchandise look natural and accurate, which is critical for kitchens, retail and design-focused projects.
• Type IC, wet & airtight: Approved for insulated ceilings, wet locations and airtight installs – ideal for Canadian showers, bathrooms and covered entries.
• Canless, slim profile: 2 1/4" fixture depth with driver in the connection box; needs only about 2 1/2" ceiling clearance and no traditional housing.
• 12W, up to 920 lumens: Replaces roughly a 90W halogen, with 780–910 lm depending on CCT, giving plenty of punch from a 4" opening.
• 120V TRIAC dimmable: Standard driver is 120V AC, TRIAC dimmable 5–100% on most compatible CL dimmers. Optional 120–347V 0–10V driver available for commercial jobs.
• Long life & warranty: Rated 50,000 hours (L70) with a 10-year residential / 5-year commercial warranty from Lotus LED Lights.

Canadian Use Cases

• Sloped ceilings where you want to aim light down to the floor rather than across the room.
• Feature walls, fireplaces and artwork where a 38° beam gives defined highlights.
• Showers, tubs and bathrooms needing a wet-rated, IC and airtight recessed fixture.
• Entryways and porches that see snow, moisture and big temperature swings.
• Retail displays, bars and restaurants that benefit from CRI 90+ and adjustable beam direction.

Technical Details (AD-LED-4-S12W-5CCT-WH-LREY)

• Model family: AD-LED-4-S12W-xx-LREY (4" Round Venus Adjustable)
• Specific model: AD-LED-4-S12W-5CCT-WH-LREY – 5CCT selectable, white trim
• Wattage: 12 W
• Input voltage: 120V AC, 50/60 Hz
• Dimming: 120V TRIAC dimmable down to ~5% (optional 120–347V, 0–10V dimming driver available)
• Colour temperatures (5CCT): 2700K, 3000K, 3500K, 4000K, 5000K
• Light output: approx. 780 / 820 / 890 / 920 / 910 lumens (per selected CCT)
• Beam angle: 38° with 20° tilt each direction and 360° rotation
• CRI: 90+
• Halogen equivalent: ~90 W
• Operating temperature: -20°C to +40°C (approx. -4°F to +104°F)
• Location rating: Type IC, wet location, airtight, IP54
• Certifications: cETLus, Energy Star, Title 20 / 24 compliant
• Dimensions: inside diameter 4"; outside diameter 5"; depth ~2 1/4"
• Ceiling cutout: 4 1/4" to 4 1/2"
• Rated life: 50,000 hours (L70)

What’s Included

• One 4" round Venus adjustable recessed LED fixture – white trim, 5CCT selectable
• Matched 120V TRIAC dimmable driver in integrated connection box
• Pre-installed spring clips for tool-free ceiling mounting

Common Questions

• Do I need a recessed can or housing?
  No. This is a canless, Type IC fixture. It is designed to be installed directly into the drywall ceiling with the included spring clips and can be in contact with insulation when wired according to Canadian electrical code.
• Where is the CCT switch located?
  The 5CCT selector is located on the fixture/driver assembly (per Lotus spec). Set your colour temperature before finalizing the install so you do not need to open up the ceiling later.
• Can I use this in a shower?
  Yes. The Venus adjustable 5CCT is wet-location rated and airtight. Always follow local code requirements for bathroom and shower lighting.
• What dimmers work best?
  Use a high-quality 120V TRIAC / CL LED dimmer for smooth 5–100% dimming. For large commercial dimming systems or 120–347V input, use the optional 0–10V dimming driver from Lotus.
