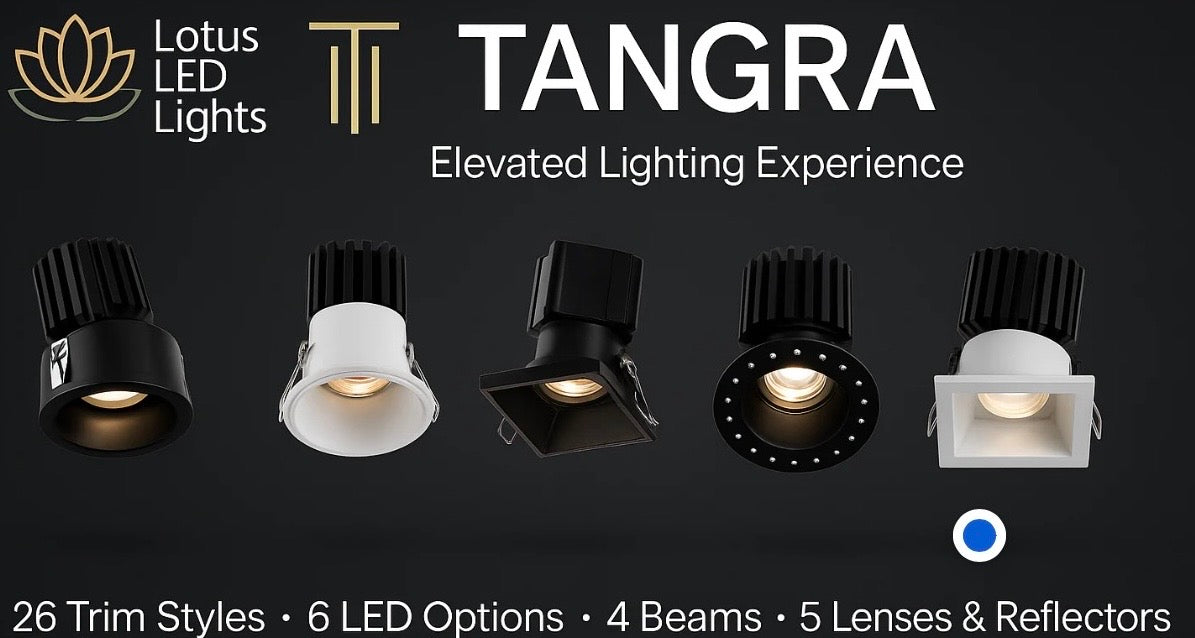

Tangra by Lotus LED (Canada): 3″ Modular Recessed System Guide
Answer Card
- What: Modular 3″ recessed platform with trims, optics and LED engines for clean ceilings.
- Where: Homes and light commercial spaces; indoor, damp and select wet locations (confirm per trim).
- Control/Power: Triac 120 V or 0–10 V 120–347 V drivers (confirm per SKU).
- Listings: cETLus; Type IC; Airtight; Open Plenum (verify per family/spec sheet).
- Install: Choose beam (20°–60°), trim/regress, then driver; maintain vapour barrier.
- Buy in Canada: Simply Secured retail; Trade & Dealers: apply at SimplyControlled.ca.
Why / Value
The Tangra system standardizes cutout, optics and LED options so contractors can mix trims (flat, deep-regressed, gimbal, sloped) and maintain a consistent ceiling aesthetic with serviceable drivers. For broader recessed options from the same manufacturer, see our Lotus LED Lights collection.
Series / Map
Popular Tangra trim families (examples):
- Gimbal Round: Flat Wide (L3G-RFW), Recessed Wide (L3G-RRW), Sloped Wide/Thin (L3G-RSW / L3G-RST), Invisible Flangeless (L3G-RIF).
- Gimbal Square: Sloped Wide/Thin (L3G-SSW / L3G-SST), Invisible Trim (L3G-SIT), Recessed Wide/Thin (L3G-SRW / L3G-SRT).
- Fixed Round: Recessed Wide/Thin (L3F-RRW / L3F-RRT), Deep Regressed Wide/Thin (L3F-RDW / L3F-RDT), Invisible/Flangeless variants.
- Fixed Square: Recessed or Deep Regressed (e.g., L3F-SRW / L3F-SDW), including Invisible/Flangeless.
Notes: Not all finishes are offered on all bases (e.g., Alzak / white-black duo / bronze are model-dependent). Always confirm on the spec sheet.
Key Specs
| Category | Details (confirm per trim/engine) |
|---|---|
| Voltage / Driver | Triac 120 V or 0–10 V 120–347 V drivers; 11/15 W selectable output (model-dependent). |
| CCT / CRI | 3000 K fixed (CRI95/98), 5CCT (CRI95/98), DTW 3000–1800 K (CRI95), or 4CCT+DTW (CRI90) options. |
| Optics / Beams | Reflector (clear / semi-frosted / frosted) or lens (white / black). Common beams 20°/24°/36°/50°; some families offer 60°. |
| Ingress / Listings | Indoor/damp with select wet-location trims. cETLus; Type IC; Airtight; Open Plenum—verify per family. |
| Construction | Solid cast aluminium trims; flanged, trimless (invisible), deep regress and gimbal variants. |
Use Cases & Pairings
- Even ambient grids in kitchens and living areas; deep regress for glare control over islands or desks.
- Accent art or architectural features with 20–24° beams; use 36–50° for task and general lighting.
- Retrofit apartments/condos with unified trims and drivers; pair with Lutron Caséta controls for scene-based dimming.
Design & Install Tips
- Driver choice: Triac 120 V for simple room scenes; 0–10 V drivers when you need longer runs, centralized control or 347 V supply.
- Beam selection: ~50° ambient, ~36° task, ~20–24° accent (verify against IES files for mounting height).
- Ceiling & vapour barrier: Follow trim-specific instructions; maintain air/vapour barriers and IC clearances.
- Ontario ESA note: Keep labels/documentation; ensure dimmer/driver ratings match the Canadian installation.
- Value option for retrofits: see our RENO Lighting range.
Pricing & Scopes
Request a quote with trim style, finish, optic/beam, LED option (e.g., 5C95 vs 3K98), and driver type (Triac 120 V or 0–10 V 120–347 V). Many Tangra items ship quickly from Canada; typical fulfillment is fast—confirm current availability at order.
Direct Links (Collection & SKUs)
Shop the Tangra by Lotus LED Collection
- Tangra 4″ Gimbal Square Sloped Wide Trim — White (L3G-SSW-WH) —
- Tangra 4″ Gimbal Square Sloped Wide Trim — Bronze (L3G-SSW-BR) —
- Tangra 4″ Gimbal Square Sloped Wide Trim — Black (L3G-SSW-BK) —
- Tangra 3″ Gimbal Square Invisible Trim — White (L3G-SIT-WH) —
- Tangra 3″ Gimbal Square Invisible Trim — Black (L3G-SIT-BK) —
- Tangra 3″ Gimbal Round Invisible Flangeless — White (L3G-RIF-WH) —
- Tangra 4″ Gimbal Round Sloped Wide — White (L3G-RSW-WH) —
- Tangra 4″ Gimbal Round Sloped Wide — Bronze (L3G-RSW-BR) —
Featured Snippet Checklist
- Power: Triac 120 V or 0–10 V 120–347 V (confirm per SKU).
- Output: 11/15 W selectable; high-CRI options up to CRI 98.
- Beams: 20°–60° depending on optic; verify IES.
- Ratings: cETLus; IC/AT; Open Plenum; damp/wet per trim.
- Install: maintain vapour barrier; use compatible dimmers; follow provincial code.
FAQs
- Are all Tangra trims wet-rated?
- Wet suitability varies by family/trim. Confirm on the spec sheet for the exact model.
- What beam should I choose for a 2.7 m ceiling?
- Use ~50° for ambient, ~36° for task, ~20–24° for accent; confirm with IES files for your mounting height.
- Does Tangra support 347 V?
- Yes—select 0–10 V drivers rated 120–347 V where specified for the chosen trim/engine; verify driver SKU.
- How are drivers selected?
- Match control method (Triac vs 0–10 V), supply voltage (incl. 347 V), and required wattage (11/15 W selectable where applicable). Confirm on the driver/family spec sheet.
- How do I become a dealer in Canada?
- Apply at our B2B portal: SimplyControlled.ca for dealer/wholesale pricing.
Compliance Footnote
Specifications and ratings (cETLus/CSA, Type IC/AT, IP/wet) vary by Tangra family. Always confirm on the latest spec sheet. For Ontario, retain documentation for ESA inspection as applicable.
