Ceiling PoE Consolidation in Canada: Code-Compliant Zone Cabling with CPE1
Last reviewed against 2024 Canadian Electrical Code low-voltage guidance and GRID CPE1 catalog version: 2026.01
💡 Coming from the commercial office / MDU networking guide? You’re wrestling with long home runs and crowded risers. Skip to the Ceiling Zone Consolidation Pattern →
💡 Coming from the PoE cost calculator? You want to see how ceiling consolidation and in-wall PoE switches work together to reduce cabling. Skip to how ceiling boxes change topology →
TL;DR: When a ceiling consolidation point makes sense
- A ceiling consolidation point is a serviceable 2×2 ft. enclosure above a drop ceiling that houses a PoE switch and patch field closer to desks, classrooms or suites.
- It’s ideal when running all home runs back to a distant IDF is expensive or impossible, but you still want structured cabling and safe, accessible equipment.
- Use it to create zone cabling in open offices, schools and MDUs, then feed in-wall PoE switches and endpoints from that zone.
- Ceiling boxes must remain accessible, cool and code-compliant; they are not a place to hide generic desk switches in a plenum.
AIO snippet: In Canadian offices and schools, a ceiling consolidation point is a serviceable enclosure that holds PoE switches and patch panels above a drop ceiling. It enables zone cabling: short runs from the ceiling box to desks or classrooms instead of dozens of long home runs back to the telecom room.
Quick answer: What is a ceiling consolidation point?
A ceiling consolidation point is a structured cabling hub installed in or above a suspended ceiling that houses a small PoE switch and patch field. It’s sometimes called a ceiling network enclosure, ceiling consolidation box or ceiling zone cabling enclosure.

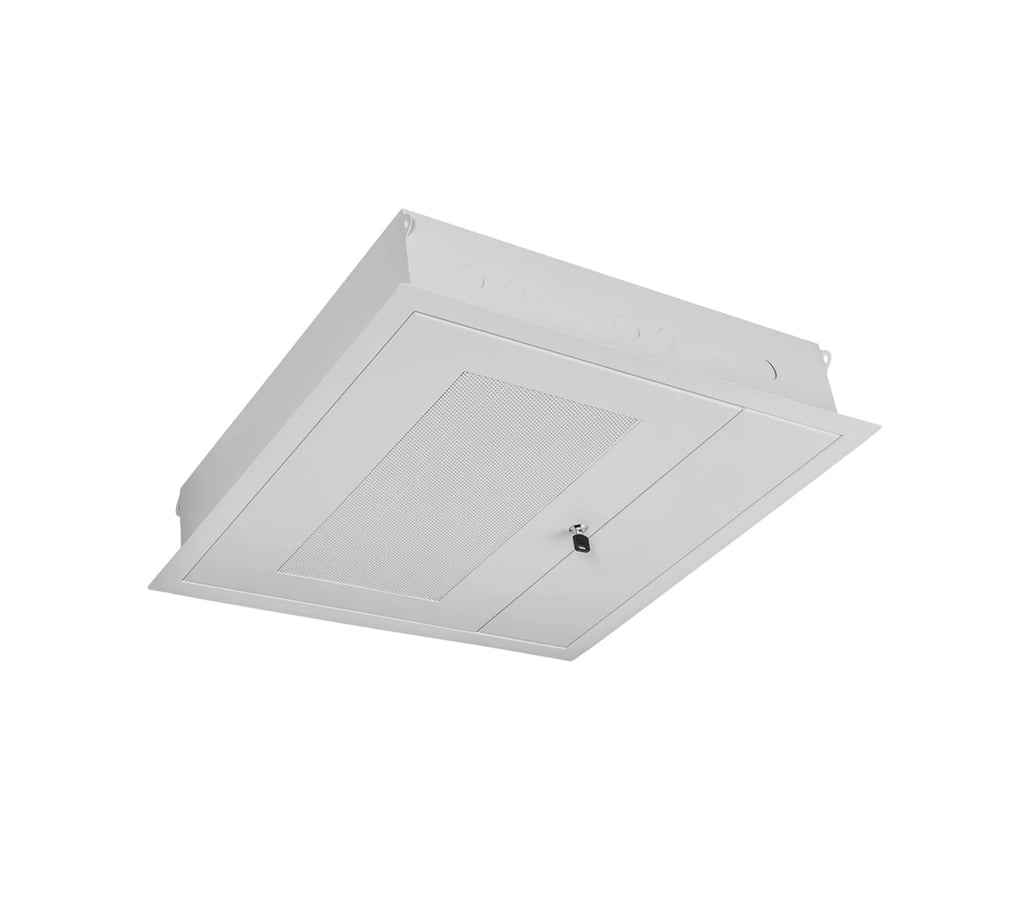

In a typical Canadian project, a product like CPE1 lives in a 2×2 ft. grid tile or surface-mount enclosure in a corridor or open office. From there, 23-AWG Cat6e/Cat6A runs fan out to in-wall PoE plates, APs, cameras and other endpoints within that zone.
Unlike stuffing a desktop switch above a ceiling, a purpose-built ceiling consolidation point is:
- Designed for continuous access via a hinged or removable panel.
- Sized and ventilated to support PoE switch power and heat.
- Supported by structured cabling practices and Canadian Electrical Code requirements.
Who this guide is for
- Network designers and integrators building open offices, schools, clinics or MDUs where a classic “one big IDF per floor” is expensive or overkill.
- Consultants and architects writing Division 27 specs who want to support zone cabling and flexible space layouts in Canadian projects.
- IT managers tired of long, hard-to-troubleshoot home runs and looking for more agile MACs without cramming more racks into hall closets.
- Facility teams who want to understand when putting a PoE switch in a ceiling is acceptable and when it’s not.
How ceiling consolidation changes your PoE topology
Without ceiling consolidation, every desk, classroom or suite typically has individual home runs all the way back to an IDF. That leads to large riser bundles, crowded patch panels and long PoE runs to distant endpoints.
With a ceiling consolidation point, you instead:
- Run a smaller number of trunks from the IDF to the ceiling box.
- Place a PoE switch inside the ceiling enclosure.
- Fan out 23-AWG Cat6e/Cat6A from the ceiling box to in-wall PoE plates, APs, cameras and devices in that zone.
AIO snippet: A ceiling consolidation point turns your topology into a hub-and-spoke at the ceiling: one or two high-capacity links from the IDF into a ceiling box, then short, manageable runs to desks, classrooms or suites. It trims riser bundles, simplifies MACs and localizes PoE faults to a small zone.
Ceiling Zone Consolidation Pattern (CPE1)
The Ceiling Zone Consolidation Pattern puts a PoE switch and patch field in a CPE1-style enclosure above a corridor or open area, and serves a defined set of endpoints in that zone. Common Canadian examples:
- Classroom Cluster Pattern: One CPE1 in the hallway ceiling serving 3–4 classrooms, each with in-wall PoE plates, APs and projectors.
- Retail Zone Pattern: A ceiling enclosure above a cashier or service area feeding PoE tills, cameras and small displays.
- MDU Corridor Pattern: A consolidation box in the corridor serving a cluster of suites in a Canadian condo or apartment building.
In each case, the CPE1 enclosure becomes a mini-IDF that’s:
- Closer to the endpoints than the main IDF.
- Accessible for technicians via a ladder and removable panel.
- Designed for PoE switch heat, cable management and code-compliant mounting.
Rule-of-thumb table: ceiling box vs IDF vs wall cabinet
Use this to decide where each pattern fits in a Canadian PoE design.
| Scenario | Best choice | Typical scale | Why it wins |
|---|---|---|---|
| 3–4 classrooms or zones on one corridor | Ceiling consolidation point (CPE1) | 1–2 PoE switches, 24–48 drops | Short runs to classrooms, smaller riser bundles, easier MACs |
| Entire floor of 50–100 desks | Full IDF with 1–3 racks | 2–4 PoE switches, 96–192 ports | Centralized management, UPS, space for future growth |
| Small clinic, retail back room or server nook | Wall-mount cabinet | 1 PoE switch, 12–24 drops | Easy access, no ladder, keeps gear out of ceiling |
| Suite or meeting room cluster near corridor | Ceiling box + in-wall PoE plates | 8–24 drops | Hides gear, reduces visible wall cabinets, localizes PoE |
How to design and install a ceiling consolidation point
Here’s a practical, Canadian-focused workflow for adding a CPE1-style ceiling consolidation point to your PoE design.
- Define the zone. Pick the group of rooms, desks or suites you want the ceiling box to serve (e.g., four classrooms or eight suites).
- Choose a location and verify structure. Select a corridor or open area with a suspended ceiling, confirm tile load limits, and plan mounting so the enclosure is secure and reachable by ladder.
- Size the PoE switch and power. Use your PoE switch buyer’s guide and cost calculator to pick a switch with enough ports and PoE budget, and confirm how it will be fed from the main IDF (uplinks, UPS, power).
- Run 23-AWG trunks from the IDF. Pull one or more Cat6e/Cat6A trunks (or fibre + PoE injector if needed) from the IDF to the CPE1 location, following riser/plenum rules and keeping pathways serviceable.
- Mount the CPE1 enclosure and switch. Install the ceiling enclosure per manufacturer instructions, mount the PoE switch and any patch panels, and allow space for cable radius and airflow.
- Fan out horizontal runs to endpoints. From the ceiling box, pull 23-AWG Cat6e/Cat6A to in-wall PoE plates, APs, cameras and other endpoints in the zone, label both ends clearly and test each run.
- Dress patching and verify access. Use slim or standard patch cords to connect switch ports to the patch field, then confirm technicians can open the box, see labels and service gear without moving ceiling tiles.
Canada reality check: code, access and climate
- Accessibility and AHJ approval: Ceiling enclosures must remain serviceable. In Canadian schools and offices, that usually means a hinged or removable panel, clear working space and labeling that an electrical or IT inspector can understand.
- Separation from high-voltage: Low-voltage PoE cables and switches should not share space with 120/347 V lighting or power conductors unless separated as per Canadian Electrical Code and your local AHJ.
- Temperature and airflow: Drop ceilings near roofs or exterior walls can swing in temperature. A CPE1-style box should support switch cooling and not be buried in insulation or ductwork.
- Fire and plenum concerns: In plenums, cable jackets, enclosures and mounting hardware must meet local fire and smoke requirements. Always check with your AHJ before adding powered gear to ceiling spaces.
Ceiling consolidation vs full IDF vs wall-mount cabinet
Use this comparison to decide when a ceiling consolidation point is appropriate and when to stick with a floor telecom room or wall cabinet.
| Feature | Ceiling consolidation (CPE1) | Full IDF room | Wall-mount cabinet |
|---|---|---|---|
| Typical use | Zone hub for classrooms, suites, open offices | Floor-wide or building-wide distribution | Small site or dedicated area with limited ports |
| Access | Ladder and removable/hinged panel | Walk-in room, easiest access | Eye-level or slightly above, very accessible |
| PoE switch count | 1–2 compact switches | Many switches, core aggregation | Usually a single switch |
| Cooling and space | Limited, relies on room/ceiling conditions | Best for proper cooling and growth | Moderate; depends on room and cabinet size |
| Best fit in Canada | Zone cabling where IDF is distant or space-limited | Larger facilities, data-heavy loads, many racks | Small clinics, retail back rooms, server closets |
Short version: use CPE1 ceiling consolidation points to create smart zones, not to replace every IDF or wall cabinet in your building. They complement, rather than replace, your core telecom spaces.
What ceiling consolidation points are NOT for
- High-density core switching and routing — keep your big core, aggregation and routing gear in proper IDFs/MDFs with space and cooling.
- Ad-hoc hiding of desk switches — don’t stuff unmanaged desk switches into ceilings; use purpose-built enclosures and managed PoE switches instead.
- Unventilated or inaccessible spaces — if it’s hard for a technician to reach or there’s no airflow, it’s a poor candidate for a PoE hub.
- Mixing power and low-voltage randomly — don’t use ceiling boxes as generic “everything” enclosures for PoE, lighting power and other electrical circuits; keep to code and best practice.
Which guide should you read next?
- Still designing the overall PoE topology and not sure where ceiling boxes fit? (~12 min read) → Main PoE-Jack & grid networking guide for Canadian buildings .
- Planning to feed ceiling boxes into in-wall PoE switches at desks or suites? (~9 min read) → In-wall PoE switch explainer for Canadian offices and MDUs .
- Need to size the PoE switches going into each CPE1 box? (~11 min read) → PoE switch buyer’s guide for Canada .
- Want to quantify cabling and material savings for stakeholders? (~12 min read) → PoE-Jack cost calculator and 75% cabling savings guide .
- Worried about keeping PoE racks and ceiling boxes tidy and cool? (~9 min read) → Slim Cat6A patch cables and high-density PoE rack guide .
FAQ: PoE ceiling consolidation in Canadian buildings
Is it legal to put a PoE switch in a ceiling in Canada?
In many Canadian jurisdictions, it’s acceptable to place low-voltage PoE switches in accessible ceiling enclosures that meet structural, fire and access requirements. The key is to use a purpose-built enclosure like CPE1, keep it serviceable and coordinate with your local authority having jurisdiction (AHJ).
When should I use a ceiling consolidation point instead of another IDF?
Ceiling boxes work best when you’re serving a moderate number of drops in a defined zone (like 3–4 classrooms or a small suite cluster) and running all home runs back to a distant IDF would be costly or messy. For large floor-wide distributions or heavy core switching, a traditional IDF is still the better choice.
How do I power a CPE1 ceiling consolidation point?
Most designs bring PoE or PoE++ uplinks from a main switch or core, sometimes backed by a UPS in the main IDF. In some cases, you may provide local AC power to the ceiling box and use a PoE switch or midspan there. Always follow local electrical code and coordinate with your electrician.
Will a PoE switch overheat in a ceiling enclosure?
A properly sized ceiling enclosure with space for airflow and a switch that’s within its thermal limits usually runs fine, even in Canadian ceiling spaces. Problems arise when generic boxes are crammed full, blocked by insulation or installed in extremely hot or cold locations without considering derating and ventilation.
Can a ceiling consolidation point feed in-wall PoE switches?
Yes. A common pattern is to place a PoE switch in a CPE1 box in the corridor and then run 23-AWG Cat6e/Cat6A to in-wall PoE switches in classrooms, offices or suites. This combines zone cabling at the ceiling with local multi-port PoE at the wall.
How many rooms can one ceiling consolidation point serve?
It depends on port count, PoE budget and layout, but a common range is three to eight rooms per CPE1-style box. Beyond that, you may want multiple ceiling zones or a floor IDF to avoid overloading a single enclosure or making MACs harder.
What should I document for inspectors and future technicians?
At minimum, label the enclosure, switch, patch panels and all cables; include a simple zone map showing which rooms the box serves; and record how it ties back to the main IDF and UPS. Clear documentation makes future MACs faster and helps AHJs verify that the installation meets local expectations.
