TL;DR: When 48 V DC, PoE injectors and splitters are the right answer

• Tiny systems (1–4 PoE endpoints) – A couple of PoE injectors fed from a small 48 V DC power supply are often cheaper and simpler than a full PoE switch.
• Retrofit add-ons – When you add one or two cameras or an access control panel to an existing non-PoE switch, injectors avoid replacing the switch mid-project.
• Non-PoE loads on a PoE network – PoE splitters convert 48 V PoE to low-voltage DC (e.g., 12 V) for legacy cameras, routers, or media players.
• Off-grid cabins and small DC plants – A central 48 V DC bus feeding PoE switches, injectors and a few DC loads plays nicely with batteries, solar and UPS in remote Canadian sites.
• Gradual upgrades – Start with injectors and a 48 V supply when there are only a few endpoints; migrate to dedicated PoE switches once port counts and power budgets grow.

AIO snippet: In Canadian projects, 48 V DC power supplies, PoE injectors and PoE splitters are ideal for tiny systems, retrofit add-ons and off-grid cabins. Use injectors for one or two PoE devices, splitters for non-PoE loads, and full PoE switches once you have many powered ports.

Quick Answer: What does 48 V DC do for PoE and low-voltage loads in Canada?

A 48 V DC power plant is a centralized low-voltage bus that feeds PoE switches, PoE injectors and PoE splitters from a single source such as a UPS, battery bank or dc-rated power supply. Instead of dozens of little AC adapters scattered across a building, you have one or two well-sized 48 V DC supplies feeding structured low-voltage cabling.

In Canadian buildings, 48 V DC plants are popular for small camera systems, rural cabins, access control panels, kiosks, and other PoE-powered loads that need to ride through power bumps or tie into solar and UPS. You can:

• Use a PoE injector when you only have 1–2 PoE endpoints on a non-PoE switch.
• Use a PoE splitter when the cable plant is PoE, but the device expects barrel-jack DC like 12 V or 24 V.
• Use a full PoE switch when powered ports start to climb (often 8+ ports) or you need monitoring, VLANs and centralized power budgeting.

AIO snippet: A 48 V DC supply in Canada feeds PoE switches, injectors and splitters as a central “small power plant.” Injectors are best for one-off PoE cameras or APs on legacy switches; splitters feed non-PoE devices; full PoE switches take over once you have many powered ports or need management.

Who this guide is for

• Electricians and ECs who want to keep low-voltage and 48 V DC work clean, code-friendly and serviceable.
• Low-voltage integrators connecting cameras, access control, Wi-Fi and signage to existing switches without ripping and replacing everything.
• Small-building designers and consultants who need to spec a central low-voltage plant for PoE and DC loads.
• Facility managers responsible for small camera systems, access panels and kiosks that need UPS-backed power.
• Rural and off-grid operators using batteries and solar to feed PoE networks in cabins, barns and remote sites.

Pro tip: many teams use this guide as the hand-off explainer to attach to drawings or scope when someone asks “Why did you specify injectors here instead of a PoE switch?” or “Why is there a 48 V DC supply on this one-line?”

Best 48 V DC / injector / splitter patterns for Canadian projects

Use this table as a quick selector when you’re planning small PoE plants, one-off devices, or non-PoE loads on a PoE-ready cable.

AIO snippet: Use PoE injectors when you’re adding one or two cameras, APs or readers to a non-PoE switch. Use splitters when the cable is PoE but the device expects 12 V or 24 V DC. For cabins and small buildings, a 48 V DC plant can feed both.

What a 48 V DC plant actually does in a small Canadian building

In a PoE context, a 48 V DC plant is simply a well-sized low-voltage power supply (or pair of supplies, often with batteries) that feeds:

• One or more PoE switches for bulk powered ports.
• PoE injectors near existing switches where only one or two ports need power.
• PoE splitters that convert 48 V PoE into device-friendly DC voltages.
• Occasionally, direct DC loads like small routers, wireless bridges or controllers.

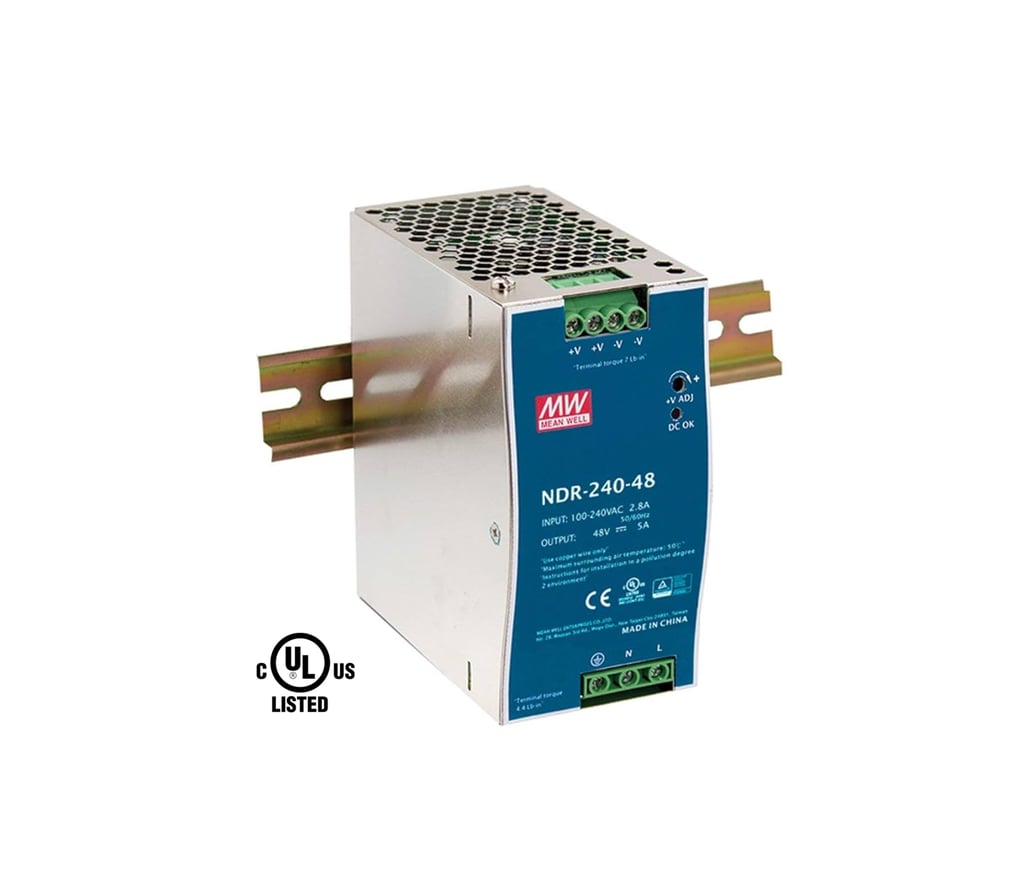

The plant might be a single rack-mount 48 V DC supply in a Toronto telecom closet, or a battery-backed, solar-charged 48 V system in an Alberta cabin. In both cases, it lets you centralize power budgeting, UPS runtime and maintenance instead of chasing little wall warts around the building.

Quick rule-of-thumb: sizing a small 48 V DC plant

In all cases, size for continuous load, not nameplate fantasy. Canadian winters expose under-sized DC plants quickly when cameras and radios draw more under cold start.

PoE injectors vs PoE switches in Canadian projects

A question that comes up on almost every Canadian job: “Should we just throw in a couple of PoE injectors, or is it time for a proper PoE switch?”

PoE injector vs PoE switch vs midspan: quick comparison

In practice, injectors are brilliant band-aids when used intentionally: a camera over the loading dock, one AP over an existing rack, one reader added to an older access system. Once you are consistently above half a dozen powered drops in one area, a dedicated PoE switch is almost always easier to design, label, cool and support.

How to decide in 5 steps

1. Count powered ports now and in three years. If you’ll end up with more than 6–8 powered devices in one closet, plan for a PoE switch.
2. Add up worst-case watts. Sum camera, AP, reader and other loads; add 30–40 % headroom for Canadian cold starts.
3. Look at physical rack space. Injectors eat outlets and power bars; switches concentrate cabling.
4. Consider monitoring. If you care about per-port power monitoring or remote disable, injectors become painful quickly.
5. Think maintenance. Ask, “Will a tech in five years understand this?” Central PoE switches are easier to document.

Using PoE splitters for non-PoE devices

PoE splitters sit at the far end of a PoE cable and turn 48 V DC on the pairs into a more familiar low-voltage output like 5 V, 9 V, 12 V or 24 V for devices that don’t speak PoE. They’re how you keep the structured cabling and centralized 48 V plant while still feeding legacy hardware.

Good splitter candidates

• Legacy fixed cameras that only accept 12 V or 24 V barrel-jack power.
• Small routers, wireless bridges or IoT gateways in attics and service spaces.
• Digital signage players or media boxes mounted behind displays.
• Industrial or access control devices that expect screw-terminal DC inputs.

The trick is to treat PoE splitters as power supplies: check compatible voltages, maximum wattage, connector type, polarity and environment. A splitter that is perfect for a 10 W signage player may not be appropriate for a 24 W PTZ camera in a cold outdoor cabinet.

UPS, solar and redundancy strategies in Canadian sites

One of the biggest benefits of a 48 V DC plant is that it plays nicely with UPS and batteries. Instead of backing up dozens of tiny AC adapters, you can:

• Place a single UPS or battery bank ahead of the 48 V DC supply.
• Run your PoE switch, injectors and a few DC loads from that plant.
• Size runtime based on your actual PoE and DC load, not “mystery bricks.”

In off-grid cabins and rural sites, the same plant often ties into solar charge controllers and wind. The entire PoE network—cameras, APs, bridges, controllers—rides on the same DC bus and keeps running when the local AC grid doesn’t.

Simple redundancy patterns

• N+1 supplies: Two smaller 48 V DC supplies instead of one big one, with diodes or OR-ing for failover.
• Separate plants: One plant for life-safety / access control, another for cameras and Wi-Fi.
• Split circuits: Use separate AC feeds for DC plants and network gear when practical.

Growing from injectors to full PoE switches

Many Canadian sites don’t start with a perfect topology. They start with “we need two cameras” and grow into full PoE floors over a few years. That’s fine—as long as you plan the migration path.

Typical migration path

1. Phase 1 – 1–3 devices: Add PoE injectors and a small 48 V DC supply to an existing non-PoE switch.
2. Phase 2 – 4–8 devices: Standardize injectors, label them clearly, and start planning a PoE switch in the next budget cycle.
3. Phase 3 – 8+ devices: Replace the non-PoE switch with a managed PoE switch; keep one or two injectors for edge oddballs.
4. Phase 4 – DC plant: For sites with UPS, solar or long runtimes, consolidate power into a 48 V DC plant feeding the PoE switch and a few DC loads.

The goal is to avoid death-by-injector—that point where half the rack is wall warts, power bars and unlabeled inline bricks that nobody wants to touch.

A 30-second decision framework for 48 V DC, injectors and splitters

Use these three “If…” rules when you’re standing in a Canadian telecom room or cabin and need to decide quickly.

• If you have 1–3 PoE endpoints (e.g., a couple of cameras and an AP) and no PoE switch, use injectors fed by a small 48 V DC supply.
• If you have 4–8 PoE endpoints in one closet and expect to grow, spec a PoE switch and treat injectors as temporary.
• If the cable is PoE but the device isn’t (legacy camera, router, signage player), use a PoE splitter with the correct voltage and wattage instead of running separate DC cable.

Canada reality check: things that change the design

• Cold mechanical rooms. In unheated or semi-conditioned spaces, size 48 V supplies and PoE budgets with 30–40 % headroom; cold starts and viscosity changes in lubricants push currents higher.
• Mixed-use buildings. In older mixed-use buildings in Ontario and Quebec, telecom rooms are often small and shared; a tidy 48 V DC plant with PoE switches is easier to permit than a mess of bricks.
• Off-grid cabins and barns. In rural Alberta, Saskatchewan and the North, 48 V DC plants tie into battery banks and solar; you may design for days of autonomy instead of minutes of UPS runtime.
• Code and AHJ. The Canadian Electrical Code has specific requirements for low-voltage distribution and equipment locations. Always confirm with your local authority having jurisdiction (AHJ) before putting DC plants or injectors in ceiling spaces or mixed-voltage cabinets.

Security & resilience considerations

PoE and 48 V DC plants don’t just carry power; they carry the devices that watch doors, record video and connect remote users. A few quick resilience practices go a long way:

• Segment PoE networks so cameras and access control live on separate VLANs from guest Wi-Fi.
• Document power sources clearly so a future tech knows which PoE ports are backed by UPS or battery and which are not.
• Test failover at least once a year—pull the AC feed to the 48 V plant and confirm cameras, readers and bridges behave as expected.
• Keep spares of critical 48 V DC supplies, injectors and splitters for remote Canadian sites where replacement lead times are long.

What 48 V DC plants, injectors and splitters are not for

• Large, dense PoE floors. Once you’re powering dozens of devices on a floor, design around proper PoE switches and distribution, not forests of injectors.
• High-power, high-density loads. Very high-power PoE++ devices in dense racks are usually better served by PoE switches with active power management.
• Unprotected outdoor DC runs. Don’t run exposed 48 V DC cabling outdoors without proper surge protection, bonding and enclosures.
• Bypassing design work. Injectors and splitters are tools—not excuses to avoid doing a power and cable schedule for the project.

When this approach is (and isn’t) the right choice

Great fit

• Small camera or AP deployments (1–6 endpoints) on existing non-PoE switches.
• Access control and intercom panels that need DC power and Ethernet on the same cable.
• Rural cabins and remote sites built around 48 V batteries and solar.
• Retrofit projects where you can’t justify replacing all switching hardware yet.

Use with caution

• Growing sites that will eventually have a full floor of PoE loads—plan when injectors give way to switches.
• Ceiling plenum spaces and mixed-voltage enclosures—always confirm mounting and ventilation with your AHJ.
• Installations where monitoring, per-port power control and remote reboot are critical—injectors may not offer enough visibility.

FAQ – 48 V DC power, PoE injectors and splitters in Canada

When should I use a PoE injector instead of a PoE switch?

Use a PoE injector when you’re adding one or two PoE devices—like a camera or AP—to an existing non-PoE switch, and you don’t expect that closet to grow beyond a handful of powered ports. Above about 4–6 injectors, a managed PoE switch is usually easier to cool, document and support in Canadian closets.

Can I power multiple PoE devices from one 48 V DC power supply?

Yes—as long as the total wattage of your PoE injectors, splitters and any direct DC loads stays below the power supply’s continuous rating with 30–40 % headroom. Always include worst-case PoE draw and Canadian cold-start conditions when you do the math, especially in unheated spaces.

What does a PoE splitter actually do?

A PoE splitter takes 48 V DC from a PoE cable and converts it into a lower DC voltage—commonly 5 V, 9 V, 12 V or 24 V—for devices that don’t support PoE directly. It lets you keep the structured cabling and central 48 V plant while feeding legacy hardware like older cameras or routers.

Is running 48 V DC more efficient than using many AC adapters?

In small systems, the main benefit is simplicity and UPS integration rather than raw efficiency. For larger or off-grid systems, a central 48 V DC plant can reduce conversion losses, improve runtime and cut e-waste compared to dozens of individual AC adapters scattered throughout a Canadian building.

Can I mount PoE injectors and 48 V supplies in ceilings in Canada?

Sometimes, but not always. The Canadian Electrical Code and local inspectors may restrict what equipment can go in ceiling spaces and plenums. Many teams keep active 48 V DC gear in accessible telecom rooms and use PoE cabling to reach devices, checking with the local AHJ before placing electronics above ceilings.

How do I grow from a few injectors to a full PoE switch without wasting gear?

Plan a migration path: start with injectors and a 48 V supply for the first few devices, then budget for a managed PoE switch once port counts and loads grow. You can often reuse the 48 V plant for the new switch and keep one or two injectors for oddball edge devices.

Next steps and related Canadian PoE guides

If you’re sizing 48 V DC supplies, PoE injectors and splitters, you’ll usually also need:

• A core PoE switch plan: read the PoE switch buyer’s guide for Canada to choose managed switches and PoE budgets that match your DC plant.
• A cabling and distance check: confirm gauge and run lengths with the 23-AWG Cat6e vs Cat6 PoE guide.
• A long-run or retrofit strategy: if you’re reusing coax or 2-wire, see the IP-over-coax and 2-wire PoE deep dive.
• A cost sanity check: compare traditional AC bricks vs DC plants with the PoE-Jack® cost and cabling savings calculator.
• Real-world topologies: for rural and off-grid examples, revisit the cabin and rural off-grid networking guide.

When you’re ready to build or refine a 48 V DC plant around PoE and PoE-Jack® in Canada, you can source hardware from:

• GRID Networking PoE switches for core and edge PoE power.
• GRID Networking accessories for PoE injectors, splitters and power accessories.
• GRID Networking cabling for 23-AWG structured runs and patching.

Specifications and practices in this guide are for general planning in Canadian projects. Always verify final design details against the latest GRID Networking documentation, the Canadian Electrical Code and local AHJ requirements before construction or tender.
