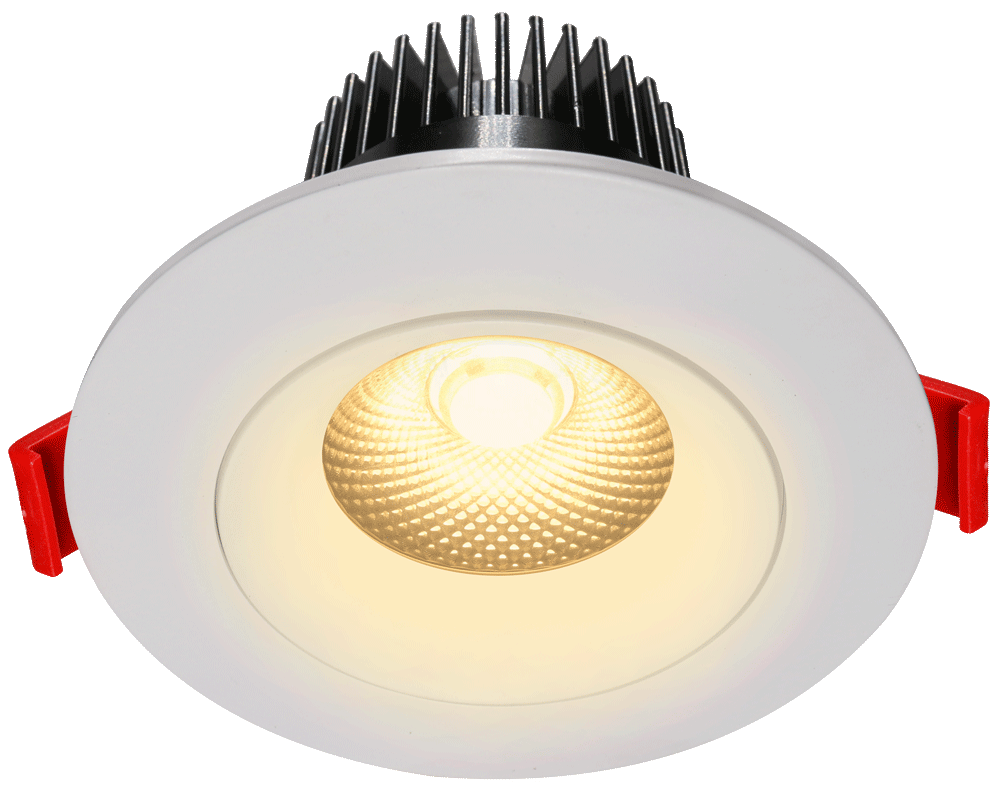

3.5" Round Venus Adjustable Recessed LED 12W | AD-35-S12W-xx-REY

Overview

The Lotus LED 3.5-inch Venus adjustable gimbal is an architectural-spec recessed fixture designed for precision directional lighting. Featuring a regressed design for low glare and a 360° rotation with a 20° tilt, this luminaire is ideal for highlighting artwork, sloped ceilings, and general task lighting.

Key Features

• Multi-Directional Adjustability: Offers 360° rotation and a 20° tilt to provide maximum aiming flexibility in any direction.
• Field-Selectable CCT: Features a 5CCT switchable system (2700K to 5000K) or a "Dim to Warm" option (3000K to 1800K).
• IC Rated: Contractor-grade construction approved for direct contact with insulation, requiring no bulky recessed housing.
• Low Profile Design: Only 2 1/4" deep, making it suitable for installations in tight ceiling plenums.
• Dimmable: Smoothly dimmable from 100% down to 5% with most TRIAC dimmers.

Technical Specifications

• Power: 12W
• Halogen Equivalent: 90W
• Light Output: 780 – 920 lm (5CCT) / 700 lm (DTW)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Input Voltage: 120V AC (Standard) / 120V-347V AC (Optional 0-10V)
• CRI: 90+
• Beam Angle: 38°
• Dimensions: ID 3 1/2", OD 4 1/4", Thickness 2 1/4"
• Cut Out: 3 1/2" to 3 3/4"
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Approved Location: Insulated Ceiling & Wet Locations
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus, T24
• Warranty: 5 Year
