Bulldog-RC: The Security Integrator's Choice

The EcoNet Controls Bulldog EVC300-RC-JW is a specialized retrofit water shutoff system designed for professionally monitored properties. It bridges the gap between traditional security hardware and modern smart home visibility.

Unlike standard consumer valves, this "RC" (Relay Contact) model is engineered to be triggered by a Hardwired Dry Contact Signal from your Security Alarm Panel or Building Management System (BMS). This ensures the water shutoff is immediate, local, and 100% reliable, regardless of internet status.

Hybrid Architecture: Wired Control + Wi-Fi Visibility

This model features a unique dual-purpose architecture:

• Primary Control (Hardwired): The valve Open/Close action is driven by a physical wire connected to your alarm panel (Honeywell, DSC, ELK, etc.). This is "Cloud-Free" reliability.
• Secondary Status (Wi-Fi): Because this unit is built on the "Just Works" (JW) platform, it can connect to the SmartLife App to send "Valve Closed" push notifications to your phone. (Note: Remote app control is typically disabled or secondary to the hardwired trigger to prevent logic conflicts).

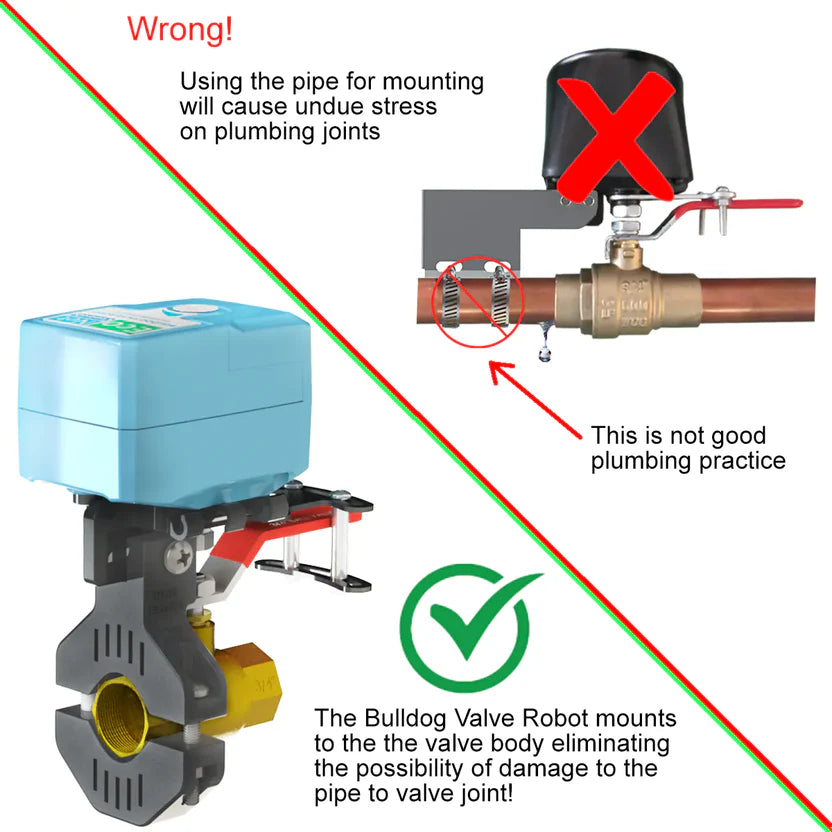

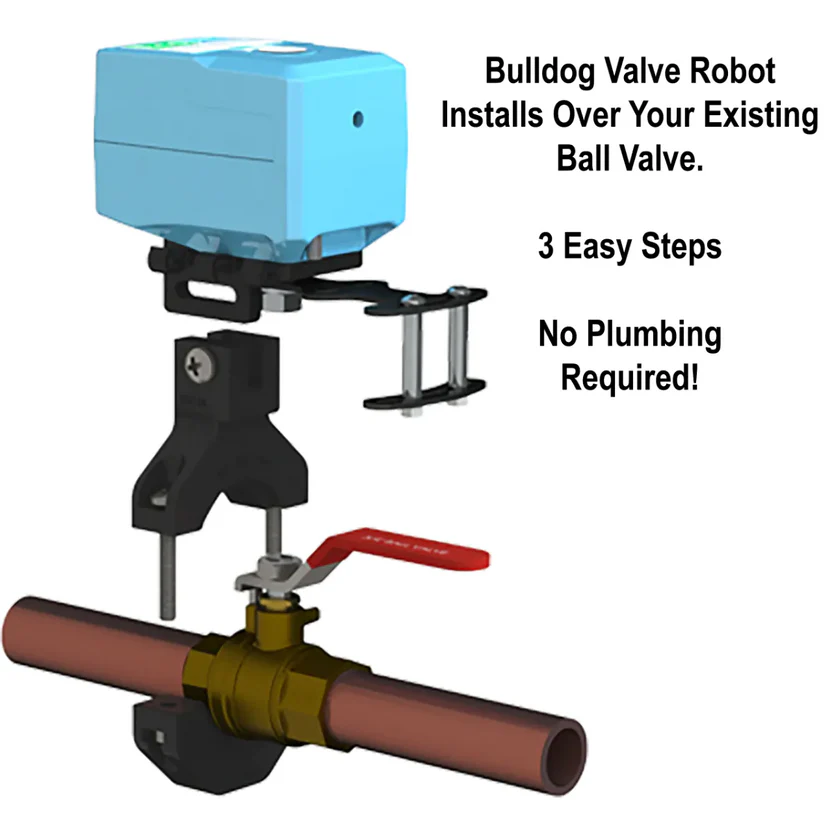

Retrofit Installation (No Plumbing)

Key Features

• Zero Latency Shutoff: Instant response when the alarm panel relay closes.
• High-Torque Motor: Delivers ~15Nm (11 lb-ft) of force, capable of closing stiff valves on larger 1.25" or 1.5" commercial mains.
• Universal Integration: Compatible with any system capable of a Dry Contact / Relay Output (Normally Open/Closed logic).
• Manual Override: A clutch release button allows you to manually operate the valve handle in an emergency.

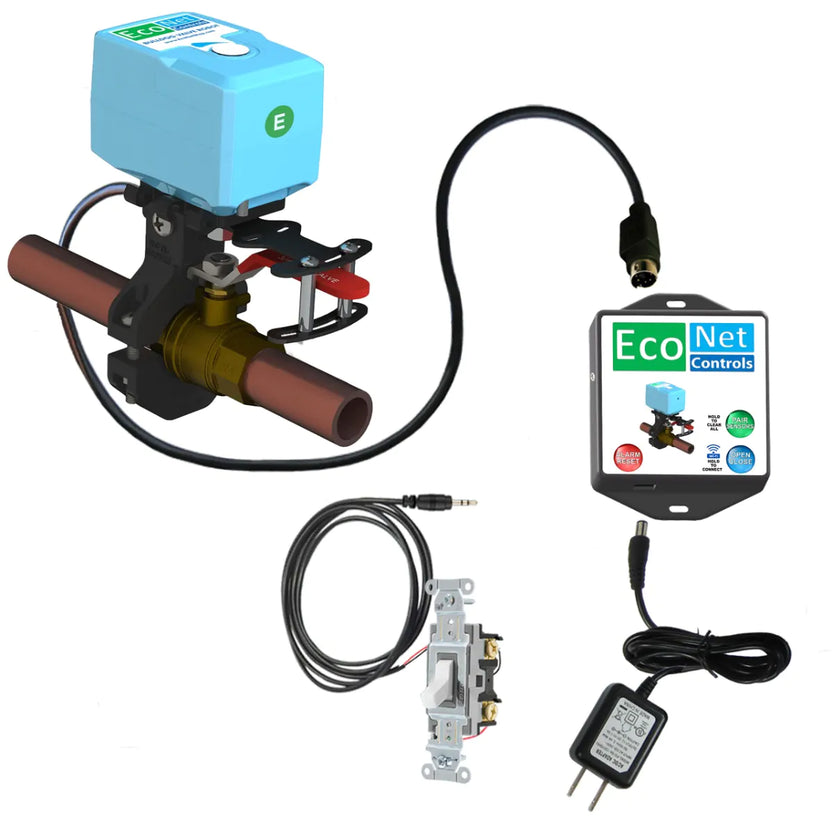

What’s Included

• 1 × Bulldog Valve Robot (EVC300-RC Firmware)

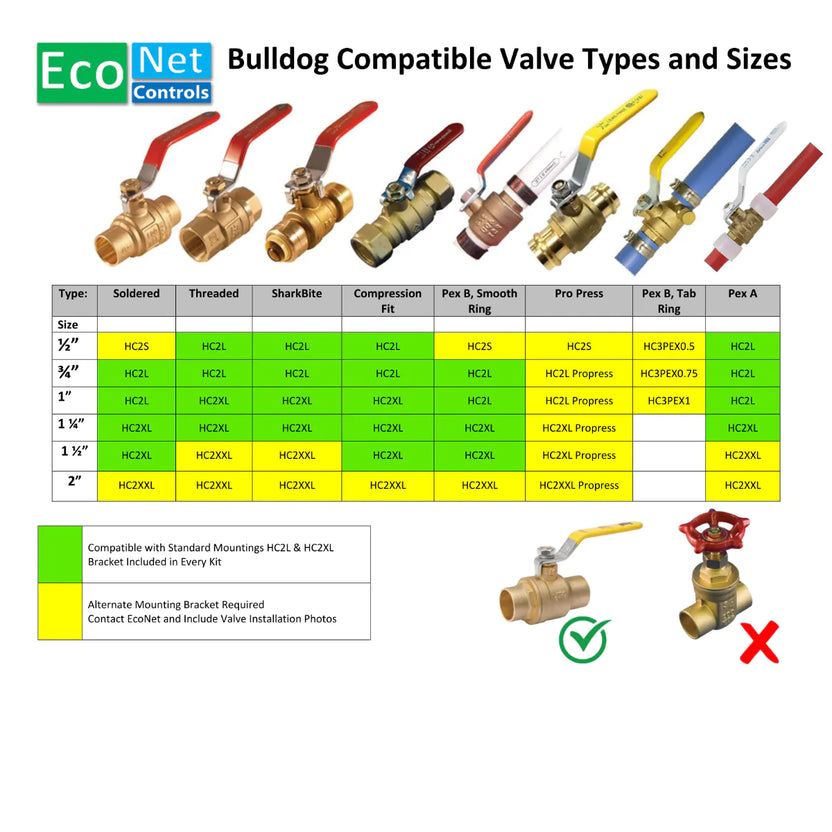

• 1 × Universal Mounting Kit (Fits 1/2", 3/4", 1", 1.25", and 1.5" valves)
• 1 × Relay Contact Interface Cable (2.5mm jack to bare wire)
• 1 × AC Power Adapter (12V DC)
• Note: Alarm panel and external leak sensors are NOT included.

Technical Specifications

• Control Input: Hardwired Dry Contact (Relay)
• Monitoring Protocol: Wi-Fi 2.4GHz (SmartLife App)
• Valve Compatibility: Quarter-Turn Ball Valves (Lever Handle)
• Power: 12V DC (Adapter included). Compatible with 12V Battery Backup.

Common Use Cases

• Vacation Homes: Valve automatically closes when the Security Alarm is set to "Armed Away" mode.
• Condo Buildings: Water shuts off when the central building fire/leak panel triggers an alarm.
• Commercial Facilities: Server rooms or dental offices requiring integration with proprietary facility management software.

FAQ

Can I open/close this valve from the app?
Generally, no. The app is primarily for status monitoring (seeing if the valve is open or closed). The actual control is reserved for your hardwired alarm panel to prevent conflicting commands.

Does this unit detect leaks?
No. This is an actuator only. It relies on your existing alarm system's flood sensors to detect the leak and tell the valve to close.

Is it Normally Open (NO) or Normally Closed (NC)?
The Bulldog-RC input is triggered by a contact closure. Please consult the included wiring diagram to match your alarm panel's output programming (typically configured as a momentary or maintained contact).
