Bulldog-IV Integrated 1" Relay Contact Valve (Commercial Grade)

The EcoNet Controls Bulldog-IV-RC is a dedicated hardwired automatic shutoff solution designed for professional integration. Unlike consumer smart valves that rely on Wi-Fi, this unit is triggered by a Dry Contact Relay signal from your Security Alarm Panel, Leak Detection System, or Building Management System (BMS).

This "IV" model replaces your main water valve entirely with a Heavy-Duty 1-Inch Stainless Steel Motorized Ball Valve, providing a permanent, leak-proof installation for high-value properties and commercial mechanical rooms.

Why choose the Relay Contact (RC) Model?

In critical infrastructure, relying on Wi-Fi or cloud servers introduces unnecessary risk. The Bulldog-IV-RC operates with Zero Cloud Dependency.

• Hardwired Reliability: Opens or closes instantly when triggered by a standard Normally Open/Normally Closed (NO/NC) relay output.
• Universal Integration: Works with any security panel (Honeywell, DSC, Elk), automation controller (Control4, Crestron, RTI), or standalone commercial leak detector.
• Integrated Valve: Includes a professional 1" NPT full-port valve (plumbing required), eliminating the variables of retrofit brackets.
• High Torque: The industrial-grade motor delivers ~15Nm of torque to prevent seizing, even after months of inactivity.

Professional Installation Required

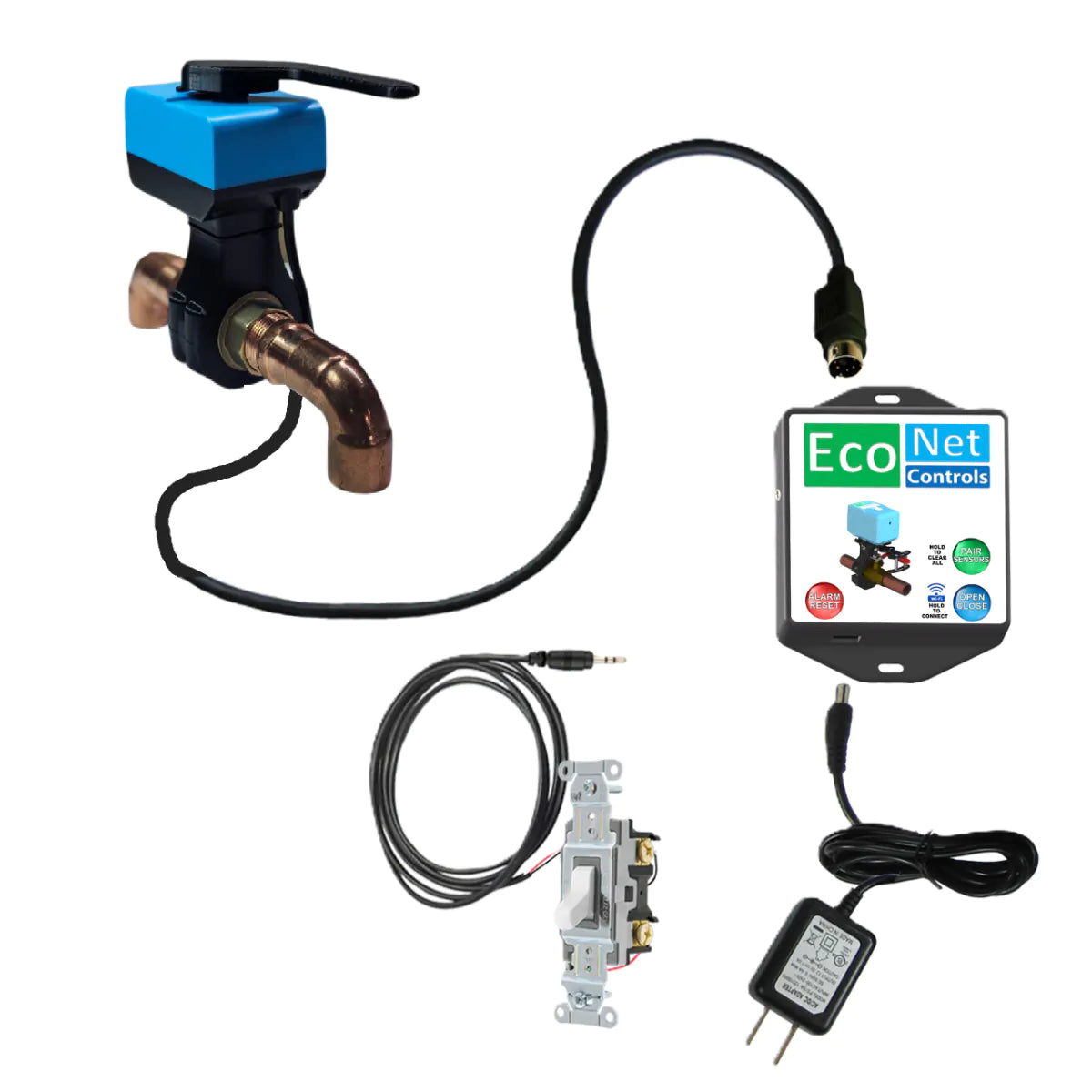

What’s Included

• 1 × Bulldog-IV Valve Robot (High-Torque Motor)
• 1 × Integrated 1" NPT Valve (Lead-free Stainless Steel)
• 1 × RC Controller Interface (with Dry Contact Input wiring)
• 1 × AC Power Adapter (12V DC)
• Note: Does NOT include wireless sensors or an alarm panel. This is an actuator only.

Technical Specifications

• Valve Size: 1" NPT Female Threaded (Full Port)
• Control Method: Hardwired Dry Contact (Relay Closure)
• Power: 12V DC (Adapter included). Compatible with 12V battery backup rails.
• Response Time: ~18 Seconds (Slow-close to prevent water hammer)

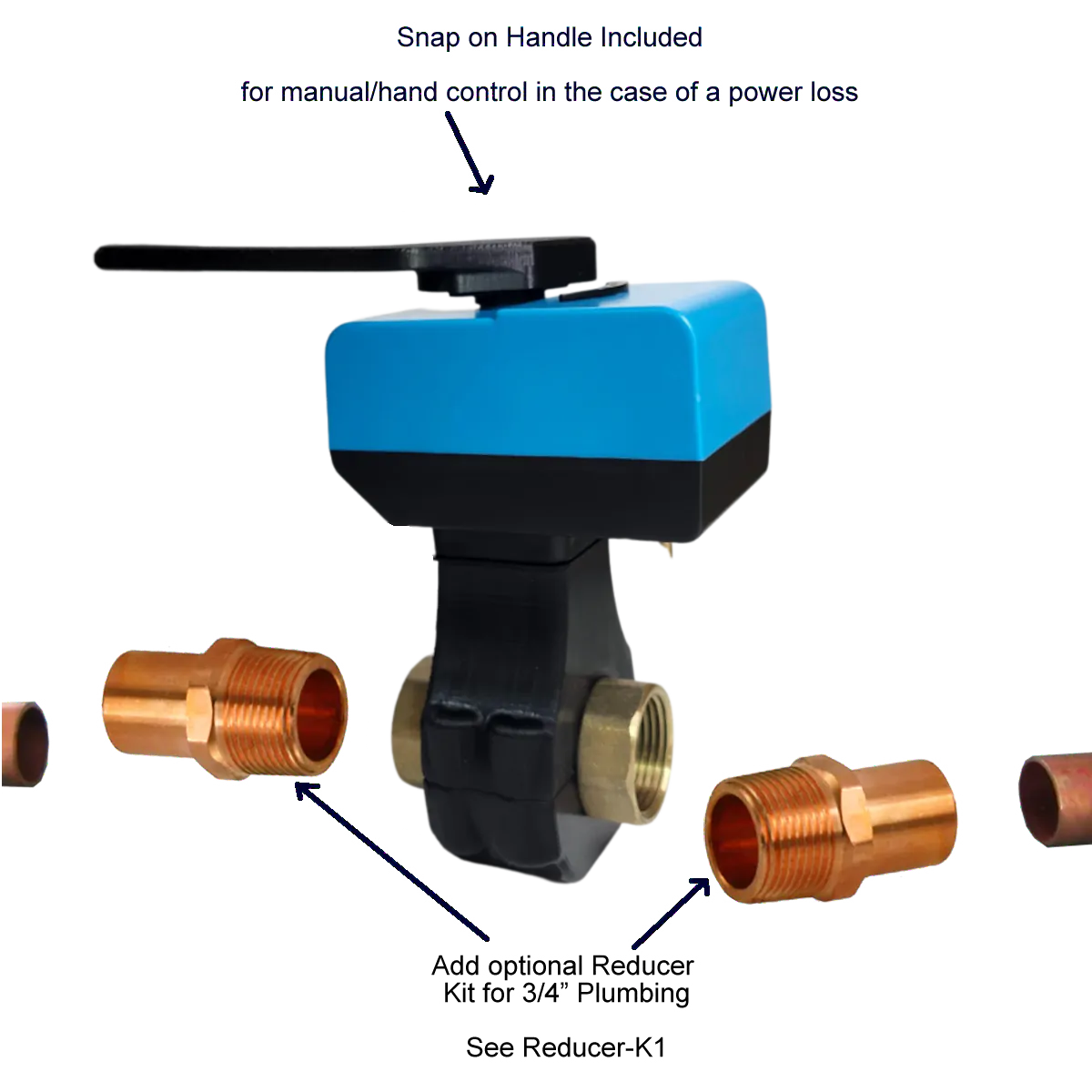

• Manual Override: Clutch release button allows manual handle operation during power outages.

Common Use Cases

• Monitored Security: Linking water shutoff to a "Water Alarm" zone on a central station security panel.
• Vacation Properties: Hardwiring to a simple "Away" switch or existing home automation system.
• Commercial: Server rooms, dental offices, and multi-unit residential laundry rooms where Wi-Fi is unreliable or restricted.

FAQ

Does this work with an App?
Not natively. The valve itself has no app or Wi-Fi. You would control it via the app associated with your Security System or Automation Controller (e.g., the alarm.com app if connected to a compatible panel).

Can I use wireless sensors with this?
No. This unit does not have a wireless receiver. It relies on your external system to tell it when to close.

What happens during a power outage?
The valve stays in its last position. You can manually open/close it by pressing the clutch button on the motor. For automatic operation during outages, a 12V UPS (Battery Backup) is recommended.
