Bulldog Wi-Fi Integrated Smart Water Shutoff Valve System

The EcoNet Controls Bulldog-IV is a professional-grade smart water shutoff system designed to help reduce the risk of water damage by automatically shutting off your main water supply when a leak is detected.

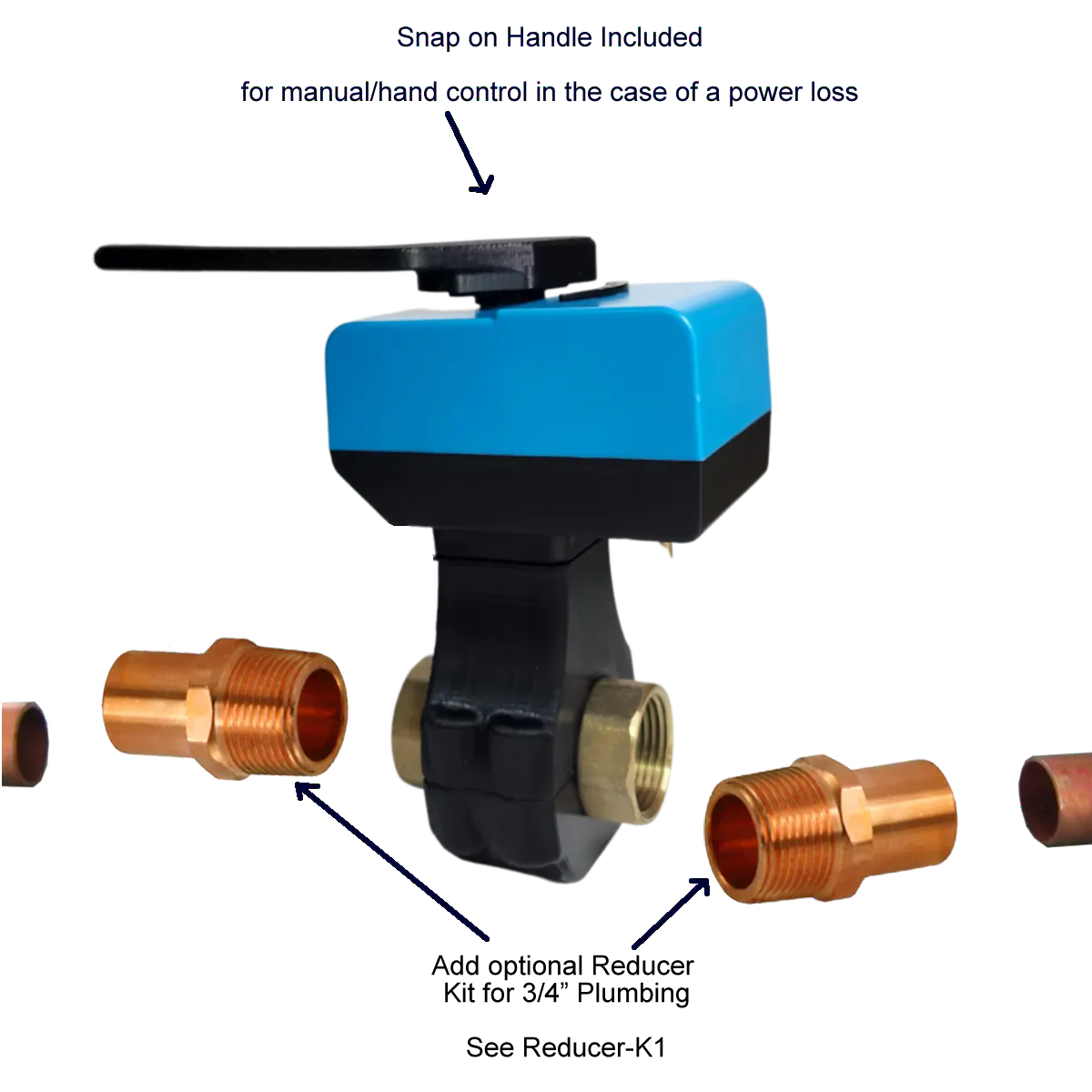

Unlike retrofit models, this is an Integrated Valve (IV) system featuring a heavy-duty 1-inch NPT stainless steel ball valve. It is installed directly inline with your plumbing, replacing your existing manual valve for a clean, permanent, and reliable solution.

How it protects your home

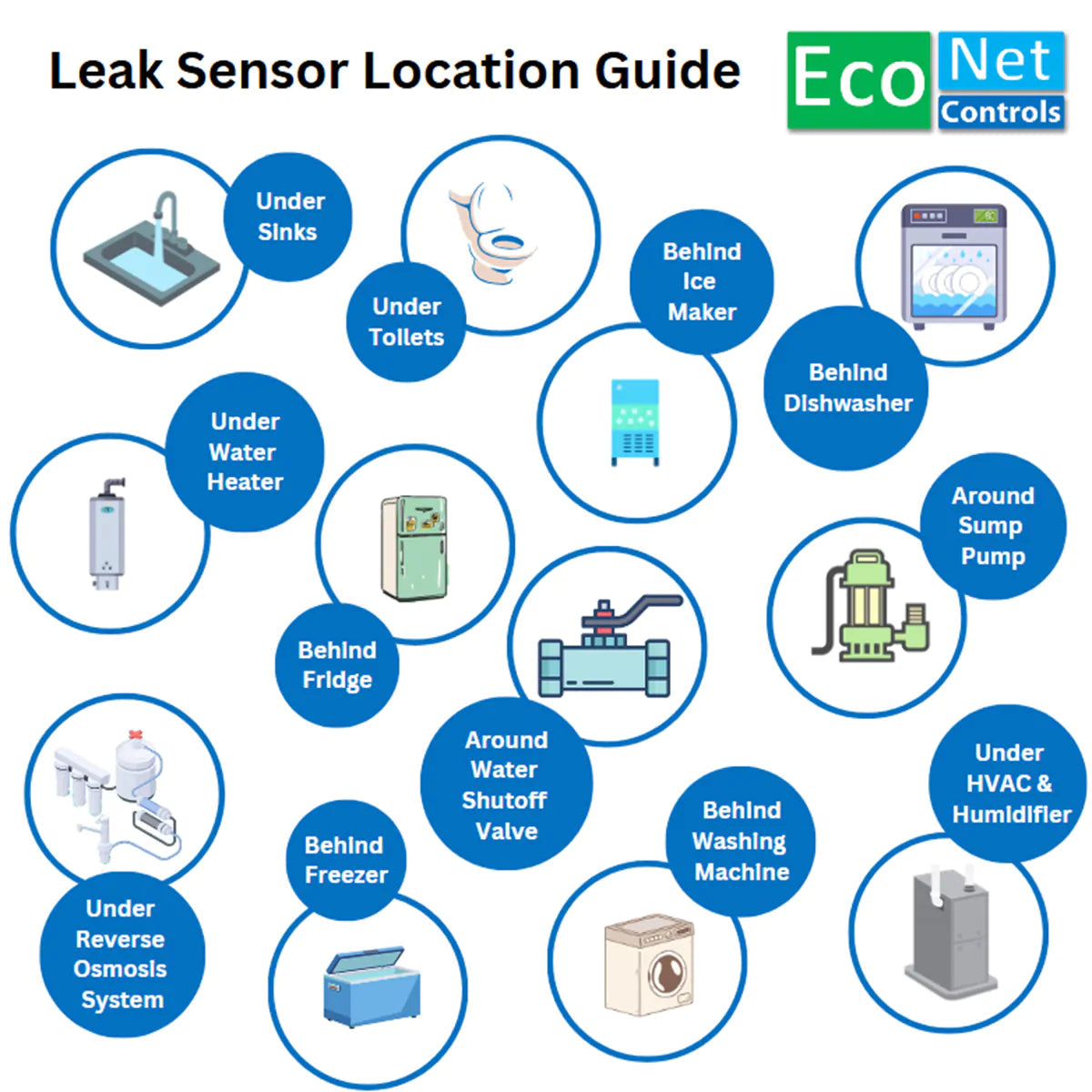

Place the included wireless leak sensors near common risk areas—like the water heater, laundry appliances, under-sink plumbing, or behind toilets. If a sensor detects water, it sends a direct signal to the Bulldog valve to close the main water supply automatically.

  • Automatic shutoff triggered immediately when a paired leak sensor detects water.
  • Wi-Fi connectivity allows for remote monitoring and open/close control via the SmartLife app.
  • Offline Protection: Sensors communicate directly with the valve via local RF (433 MHz), ensuring shutoff works even if your Wi-Fi is down.
  • No dedicated smart-home hub required—works right out of the box.

Important: This system is designed to help reduce the risk of water damage. It does not guarantee prevention of all leaks, flooding, or losses.

Professional installation required

⚠️ Plumbing Work Required
This model includes a 1-inch NPT threaded valve that installs inline on your main water supply. Unlike "clamp-on" Bulldog models, this unit requires pipe cutting and plumbing installation. It is ideal for new construction, renovations, or replacing old, seized valves.

Variants (Choose your coverage)

All EVC300-IV kits utilize the same professional 1" valve and Wi-Fi controller. Select your kit based on the number of leak sensors you need:

  • Base Unit (EVC300-IV-WIFI) – Valve and controller only (no sensors).
  • SK3 Kit (EVC300-IV-SK3) – Includes 3 wireless leak sensors.
  • SK6 Kit (EVC300-IV-SK6) – Includes 6 wireless leak sensors.
  • SK9 Kit (EVC300-IV-SK9) – Includes 9 wireless leak sensors.

Coverage guidance:
Start with the SK3 for condos or targeted protection (Water Heater + Laundry + Kitchen). Upgrade to SK6 or SK9 for multi-bathroom homes or maximum peace of mind.

What’s included

Each EVC300-IV kit includes:

  • 1 × Bulldog-IV Valve Robot (Motor Assembly)
  • 1 × Integrated 1" NPT Valve (Lead-free stainless steel)
  • 1 × EVC300 Wi-Fi Control Module
  • 1 × AC Power Adapter (12V DC)
  • Wireless Leak Sensors (ELS100) – Quantity depends on selected variant (0, 3, 6, or 9)
  • Quick Start Guide

Note: This is an integrated unit. It does not require or include "clamp-on" mounting brackets.

Connectivity & Reliability

App Control: Connects to your 2.4GHz Wi-Fi network for management via the SmartLife / Tuya app. Receive push notifications on your phone whenever the valve closes or a leak is detected.

Power & Battery Backup: The unit is powered by a standard wall outlet. For protection during power outages, an optional Battery Backup (BB3K) is available separately. (This unit does not contain an internal battery).

Is this the right Bulldog for you?

Choose EVC300-IV (This Product) if:

  • You are replacing an old main water valve or building a new home.
  • You are comfortable hiring a plumber or performing plumbing work.
  • You want a clean, professional "inline" installation.

Choose a Bulldog Retrofit Model (EVC300-HC2LXL) if:

  • You want to install it yourself in 15 minutes.
  • You have an existing lever-handle ball valve that works well.
  • You do not want to cut into your pipes.

Common use cases

  • Renovations and new plumbing installations.
  • Homes with old "Gate Valves" (round handles) that must be replaced to add smart automation.
  • Vacation homes and seasonal properties requiring remote water management.
  • Condos where a permanent, integrated solution is preferred by the HOA.

Important Technical Notes

  • Valve Size: 1-inch NPT Female threads. (Adapters may be required for 1/2" or 3/4" pipes).
  • Network: Requires 2.4GHz Wi-Fi for app features.
  • Sensors: ELS100 sensors (included in kits) use 433 MHz RF to communicate directly with the controller for offline reliability.
  • Insurance: This active mitigation system may qualify you for home insurance discounts. Check with your provider.
