Bulldog Z-Wave Relay Contact Valve (Security Integration Edition)
The EcoNet Controls Bulldog EVC200-RC is a specialized retrofit water shutoff system designed for **professional security integration**. Unlike standard smart home valves that rely on app commands, this unit is engineered to be triggered by a hardwired Dry Contact Relay from a central alarm panel or building automation system.
This model features a dual-protocol architecture: it uses a hardwired connection for deterministic control (Open/Close) while utilizing Z-Wave Plus strictly for valve status reporting to your monitoring dashboard.
Why choose the Relay Contact (RC) Model?
This unit is the preferred choice for monitored properties and commercial facilities where reliability is paramount.
- Hardwired Reliability: The shutoff command is sent via a physical wire from your alarm panel (Honeywell, DSC, ELK). This ensures the water turns off even if Wi-Fi, Z-Wave, or the internet are down.
- Z-Wave Status Reporting: Connects to a Z-Wave hub to report "Open" or "Closed" status, allowing you to verify the valve's position remotely without interfering with the alarm panel's control logic.

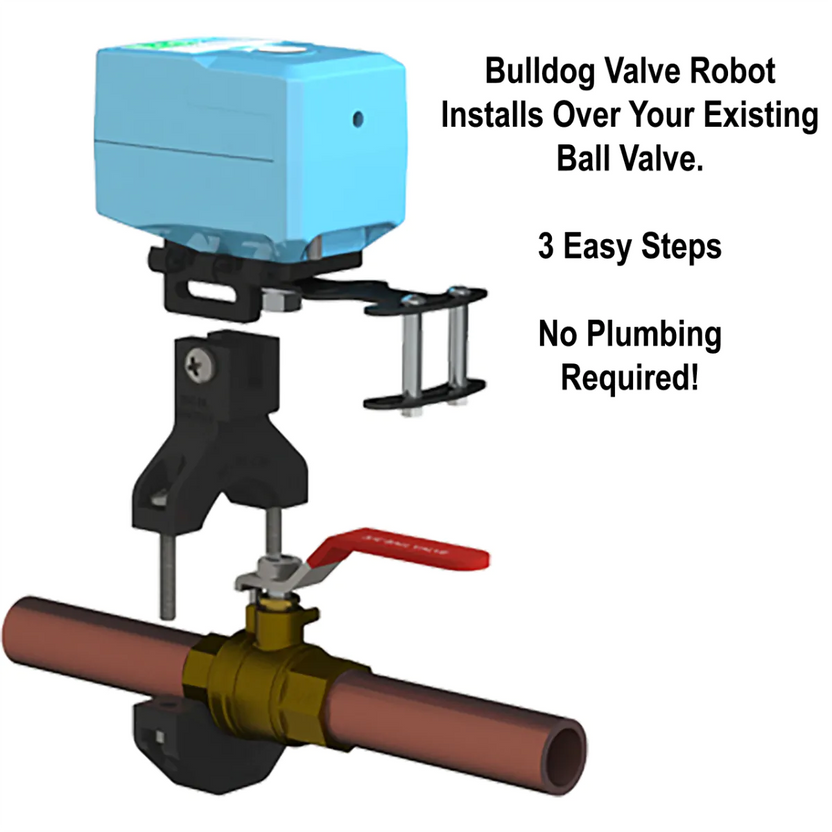

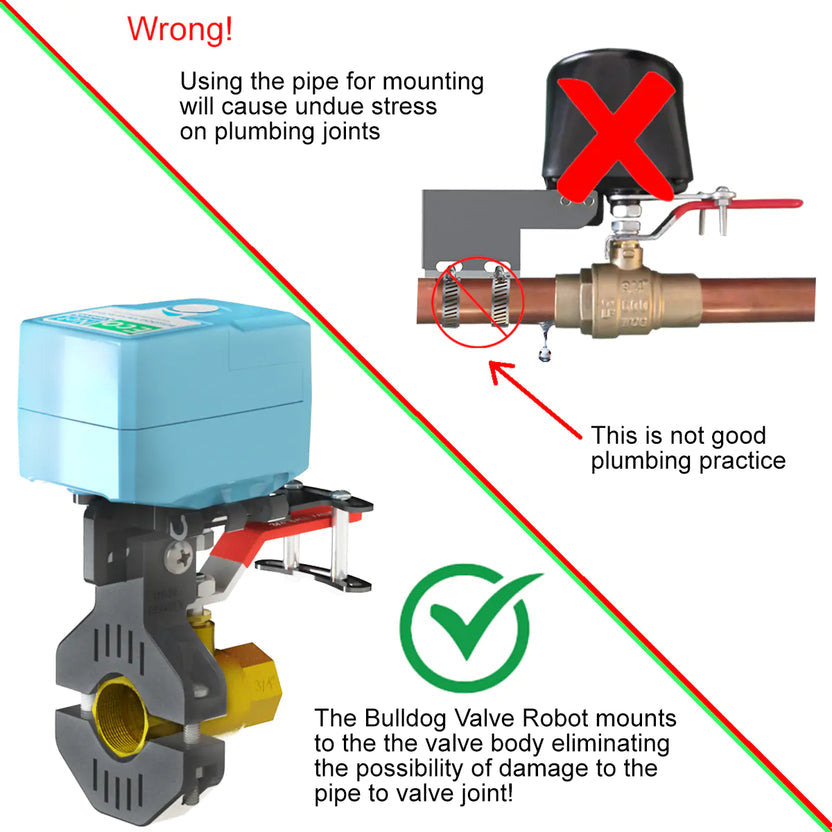

- Retrofit Installation: Clamps over your existing lever-handle ball valve. No plumbing or pipe cutting is required.
- High Torque: Delivers ~15Nm of force, sufficient to close 1/2" to 1.5" valves that may be stiff from age.
Compatibility & Requirements
- Control: Requires a device with a Dry Contact Relay Output (Normally Open/Closed) to trigger the valve.

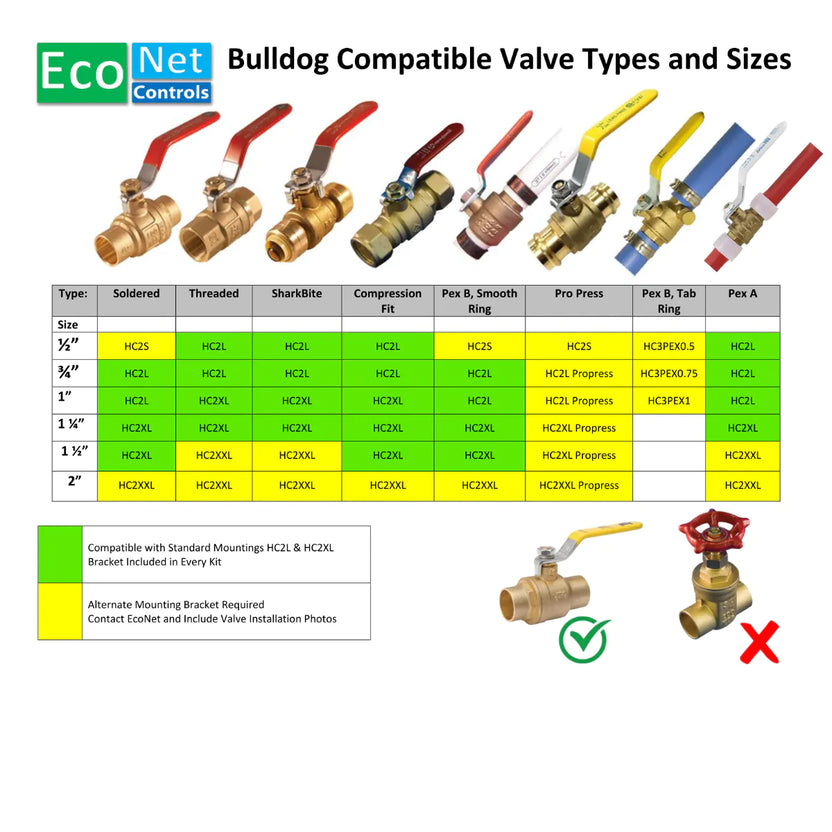

- Valve Type: Fits standard Quarter-Turn Ball Valves (pipes 1/2" to 1.5"). Not compatible with Gate Valves.
- Wiring: Requires running low-voltage wire (e.g., 18/2 security wire) between the valve and your control panel.

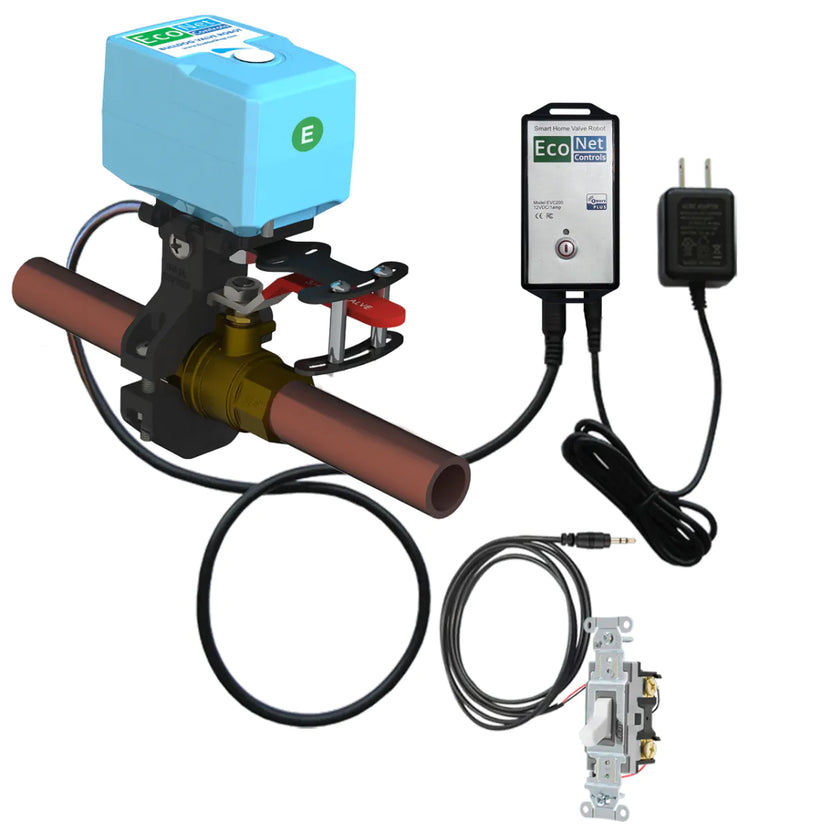

What’s Included
- 1 × Bulldog Valve Robot (RC Firmware Edition)
- 1 × Universal Mounting Kit (Fits 1/2", 3/4", 1", 1.25", and 1.5" valves)
- 1 × Relay Contact Interface Cable (2.5mm jack to bare wire)
- 1 × AC Power Adapter (12V DC)
- Note: Alarm panel and leak sensors are NOT included.
Technical Specifications
- Primary Control: Hardwired Dry Contact (Relay Closure)
- Secondary Protocol: Z-Wave Plus (Status Feedback Only)
- Torque: ~15Nm (11 lb-ft)
- Power: 12V DC (Adapter included). Compatible with 12V Battery Backup (sold separately).
- Manual Override: Clutch release button allows manual handle operation.
Common Use Cases
- Monitored Homes: Automatically shut off water when the security system is armed in "Away" mode.
- Condo Buildings: Connect to a centralized Building Management System (BMS) for unit-level control.
- Leak Detection Systems: Pair with commercial-grade wired leak controllers that lack native valve actuation.
FAQ
Can I control this valve using my phone?
Only if your Alarm System has a mobile app. The valve follows the command of the hardwired relay. It is generally not designed to be opened/closed wirelessly via Z-Wave to prevent logic conflicts with the alarm panel.
Does this fit my pipe?
The included HC2LXL mounting kit is universal for standard rigid pipes (Copper, PVC, PEX) ranging from 1/2" up to 1.5" in diameter.
What if the power goes out?
The valve will remain in its last position. For automatic operation during outages, we recommend adding the EcoNet Battery Backup (BB3K).
