EcoNet Bulldog-IV Integrated 1" Z-Wave Plus Smart Water Shutoff Valve (Base Unit) | EVC200-IV
Couldn't load pickup availability
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Bulldog-IV Integrated 1" Z-Wave Plus Water Valve (Professional Series)
The EcoNet Controls Bulldog-IV (EVC200-IV) is a heavy-duty, integrated smart water shutoff system designed for homes with Z-Wave automation.
Unlike retrofit models that clamp over existing handles, this unit replaces your main water shutoff entirely with a Motorized 1-Inch Stainless Steel Ball Valve. It integrates seamlessly into your Z-Wave mesh network, providing reliable, local leak protection without relying on Wi-Fi or cloud servers.
Why choose the Z-Wave Integrated Model?
This unit is engineered for the "Smart Home Power User" who values local control and network stability.
- Z-Wave Plus Certified: Connects to hubs like Samsung SmartThings, Hubitat Elevation, Home Assistant (Z-Wave JS), and Ring Alarm.
- Mesh Repeater: As a hardwired (plug-in) device, it acts as a signal repeater to strengthen your Z-Wave network for other devices like locks and lights.
- Local Logic Compatible: When paired with a local-processing hub (e.g., Hubitat), leak automation runs 100% offline—no internet required.
- High-Torque Motor: Delivers ~15Nm of force to ensure the valve closes fully, even after years of inactivity.
Professional Installation Required
- Plumbing: This device replaces your main water valve. It requires cutting pipes and installing the 1-inch NPT threaded valve body. We recommend installation by a licensed plumber.
- Controller: This is NOT a Wi-Fi device. It requires a Z-Wave Hub to operate. It does not work directly with a phone app unless you have a hub.

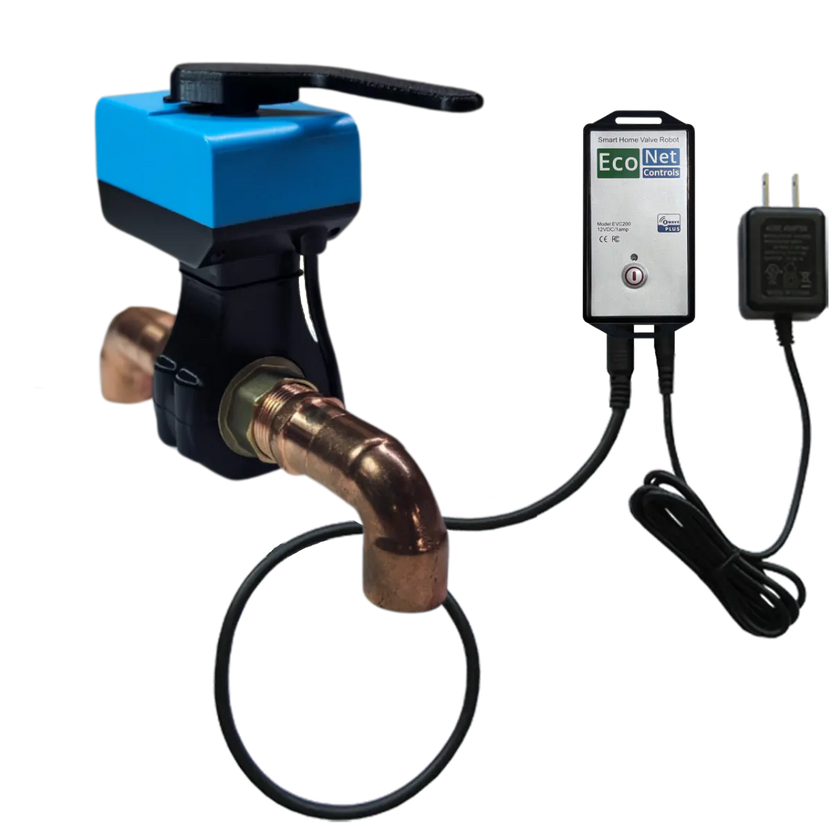

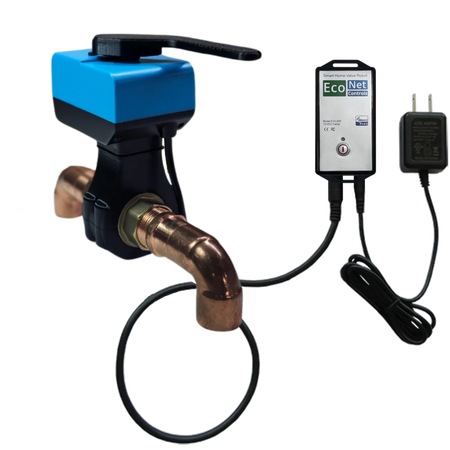

What’s Included (Base Unit)
- 1 × Bulldog-IV Valve Robot (Z-Wave Edition)
- 1 × Integrated 1" NPT Valve (Lead-Free Stainless Steel, Full Port)
- 1 × EVC200 Z-Wave Control Module
- 1 × AC Power Adapter (12V DC)
- Note: Leak sensors are NOT included. You must use Z-Wave sensors paired to your hub.
Technical Specifications
- Protocol: Z-Wave Plus (908.42 MHz - North America)
- Valve Interface: 1" NPT Female Threaded
- Power: 12V DC (Adapter included). Compatible with Battery Backup (BB3K).
- Valve Stroke: ~18 seconds (Soft close to prevent water hammer)

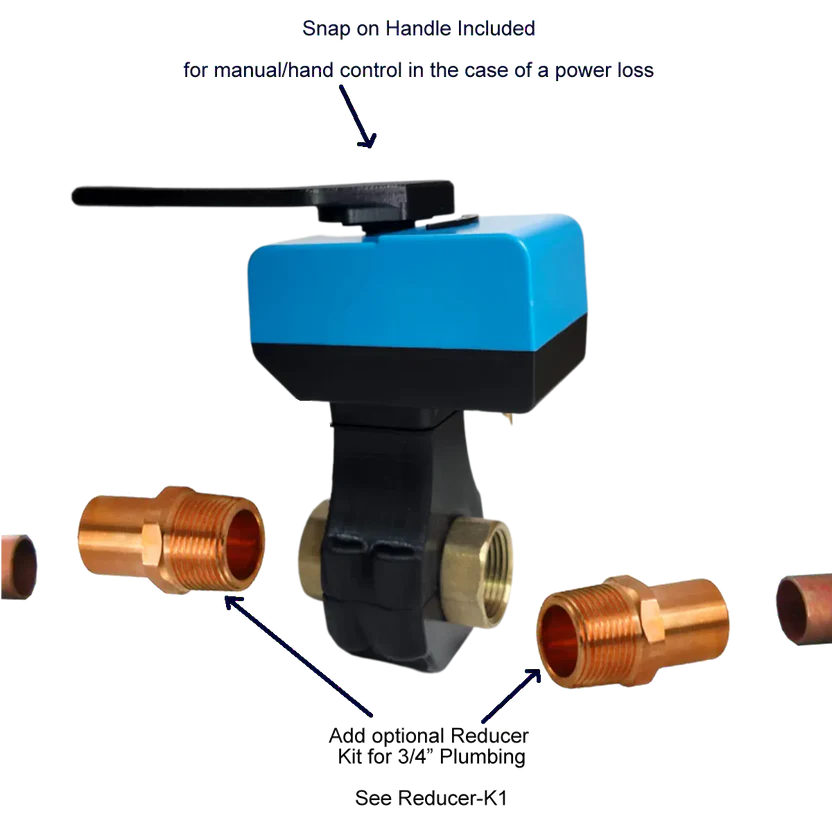

- Manual Override: Clutch release button allows manual handle operation.
FAQ
Can I use EcoNet "Bulldog-JW" sensors with this?
No. This EVC200 model talks to your Z-Wave Hub. You should use Z-Wave leak sensors (from brands like Zooz, Aeotec, or Fibaro) paired to that same hub to create your shutoff automation rules.
Does this work with Ring Alarm?
Yes, the Bulldog Z-Wave valve is generally recognized as a "Works with Ring" compatible Z-Wave valve. You can include it in the Ring app to shut off water when Ring Flood/Freeze sensors are triggered.
What is the difference between this and the "Clamp-On" version?
The "Clamp-On" (HC2LXL) version fits over your existing valve. This "Integrated" (IV) version replaces your valve with a brand new, professional-grade motorized valve.
