Bulldog-JW Wi-Fi Smart Valve Robot (Retrofit Motor)

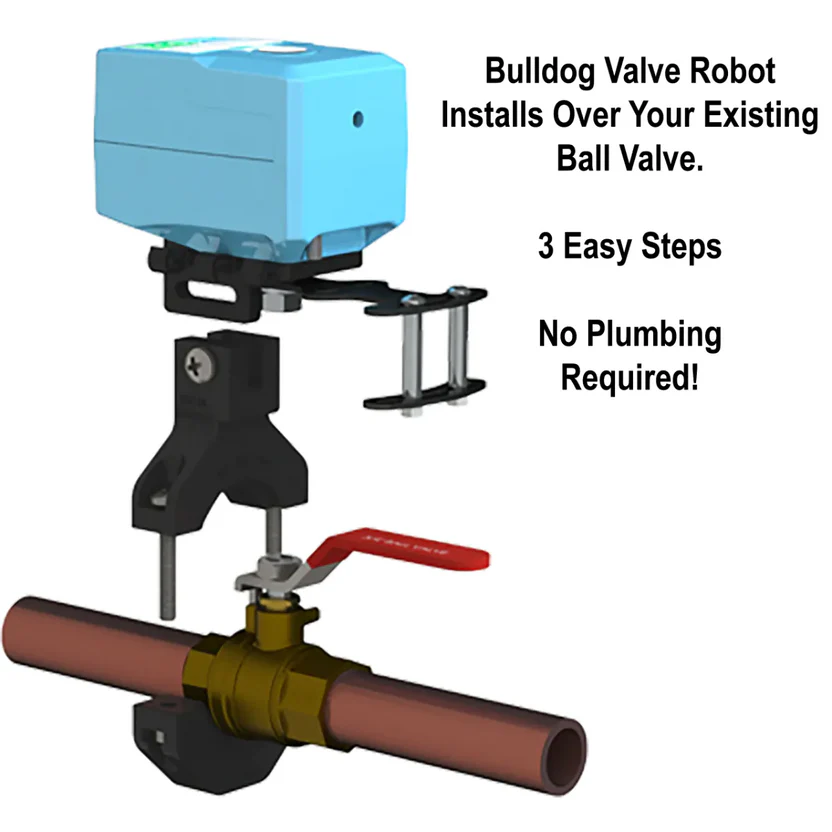

The EcoNet Controls Bulldog-JW (Just Works) is a heavy-duty smart motor designed to upgrade your existing water shutoff valve. It clamps directly over your current lever-handle ball valve, adding Wi-Fi remote control and automatic safety features without the need for a plumber.

This is the Base Unit (EVC300-HC2LXL-WIFI). It connects directly to your home Wi-Fi (no hub required) and includes a wired local leak probe. It is the perfect foundation for a custom leak protection system or for users who simply want the ability to turn their water on/off from their phone.

Key Features

• No Plumbing Required: Installs over your existing 1/2", 3/4", 1", 1.25", or 1.5" pipe valve in minutes.
• Wi-Fi Enabled (No Hub): Connects natively to the 2.4GHz Wi-Fi network. Control your water from anywhere using the SmartLife or Tuya app.
• High-Torque Performance: Engineered with ~11lb-ft (15Nm) of torque to reliably turn even stiff, older valves that other smart actuators can't budge.
• Voice Control: Works with Amazon Alexa and Google Home (e.g., "Alexa, turn off the water").
• Local Protection: The included wired leak sensor plugs directly into the controller. If it detects water, the valve closes immediately—even if your Wi-Fi is down.

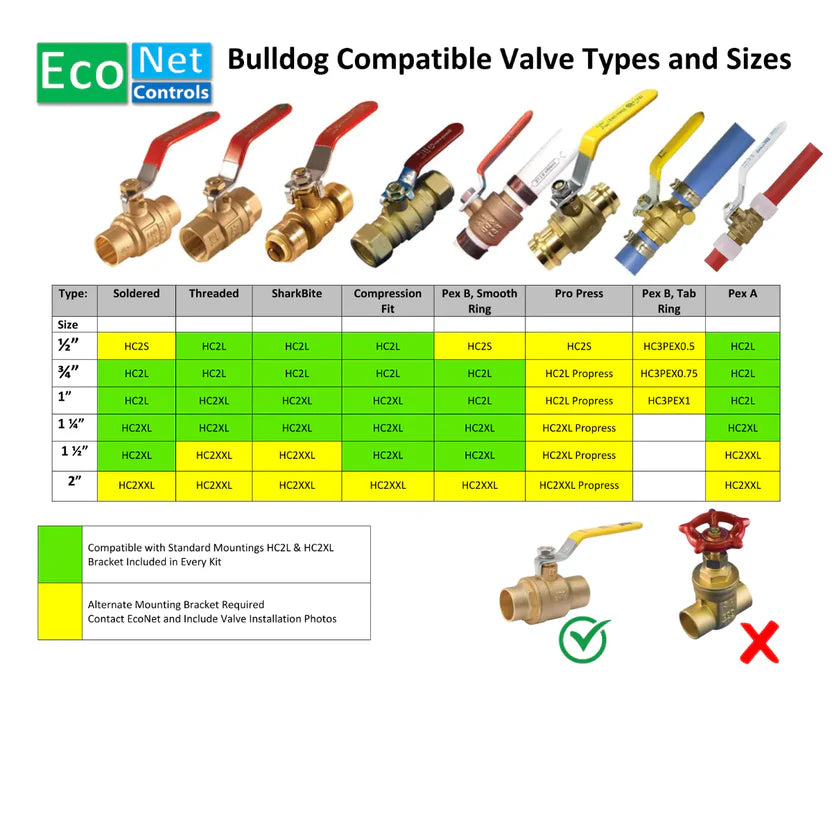

Compatibility Check: Will it fit?

What’s Included

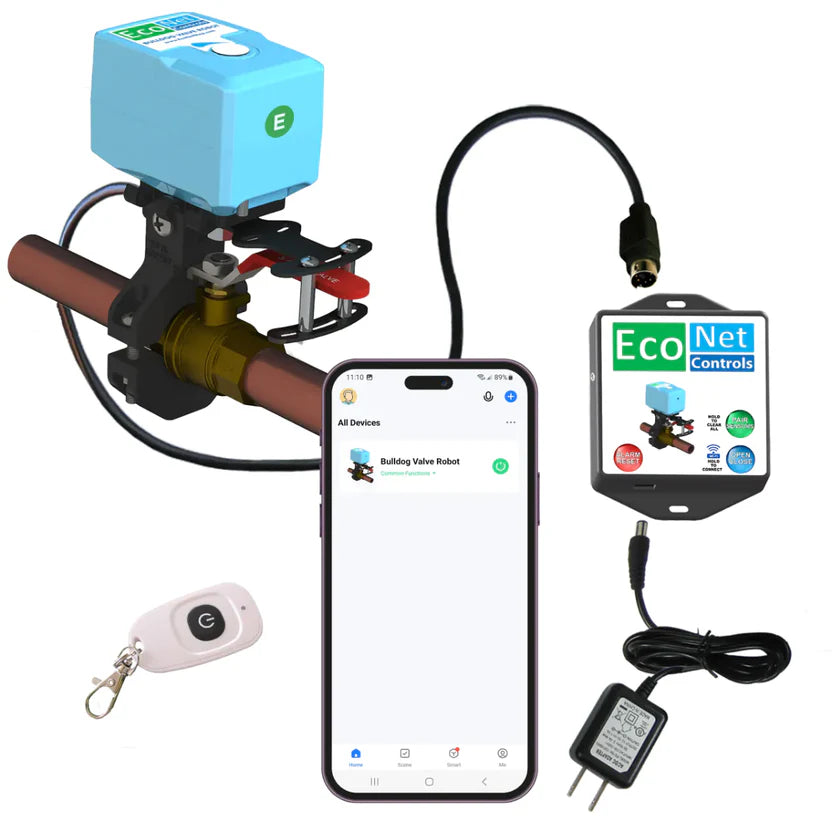

• 1 × Bulldog Valve Robot (EVC300) with Wi-Fi Controller
• 1 × Universal Mounting Kit (Adjustable for 1/2" to 1.5" pipes)
• 1 × Wired Leak Sensor Probe (Plugs into the controller for local protection)
• 1 × AC Power Adapter (12V DC)
• Mounting Hardware & Quick Start Guide

Note: This unit does not include wireless sensors. If you need whole-home wireless coverage, consider the Bulldog-JW Starter Kit (SK3) or purchase ELS100 wireless sensors separately.

Common Use Cases

• Remote Control: Shut off the water from the airport if you forgot to do it before a trip.
• Scheduled Shutoffs: Set timers to automatically turn off water at night or during work hours to minimize risk.
• Local Leak Safety: Place the included wired sensor on the floor directly below the valve to catch leaks in the mechanical room.
• Assisted Living: Gives seniors easy push-button or voice control over their main water supply without needing to physically turn a stiff valve handle.

Technical Specifications

• Torque: ~11 lbf-ft (15 Nm) – Industrial grade power
• Stroke Time: ~18 seconds (slow-close prevents water hammer)
• Wireless Protocol: Wi-Fi (2.4GHz only) + 433MHz (for optional sensors)
• App Compatibility: SmartLife, Tuya Smart (iOS & Android)
• Power: 12V DC (Must be plugged into an outlet)

FAQ

Does this replace my existing valve?
No. This robot sits on top of your existing manual valve and turns the handle for you. You do not need to cut pipes.

What if the power goes out?
The unit is powered by a wall outlet. For protection during power outages, we recommend adding the EcoNet Battery Backup (BB3K). You can also pull the clutch pin to manually turn the valve handle in an emergency.

Can I add wireless sensors later?
Yes! This EVC300 controller has a built-in 433MHz receiver. You can pair up to 20 EcoNet ELS100 wireless leak sensors to this unit at any time.
