Lotus Surface Mount Aluminum Profile | LH-1708
Shipping, returns & support
- ShippingFree standard shipping in Canada over $200.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
- Protects your LEDs from the elements and physical wear for long-term reliability.
Technical profile
- Voltage120V
- Dimming / controlTriac Dimmable
- Mount typeSurface Mount
Key specifications
| Voltage | 120V |
|---|---|
| Dimming / control | Triac Dimmable |
| Mount type | Surface Mount |
| Component type | Mounting Hardware |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKULH-1708-SW-4FT
- MPNLH-1708-SW-4FT
- GTIN'782588049618
- Barcode782588049618
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
-

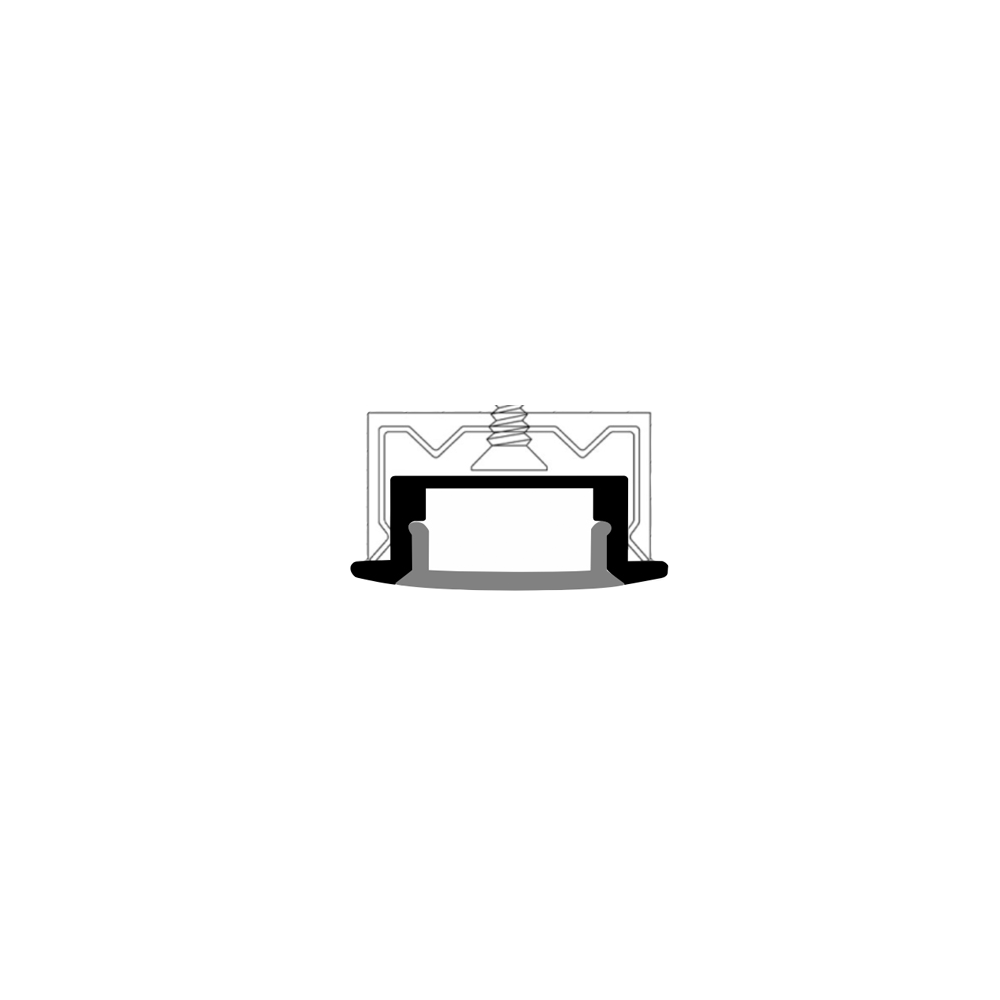

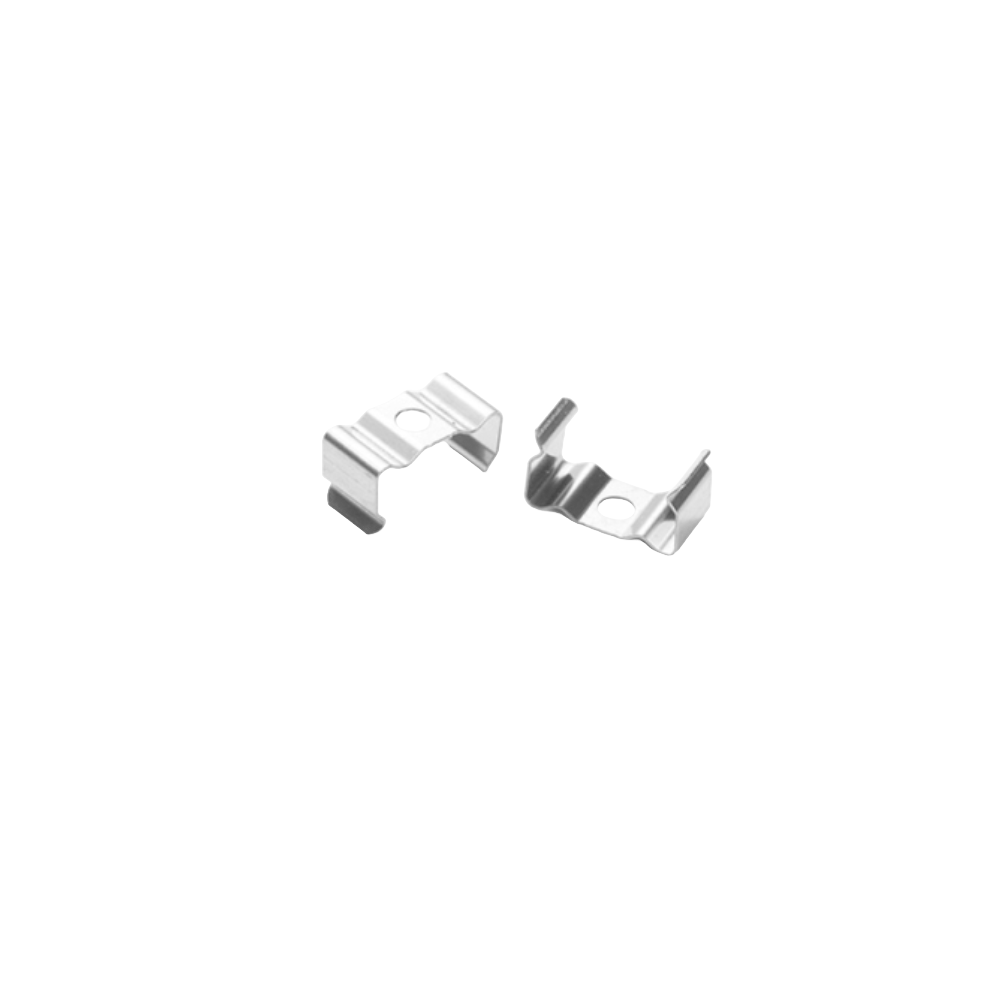

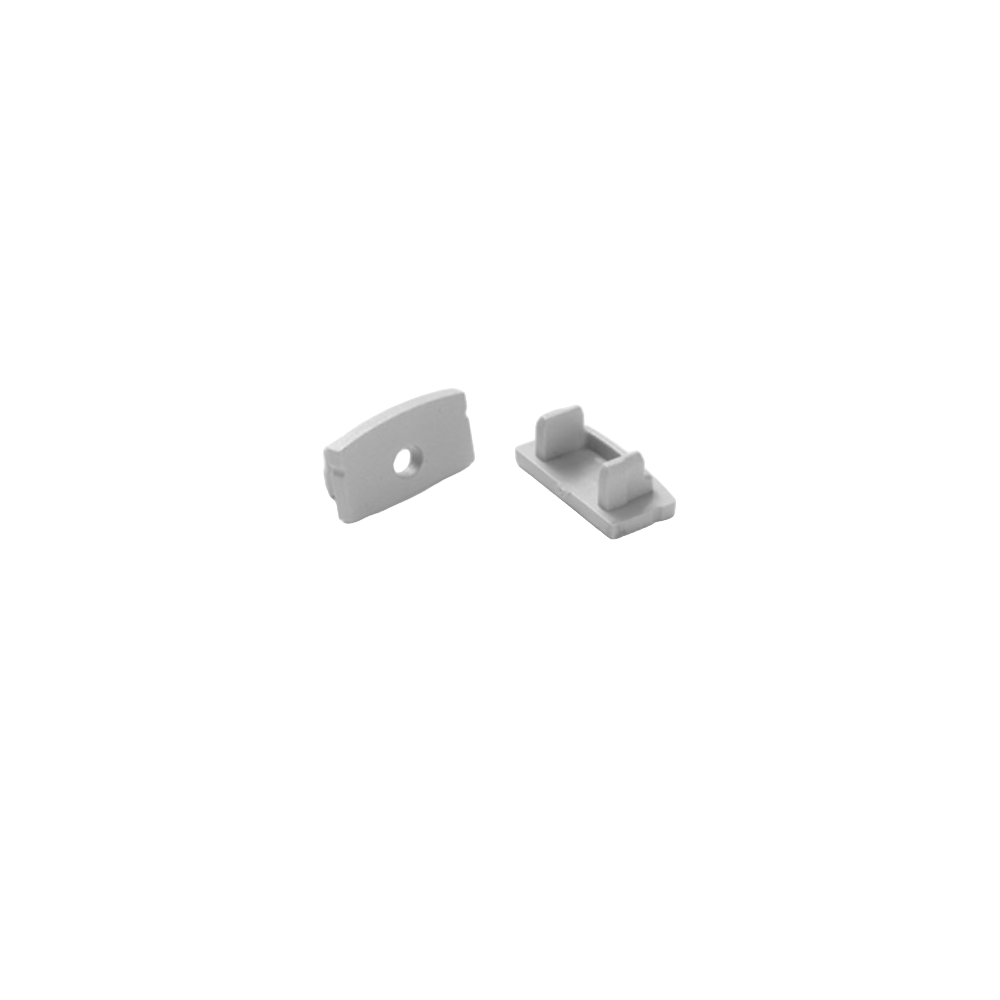

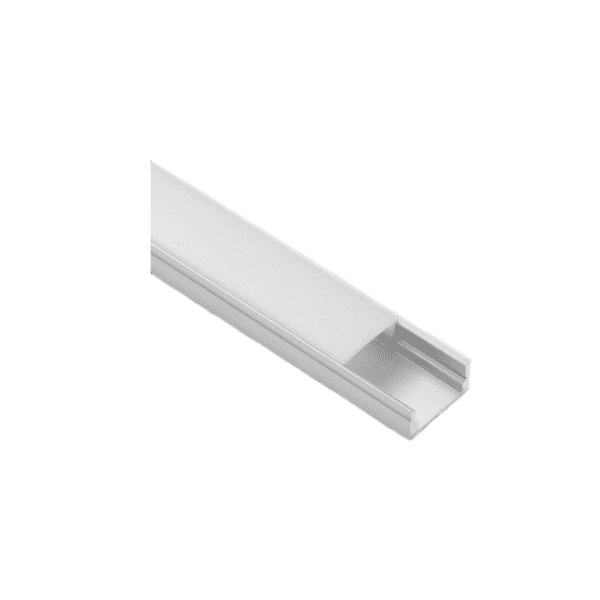

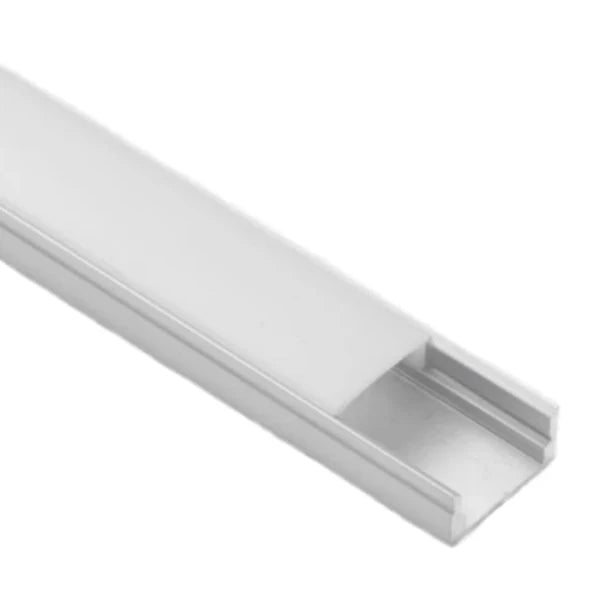

Surface Mount Aluminum Profile with White Diffused Cover Fits 8 mm and 10 mm wide strips 4 ft and 8 ft lengths. Sold in pack of 10. Every piece comes packaged with 4 end caps, 4 mounting brackets and 4 screws with counter sink head.
Specifications:
Brand: Lotus LED Lights
SKU: LH-1708-SW-4FT
UPC: 782588049618
Finish: White
Type: AccessoryLength: 4'
Width: 0.69"
Height: 0.63"
It's a smart move to put this front and center on your Product Detail Pages (PDPs). Freight costs for long items like aluminum profiles can be a nasty surprise for customers at checkout, so transparency here will definitely save your customer service team some headaches.
Since Shopify customers are often looking for quick, digestible info, I've broken down your image into a clean format you can copy-paste.
Shipping & Dimensions Reference
Note on Freight: Due to the length and nature of aluminum profiles, standard freight shipping is not automatically calculated at checkout. Orders can be shipped via your carrier collect account, or we can provide a freight quote for approval via email after your order is placed.
Product Specifications
| Model | Size | Case Dimensions | 10-Pack Dimensions | 10-Pack Weight |
| 1708 | 4FT | 54" x 10" x 11" | 54" x 3" x 3" | 7 lbs |
| 8FT | 103" x 10" x 11" | 103" x 3" x 3" | 13 lbs | |
| 2408 | 4FT | 55" x 10" x 10" | 54" x 3" x 3" | 7 lbs |
| 8FT | 103" x 11" x 11" | 103" x 3" x 3" | 13 lbs | |
| 1415 | 4FT | 55" x 11" x 11" | 54" x 3" x 3" | 7 lbs |
| 8FT | 103" x 11" x 11" | 103" x 3" x 3" | 13 lbs | |
| 2515 | 4FT | 56" x 10" x 10" | 54" x 3" x 3" | 7 lbs |
| 8FT | 104" x 7" x 10" | 103" x 3" x 3" | 13 lbs | |
| 1818 | 4FT | 55" x 11" x 11" | 54" x 3" x 3" | 9 lbs |
| 8FT | 103" x 11" x 11" | 103" x 3" x 3" | 17 lbs | |
| 5713 | 4FT | 56" x 10" x 11" | 54" x 5" x 5" | 10 lbs |
| 8FT | 103" x 11" x 11" | 103" x 5" x 5" | 19 lbs |
