Gigabit PoE Splitter - 12V 3A Output (36W), 802.3af/at Input 42-57V (30W) | POEJK-S1230B
Regular price
$61.10
Shipping, returns & support
- ShippingFree standard shipping in Canada over $200.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Gigabit PoE Splitter – 12V 3A Output (36W), 802.3af/at Input 42–57V | POEJK-S1230B
The POEJK-S1230B is a higher-capacity Gigabit IEEE 802.3af/at PoE splitter that turns 42–57V PoE input into a regulated 12V, 3A DC out...
Key specifications
| Component type | Splitter |
|---|
Product identifiers
- VendorGrid Networking
- SKUPOEJK-S1230B
- MPNPOEJK-S1230B
- GTIN'605258798916
- Barcode605258798916
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Gigabit PoE Splitter – 12V 3A Output (36W), 802.3af/at Input 42–57V | POEJK-S1230B

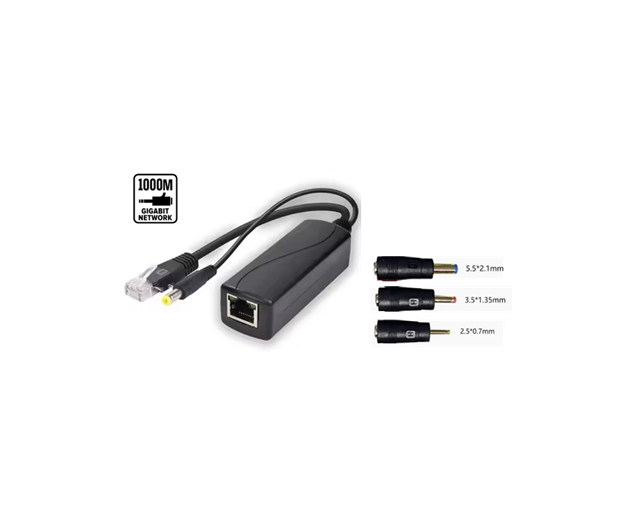

The POEJK-S1230B is a higher-capacity Gigabit IEEE 802.3af/at PoE splitter that turns 42–57V PoE input into a regulated 12V, 3A DC output (36W). It is supplied with a DC 5.5 × 2.5 mm barrel connector and three barrel adapters so you can match many 12V devices without changing the cable.
Key features
- Gigabit PoE splitter – designed for Gigabit Ethernet links.
- IEEE 802.3af/at input – PoE/IN: 42–57V (30W).
- 12V DC output – DC/OUT: 12V / 3A (36W).
- Primary connector – DC 5.5 × 2.5 mm barrel connector.
-
Included adapters:
- DC 5.5 × 2.1 mm adapter
- DC 3.5 × 1.35 mm adapter
- DC 2.5 × 0.7 mm adapter
Technical highlights
| Parameter | Value |
|---|---|
| Model | POEJK-S1230B |
| Function | Gigabit IEEE802.3af/at PoE splitter |
| PoE input | 42–57V (30W) |
| DC output | 12V / 3A (36W) |
| Ethernet | Gigabit |
| Barrel connector | DC 5.5 × 2.5 mm |
| Included adapters | 5.5 × 2.1 mm; 3.5 × 1.35 mm; 2.5 × 0.7 mm |
Ideal applications
- Locations where a 12V / 36W load is needed but only a PoE cable run is available.
- Non-PoE 12V devices that rely on common barrel connector sizes.
Specifications (input range, output rating and connector set) are taken directly from the GRID Networking catalog and 2025 dealer price list and are subject to change without notice.
