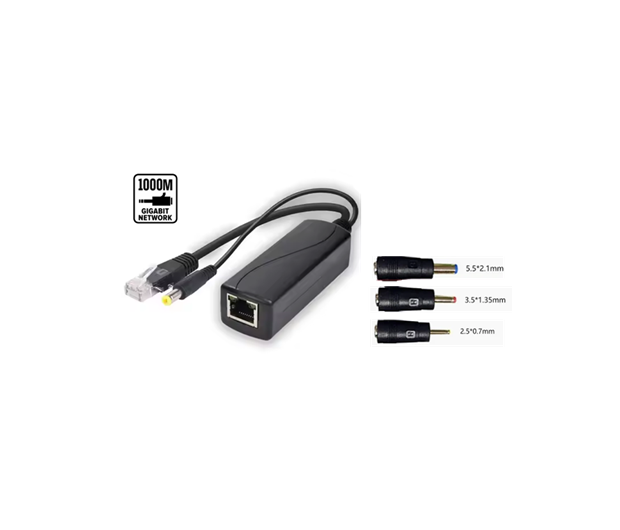

Product Marketing image of the Grid Networking SKU POEJK-S1224B - Gigabit PoE Splitter - 12V 2A Output (24W), 802.3af/at Input 44-57V (30W) | POEJK-S1224B
Product Marketing image of the Grid Networking SKU POEJK-S1224B - Gigabit PoE Splitter - 12V 2A Output (24W), 802.3af/at Input 44-57V (30W) | POEJK-S1224B
Grid Networking

Gigabit PoE Splitter - 12V 2A Output (24W), 802.3af/at Input 44-57V (30W) | POEJK-S1224B

In stock
SKU: POEJK-S1224B
$71.99 CAD
-20% $89.85 CAD $71.99 CAD

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

Gigabit PoE Splitter – 12V 2A Output (24W), 802.3af/at Input 44–57V | POEJK-S1224B

The POEJK-S1224B is a Gigabit IEEE 802.3af/at PoE splitter that accepts 44–57V PoE input and provides a regulated 12V, 2A DC output (24W). It lets you power 12V devices from an existing PoE line using a standard DC barrel connector and included barrel-adapter set.

Key features

  • Gigabit PoE splitter – Gigabit Ethernet with inline PoE power conversion.
  • IEEE 802.3af/at input – PoE/IN: 44–57V (30W).
  • 12V DC output – DC/OUT: 12V / 2A (24W).
  • Primary connector – DC 5.5 × 2.5 mm barrel connector.
  • Included adapters:
    • DC 5.5 × 2.1 mm adapter
    • DC 3.5 × 1.35 mm adapter
    • DC 2.5 × 0.7 mm adapter

Technical highlights

Parameter Value
Model POEJK-S1224B
Function Gigabit IEEE802.3af/at PoE splitter
PoE input 44–57V (30W)
DC output 12V / 2A (24W)
Ethernet Gigabit
Barrel connector DC 5.5 × 2.5 mm
Included adapters 5.5 × 2.1 mm; 3.5 × 1.35 mm; 2.5 × 0.7 mm

Ideal applications

  • Supplying 12V / 24W class devices from an IEEE 802.3af/at PoE line.
  • Deployments where the only cabling to a location is Ethernet, but a 12V barrel-powered device is required.

All values and connector information are taken from the GRID Networking catalog and 2025 dealer price list. Specifications may change without notice.
