Overview

The Lotus AD-107T 3" LED puck is a low profile, low voltage puck light that is ideal for Canadian kitchens, offices and built-ins where you want bright task lighting without bulky fixtures. At only 1/4" thick and powered by safe 12V DC, it is easy for electricians and cabinet makers to tuck under cabinets, inside display cases or along coves.

Each puck includes three trim colours (White, Black and Brushed Nickel) plus a surface mount bracket, so you can match hardware on site without stocking multiple SKUs. Single pucks or 3-packs with transformer give you flexibility for small or larger projects.

Key Features

• Ultra slim profile: Only about 1/4" thin for surface mount or 1/8" thin when recessed, keeping your under-cabinet or display lighting clean and unobtrusive.

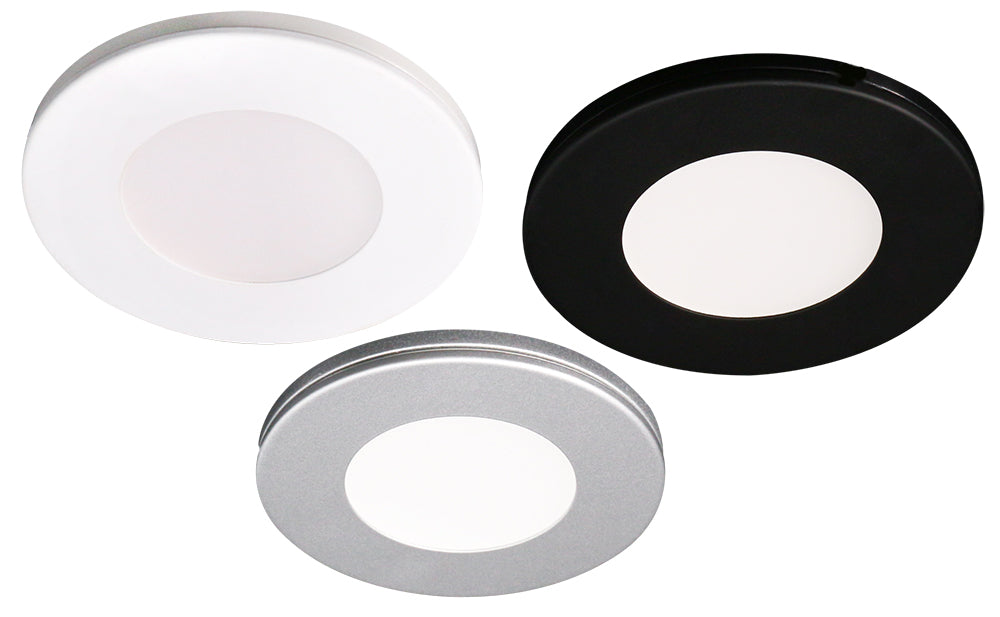

• 3 trim colours included: Each AD-107T puck ships with White, Black and Brushed Nickel trims plus a white surface mount bracket for maximum flexibility on Canadian jobsites.
• Safe 12V DC operation: Low voltage 12V DC constant voltage input is ideal for kitchens, millwork and display lighting and works with Lotus plug-in or hard-wired drivers.
• Bright, efficient light: Uses only 2.2W while delivering about 150 lumens at 3000K or 170 lumens at 4000K, replacing roughly a 15W halogen puck.
• High CRI 90+: Accurate colour rendering makes countertops, cabinets and merchandise look natural and true to colour.
• Dimmable with hard-wired driver: Plug-in driver is non-dimmable, but when paired with the Lotus hard-wired driver the system is TRIAC dimmable from 10–100% on standard 120V dimmers.
• Damp location & airtight: cETLus listed, damp rated and airtight, so it can be used in kitchens, bathrooms and other covered damp locations in Canadian homes and businesses.
• Proven longevity: Rated for 70% light output at 50,000 hours with a 3 year warranty when installed with a Lotus LED driver.

Canadian Use Cases

• Kitchen under-cabinet task lighting over counters and prep areas.
• Display cabinets and retail shelving where small form factor and clean trims matter.
• Office millwork, reception desks and feature walls needing accent lighting.
• Cottages and trailers using 12V DC low voltage systems.
• Garage workbenches and hobby rooms that need bright task lighting in cold climates down to around -20°C.

Technical Details (AD-107T series)

• Model family: AD-107T 3" Ultra Slim LED Puck
• Single 3000K SKU: AD-107T-3K
• Single 4000K SKU: AD-107T-4K
• 3-pack SKUs: 3P-AD-107T-3K (3000K, includes plug-in driver & hub), 3P-AD-107T-4K (4000K, includes plug-in driver & hub)
• Energy used: 2.2 W per puck
• Light output: Approx. 150 lm at 3000K, 170 lm at 4000K
• Colour temperatures: 3000K or 4000K, depending on variant
• Input voltage: 12V DC constant voltage
• Beam angle: 120° wide spread
• CRI: 90+
• Halogen equivalent: ~15W puck
• Location rating: Damp location, airtight
• Ambient temperature: -4°F (-20°C) to +104°F (+40°C)
• Dimensions: Outer diameter 3", inner cutout approx. 2 1/4"
• Thickness: ~1/4" thin surface mounted, ~1/8" thin recessed
• Certifications: cETLus
• Lifetime: L70 at 50,000 hours
• Warranty: 3 years when installed with a Lotus LED driver

What’s Included

• Single puck (AD-107T-3K or AD-107T-4K): 1 LED puck with 3 trims (White, Black, Brushed Nickel), 1 white surface mount bracket, pre-attached low voltage lead.

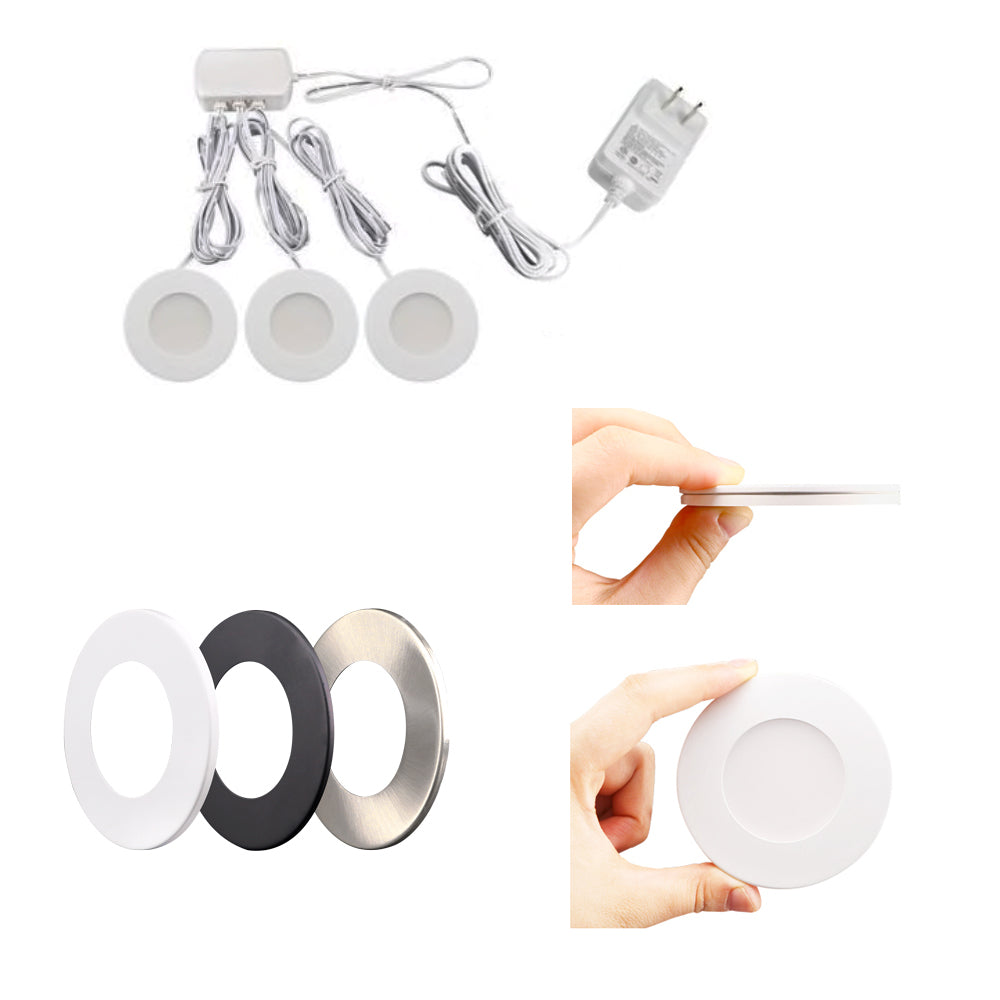

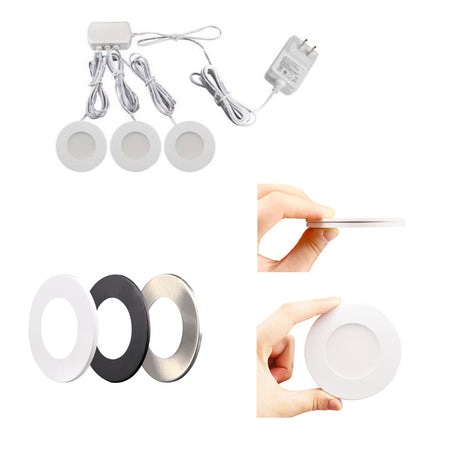

• 3-pack (3P-AD-107T-3K or 3P-AD-107T-4K): 3 pucks with 3 trims each, cables, 6-port hub and 120V AC / 12V DC 12W plug-in driver (non-dimmable).

Common Questions

• Do these puck lights come with all three trim colours?
  Yes. Each AD-107T puck includes White, Black and Brushed Nickel trims plus a white surface mount bracket, so you can choose the finish on site.
• Are they dimmable?
  When used with the plug-in driver included in the 3-pack they are not dimmable. To dim, use a compatible Lotus hard-wired 12V driver and a standard TRIAC wall dimmer (10–100% dimming range).
• Can I surface mount and recess mount?
  Yes. The AD-107T can be surface mounted with the supplied bracket (about 1/4" thick overall) or recessed into a 2 1/4" cutout for an even more flush look.
• Where are these best used in Canada?
  They are ideal for indoor under-cabinet, cove, display and task lighting in kitchens, offices, shops and cottages. For wet locations or exterior use, choose a rated fixture designed for those environments.
