Lotus LED 11W/15W Selectable 0-10V Dimmable Driver 120-347V Residential J-Box (LD-11-15-010-R) | LD-11-15
Regular price
$31.44
Shipping, returns & support
- ShippingFree standard shipping in Canada over $250.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview

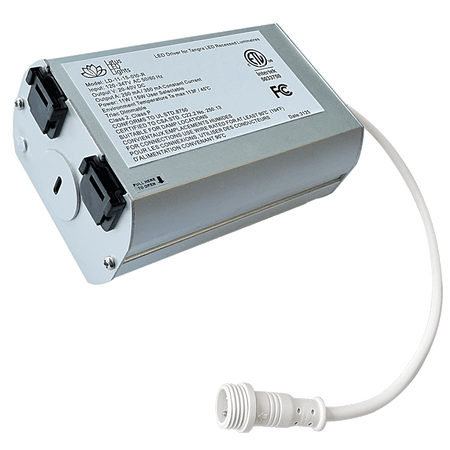

The Lotus LED LD-11-15 is a high-performance, low-profile driver engineered specifically for seamless compatibility with Tangra 3" recessed lighting fixtures. Housed in a robust junction box and fully encapsu...
Technical profile
- Voltage120V-347V
- Wattage15
- Dimming / control0–10V
- Mount typeRecessed Mount
- EnvironmentDamp Location
Key specifications
| Voltage | 120V-347V |
|---|---|
| Wattage | 15 |
| Dimming / control | 0–10V |
| Environment | Damp Location |
| Mount type | Recessed Mount |
| Component type | LED Driver |
| Product family | Ultimate Series |
Product identifiers
- VendorLotus LED Lights
- SKULD-11-15-010-R
- MPNLD-11-15-010-R
- GTIN'652659041783
- Barcode652659041783
- Product familyUltimate Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED LD-11-15 is a high-performance, low-profile driver engineered specifically for seamless compatibility with Tangra 3" recessed lighting fixtures. Housed in a robust junction box and fully encapsulated in thermally conductive gel, this driver ensures optimal heat dissipation and architectural-spec reliability for both new construction and retrofit applications.
Key Features
- User-selectable wattage allows for toggling between 11W and 15W outputs to customize light levels per zone.
- Dimmable functionality supports both 120V Triac (Forward/Reverse Phase) and 120-347V 0-10V protocols.
- Housed in a contractor-grade junction box with available quick-connect terminals or standard knockouts.
- Open Plenum rated and certified for damp locations, ensuring versatile installation across diverse environments.
- Architectural-spec lifespan of 50,000 hours, backed by a comprehensive manufacturer warranty.
Technical Specifications
- Brand: Lotus LED
- Input Voltage: 120V AC or 120V-347V AC (model dependent)
- Output Wattage: 11W / 15W (Selectable)
- Output Current: 250mA (11W) / 350mA (15W)
- Output Voltage: 20V - 40V DC
- Dimming Protocols: Triac / Phase Cut or 0-10V
- Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
- Projected Life: 50,000 Hours
- Certifications: cETLus, FCC, Open Plenum
- Location Rating: Damp Location
- J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
