Overview

The Comtrend PG-9172-KIT is a two-adapter G.hn powerline kit that turns your existing electrical outlets into a wired Ethernet connection. It delivers up to 1200Mbps (PHY) between the two adapters, giving you a stable, low-latency link for TVs, consoles, and home offices in another room without pulling new Ethernet cable.

This compact kit is ideal for Canadian homes and small offices where Wi-Fi struggles through floors, concrete, or older construction, and where you just want reliable Ethernet without extra Wi-Fi radios or pass-through outlets.

Key Features & Benefits

• Complete 2-adapter starter kit – includes two PG-9172 G.hn powerline adapters, so you have everything you need to connect two rooms out of the box.
• G.hn powerline up to 1200Mbps PHY – uses your home’s electrical wiring as a high-speed backbone, often more stable than Wi-Fi extenders. Actual throughput depends on wiring quality and distance.
• 1 x Gigabit Ethernet port per adapter – hardwire a smart TV, gaming console, desktop, switch, or NVR for smoother streaming and lower latency.
• HomeGrid & TR-069 ready – HomeGrid-certified G.hn with remote management support for service provider and managed installs.
• Improved video performance – G.hn technology with OFDM and advanced FEC is designed to reduce interference and maximize video throughput compared to older powerline standards.
• Secure at the push of a button – AES 128-bit encryption between adapters, with a one-button security/pairing process.
• Expandable network – add more compatible Comtrend G.hn powerline adapters (up to 16 total) as your networking needs grow.

Canadian Use Cases

• Living room or basement TV – get a wired connection to a streaming box or smart TV where you only have an electrical outlet.
• Gaming rooms – move your console or gaming PC away from the router without suffering Wi-Fi lag or packet loss.
• Home offices – improve VPN and video call stability in an upstairs or downstairs office where Wi-Fi is inconsistent.
• Suites & multi-level homes – cleanly extend internet into rental suites, lofts, and bonus rooms with finished walls.
• Small businesses – connect POS terminals, back-office PCs, or network printers without running new cable.

How It Works

• Adapter 1 plugs into a wall outlet near your modem/router and connects with an Ethernet cable.
• Adapter 2 plugs into a wall outlet in the room where you want a wired connection and connects to your device (TV, console, PC, switch, etc.).
• The two adapters communicate over the electrical wiring to form a secure G.hn powerline link.

Technical Details

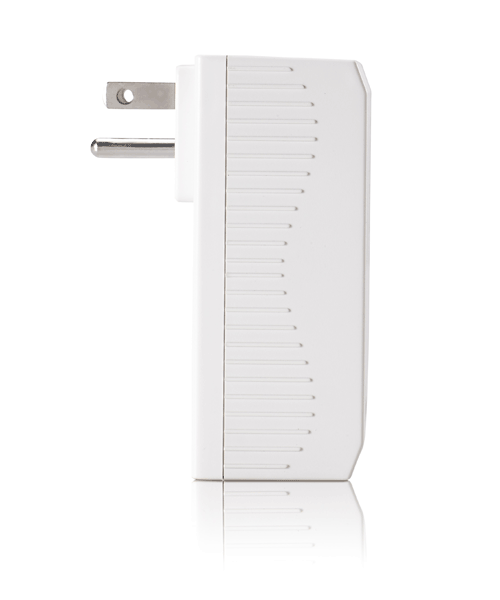

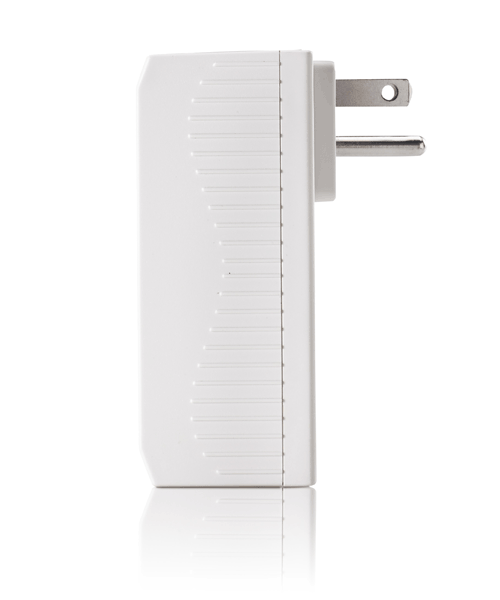

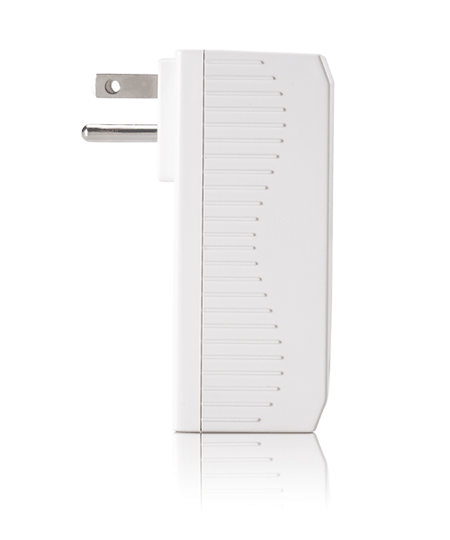

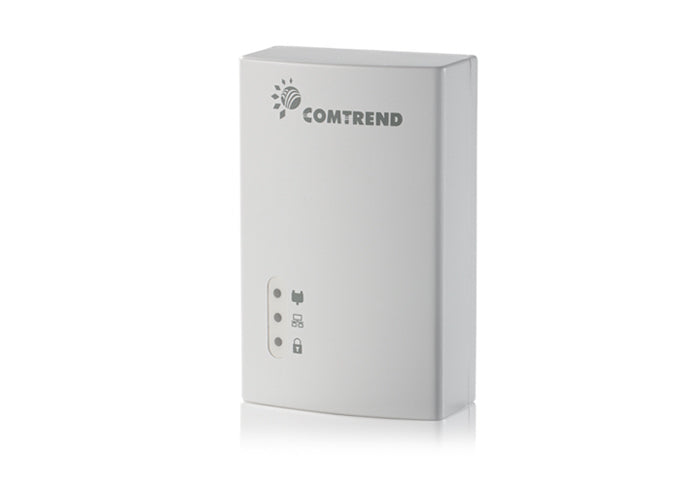

• Model (each unit): Comtrend PG-9172 G.hn Powerline Ethernet Adapter
• Technology: G.hn powerline, up to 1200Mbps PHY over electrical wiring

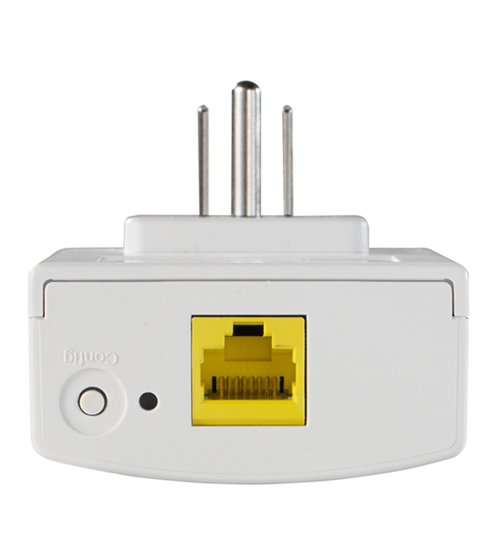

• Ethernet: 1 x RJ-45 10/100/1000Base-T auto-sensing port per adapter
• Standards: IEEE 802.3u/802.3ab, HomeGrid Forum certified
• Security: AES 128-bit encryption; one-button security set-up
• QoS & protocols: 802.1D bridge, 802.1Q VLAN, QoS, IGMP/MLD snooping
• Management: HTTP web UI; firmware upgrade via TFTP; TR-069 supported
• Network capacity: Minimum two G.hn adapters required; supports up to 16 G.hn powerline nodes
• Power input: 100–240VAC, 50/60Hz; auto power-saving mode (max 0.5W in standby)
• Operating environment: Indoor, 0–40°C, 8–95% RH (non-condensing)
• Approx. dimensions (per adapter): 93(H) x 59.6(W) x 56/35(D) mm (with/without plug)
• Certifications: IC, UL/cUL, CE, FCC, HomeGrid Forum certified

What’s Included

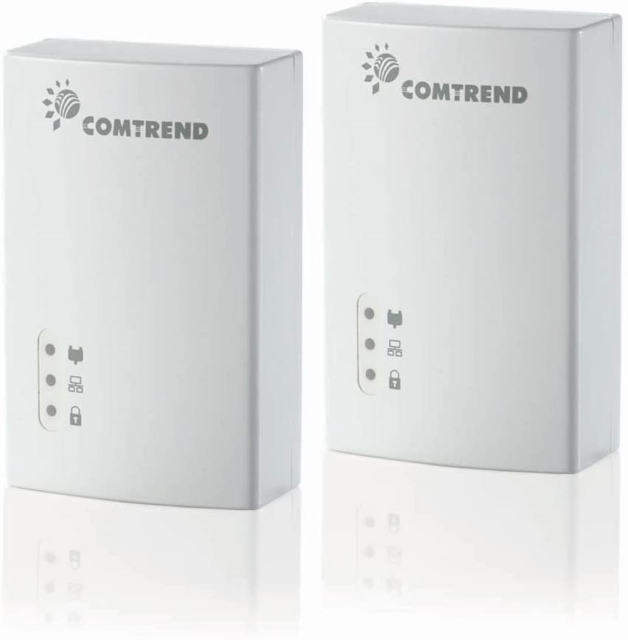

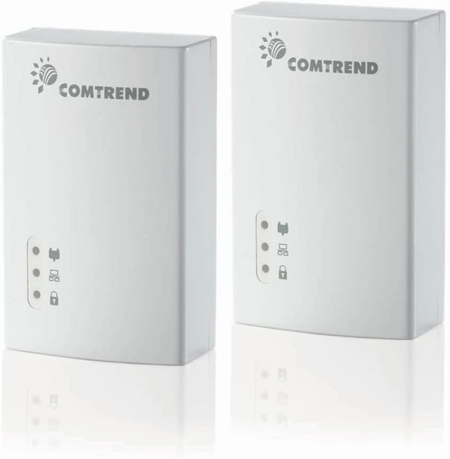

• 2 x Comtrend PG-9172 G.hn Powerline Ethernet Adapters
• TODO: Confirm whether Ethernet cables and a quick start guide are included in the kit packaging.

Common Questions

• What’s the difference between this kit and the PG-9172PT-KIT?
  This PG-9172-KIT uses the compact PG-9172 adapters without pass-through outlets. The PG-9172PT-KIT adds a built-in pass-through AC outlet on each adapter if you don’t want to “lose” a plug.
• Will it work in older Canadian homes?
  In many cases, yes. G.hn is designed for noisy and mixed-quality wiring, but actual speeds depend on wiring condition, distance between outlets, and what’s plugged into the same circuits.
• Is this better than a Wi-Fi extender?
  Wi-Fi extenders repeat wireless signals and can add latency or cut throughput. A G.hn powerline kit uses a wired path over electrical wiring, which is often more stable for streaming and gaming between floors or through dense construction.
