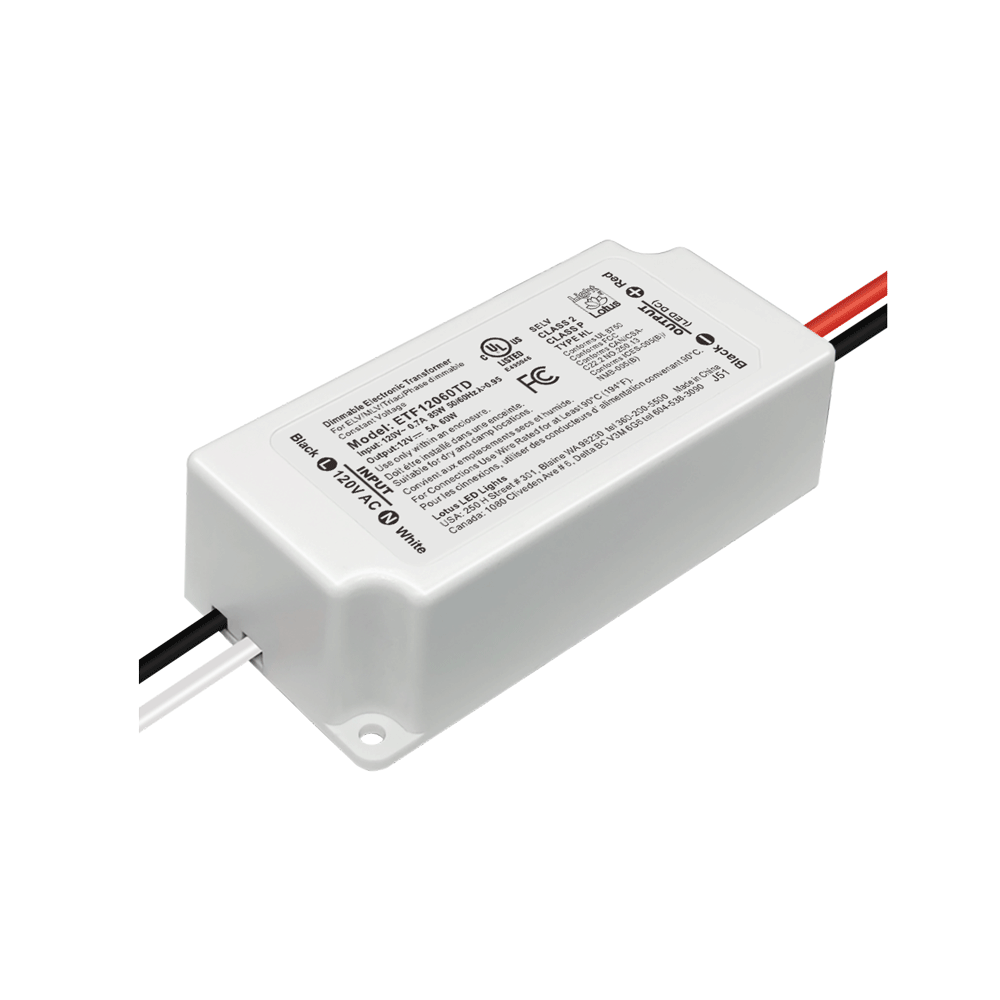

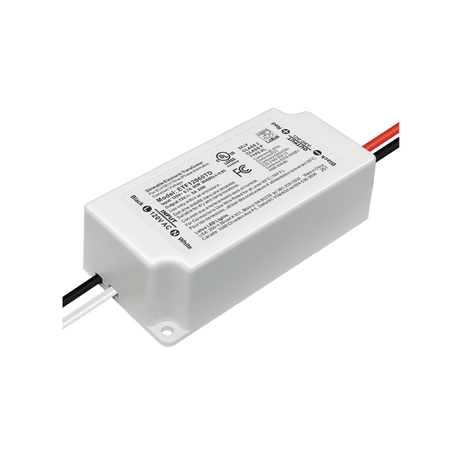

Lotus 12V DC 60W Mini Electronic Transformer Triac Dim 120VAC | ETF12060TD

In stock
SKU: ETF12060TD
Regular price $50.99

Shipping, returns & support

Quick product facts

Quick summary
12V DC 60W Mini Electronic Transformer Triac Dim 120VAC   Technical Specifications Input Voltage: 120 V AC Output Voltage: 12 V DC +/- 1V Output Amps: 5 A Power: 60 W riac / ELV / MLV Dimmable Min/Max Load: 20% to 8...

Technical profile

  • Voltage120V
  • Wattage60
  • Dimming / controlTriac Dimmable
  • Mount typeRecessed Mount
  • Trim styleStandard Trim

Key specifications

Voltage 120V
Wattage 60
Dimming / control Triac Dimmable
Mount type Recessed Mount
Trim style Standard Trim
Component type LED Driver

Product identifiers

  • VendorLotus LED Lights
  • SKUETF12060TD
  • MPNETF12060TD
  • GTIN'769152014449
  • Barcode769152014449

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

12V DC 60W Mini Electronic Transformer Triac Dim 120VAC



  • Input Voltage: 120 V AC
  • Output Voltage: 12 V DC +/- 1V
  • Output Amps: 5 A
  • Power: 60 W
  • riac / ELV / MLV Dimmable
  • Min/Max Load: 20% to 80%
  • THD < 20%
  • Efficiency 88% @ 120V AC
  • Ambient Operating Temperature: -40°F (-40°C) to +140°F (+60°C), 20-95% RH
  • Compliance: c UL us Listed, Class 2, Type HL

DIMENSIONS:

  • Length 3 1/4"; Width 1 5/8"; Depth 1"

Product Features

  • 12V DC 60W Class 2 Mini Electronic Transformer
  • Super Compact – fits in limited spaces
  • Dimmable Triac – Leading & Trailing Edge Dimmers
  • Optional Junction Box with Line & Low Voltage Chambers
  • c UL us Listed, Class 2, Type HL
  • Warranty: 3 Year
