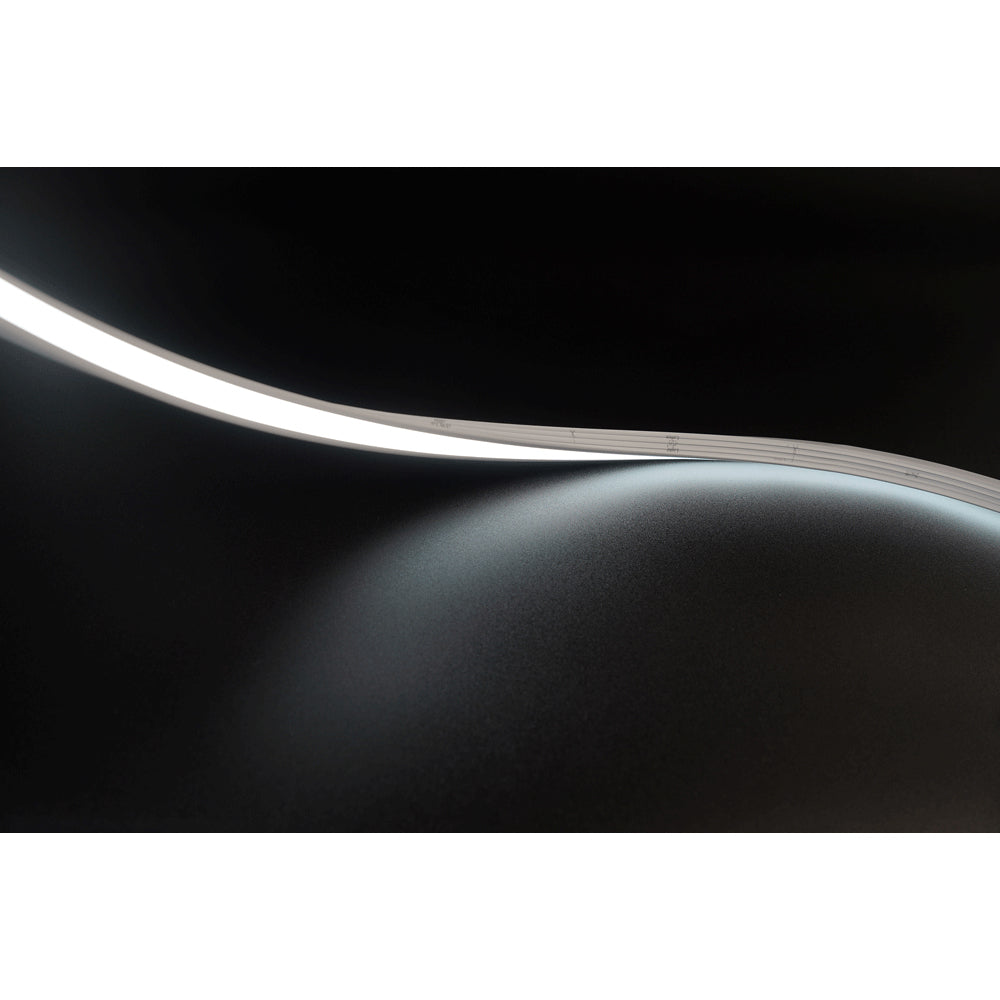

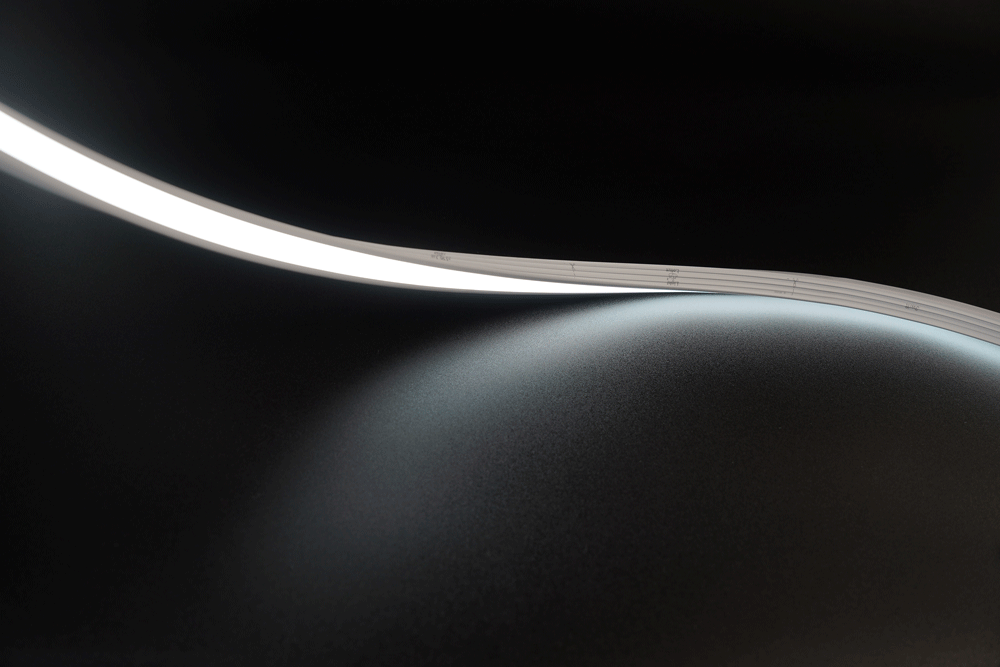

Lotus Surface Mount 3D Bendable LED Neonflex 24V DC 2.4W/ft 10mm CRI 90+ IP67 | ES-1010HB-C-10W-IP67
Regular price
$68.50
Shipping, returns & support
- ShippingFree standard shipping in Canada over $250.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED Recessed Mount Side Bendable LED Neonflex is an architectural-spec, waterproof linear lighting solution designed for seamless integration into surfaces. This 24V constant voltage fixture provide...
Highlights
- Total creative freedom
- bends around complex 3D shapes for truly unique architectural details.
Technical profile
- Voltage24V
- Wattage10
- Light temperature2700K
- Dimming / controlTriac Dimmable
- CRI90
- Mount typeRecessed Mount
Key specifications
| Voltage | 24V |
|---|---|
| Wattage | 10 |
| Light temperature | 2700K |
| Dimming / control | Triac Dimmable |
| CRI | 90 |
| Environment | Wet Location |
| Mount type | Recessed Mount |
| Shape | Linear |
| Trim style | Standard Trim |
| Component type | Tape Light |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKUES-1010HB-C-10W-IP67-40K-4FT
- MPNES-1010HB-C-10W-IP67-27K-16FT
- GTIN'769152010618
- Barcode782588049472
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED Recessed Mount Side Bendable LED Neonflex is an architectural-spec, waterproof linear lighting solution designed for seamless integration into surfaces. This 24V constant voltage fixture provides a smooth, hotspot-free glow without the need for a diffused cover or aluminum channel, making it ideal for high-end recessed undercabinet and linear accent applications. Engineered with a reinforced design, it ensures stable performance during side-bending installations in both indoor and outdoor wet locations.
Key Features
- Seamless Linear Output: Delivers uniform illumination with no hotspots, eliminating the requirement for additional bulky aluminum channels or covers.
- Architectural-Spec Construction: Features a 4 oz copper PCB and real gold wires to ensure superior light maintenance and long-term durability.
- Side-Bendable Flexibility: Specifically designed with a reinforced structure to maintain stable performance and light quality when bending horizontally.
- Wet Location Rated: IP67 waterproof construction allows for reliable use in demanding environments, supported by a 3-year outdoor warranty.
- Vibrant Color Accuracy: Boasts a CRI of 90+ for high-quality color rendering in professional lighting designs.
Technical Specifications
- Input Voltage: 24V DC
- Power Consumption: 3 W/ft (10 W/m)
- Light Output: 180 lm/ft to 204 lm/ft depending on CCT
- Color Temperature: 2700K, 3000K, 4000K, 5000K
- CRI: 90+
- Beam Angle: 110°
- Dimmable: Yes
- IP Rating: IP67 (Wet Location)
- Dimensions: 3/8" x 3/8" (10 mm x 10 mm)
- Cuttable Increment: 4" (100 mm)
- Minimum Bending Diameter: 4" (100 mm) Horizontal
- Maximum Connection Length: 16 ft
- Operating Temperature: -4°F (-20°C) to +113°F (+45°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus
- Warranty: 5 Year Indoor / 3 Year Outdoor (when used with Lotus LED Lights driver)
