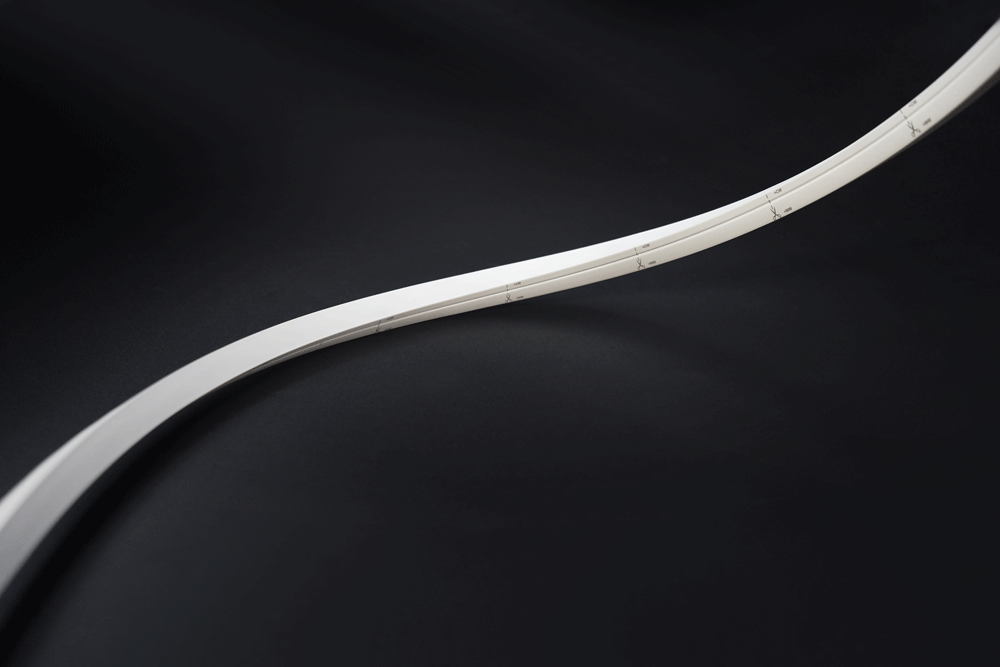

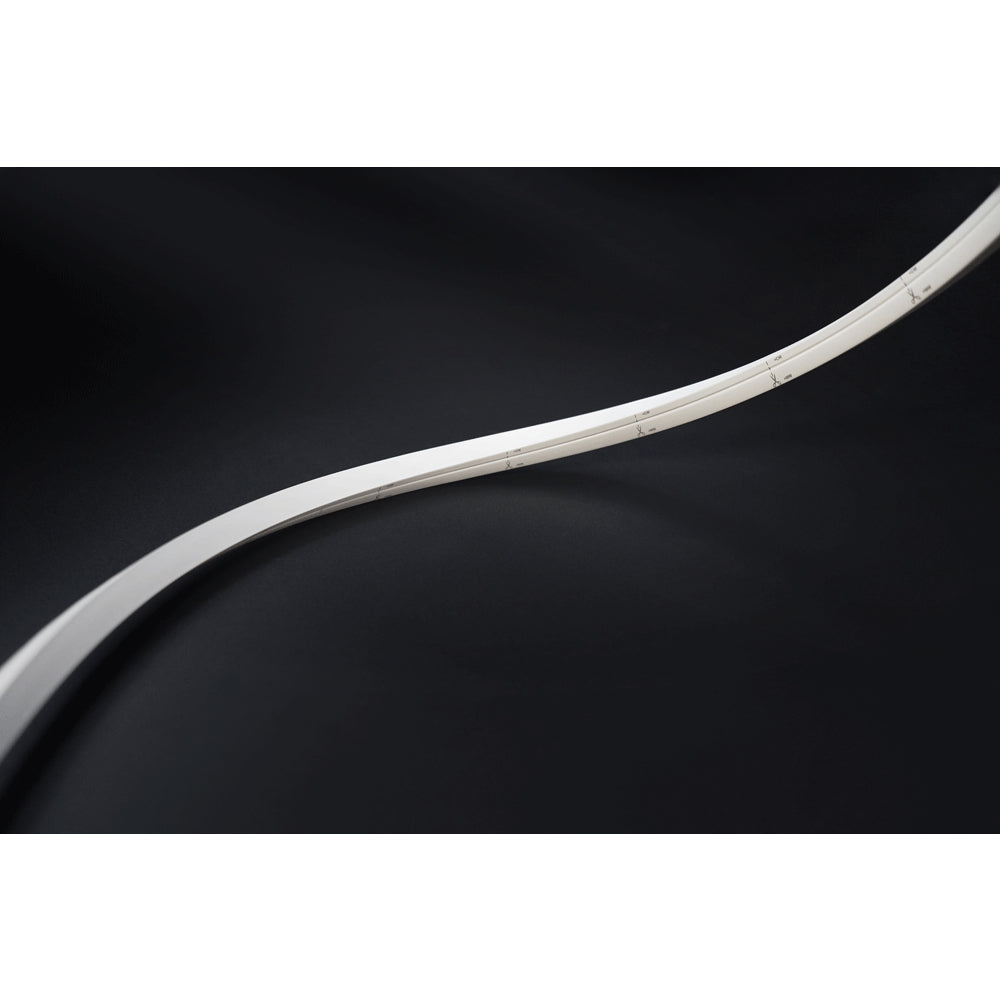

Lotus Recessed Mount Side Bendable LED Neonflex 24V DC 3W/ft 10mm CRI 90+ IP67 | ES-1010A-C-8W-IP67
Regular price
$131.99
Shipping, returns & support
- ShippingFree standard shipping in Canada over $250.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED Surface Mount 3D Bendable Neonflex is an architectural-spec linear lighting solution designed for complex curves and waterproof applications. This 24V constant voltage fixture features a reinfor...
Highlights
- The sleek solution for curved bars or retail shelving
- provides a dot-free architectural glow.
Technical profile
- Voltage24V
- Wattage8
- Light temperature2700K
- Dimming / controlTriac Dimmable
- CRI90
- Mount typeRecessed Mount
Key specifications
| Voltage | 24V |
|---|---|
| Wattage | 8 |
| Light temperature | 2700K |
| Dimming / control | Triac Dimmable |
| CRI | 90 |
| Environment | Wet Location |
| Mount type | Recessed Mount |
| Shape | Linear |
| Component type | Recessed Downlight |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKUES-1010A-C-8W-IP67-50K-8FT
- MPNES-1010A-C-8W-IP67-27K-16FT
- GTIN'769152010731
- Barcode769152010724
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED Surface Mount 3D Bendable Neonflex is an architectural-spec linear lighting solution designed for complex curves and waterproof applications. This 24V constant voltage fixture features a reinforced design for stable performance when bending and twisting, making it ideal for high-end undercabinet, cove, and outdoor accent lighting.
Key Features
- 3D Bendable Design: Engineered for high flexibility, allowing for stable performance during complex bending and twisting.
- Architectural-Spec Quality: Constructed with a 4 oz copper PCB and real gold wires for superior light maintenance and durability.
- Seamless Linear Output: Provides uniform illumination with no hotspots, eliminating the need for a diffused cover or aluminum channel.
- Wet Location Rated: IP67 waterproof rating ensures reliable performance in outdoor and high-moisture environments.
- High Color Rendering: CRI 90+ rating for vibrant, accurate color representation in professional applications.
Technical Specifications
- Input Voltage: 24V DC
- Power Consumption: 2.4 W/ft (8 W/m)
- Lumens: 590 lm/m to 690 lm/m (varies by CCT)
- Color Temperature: 2700K, 3000K, 4000K, 5000K
- CRI: 90+
- Beam Angle: 110°
- Dimmable: Yes
- IP Rating: IP67 (Wet Location)
- Dimensions: 3/8" x 3/8" (10 mm x 10 mm)
- Cuttable Increment: 4" (100 mm)
- Minimum Bending Diameter: 4 3/4" (120mm) Horizontal | 6" (150 mm) Vertical
- Maximum Connection Length: 16 ft
- Projected Life: 70% light output at 50,000 hours
- Operating Temperature: -4°F (-20°C) to +113°F (+45°C)
- Certifications: cULus
- Warranty: 5 Year Indoor / 3 Year Outdoor
