Overview

The Comtrend PG-9172PT-KIT is a two-adapter G.hn powerline starter kit with built-in pass-through electrical outlets. It uses your existing electrical wiring to carry network traffic at up to 1200Mbps (PHY), so you can hardwire TVs, gaming consoles, or home office gear in another room without pulling new Ethernet cable.

Each adapter has a pass-through outlet, so you don’t lose a plug, and a Gigabit Ethernet port for a stable, low-latency connection. This kit is a great fit for Canadian homes and small offices where Wi-Fi struggles through floors, concrete, or older construction.

Key Features & Benefits

• Complete 2-adapter starter kit – includes two PG-9172PT G.hn powerline adapters, so you have everything needed to create a link between two rooms.
• G.hn powerline up to 1200Mbps PHY – turns existing electrical wiring into a high-speed network backbone, often more stable than Wi-Fi extenders. Actual throughput depends on wiring quality and distance.

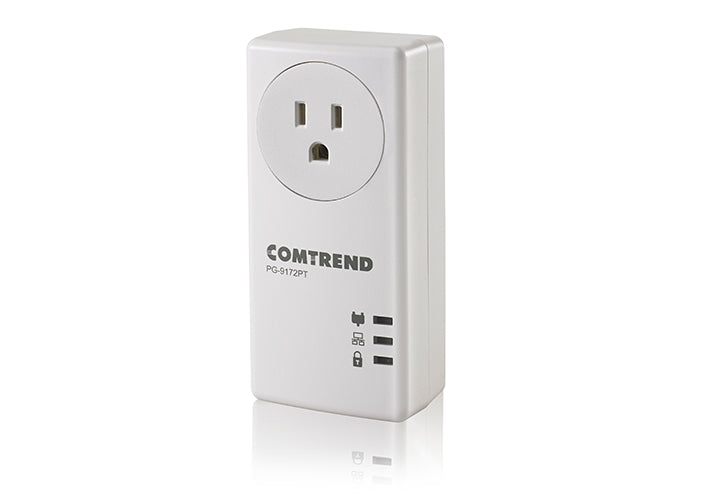

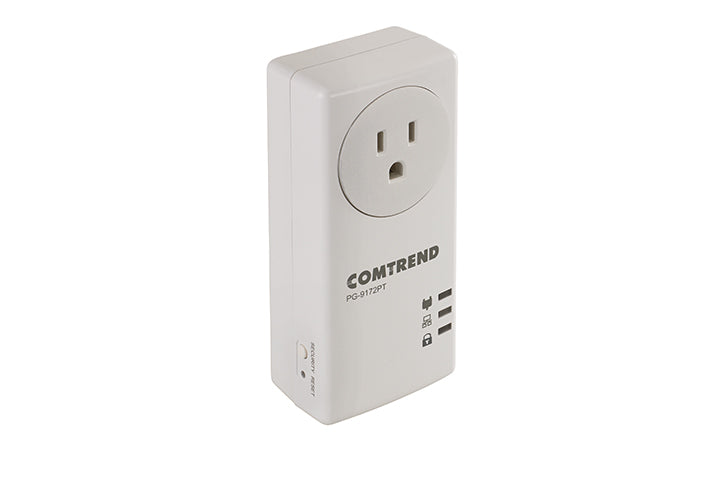

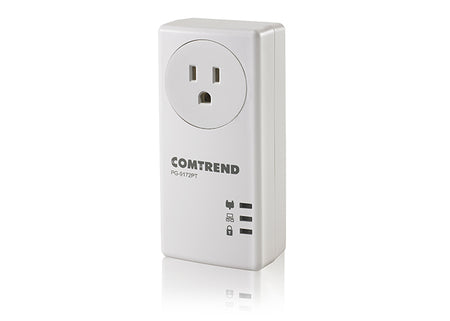

• Built-in pass-through AC outlet – plug the adapter into the wall and then plug a lamp, power bar or other device into the front outlet so you don’t give up a socket.
• 1 x Gigabit Ethernet port per adapter – hardwire smart TVs, consoles, desktops, switches or NVRs for lower latency than Wi-Fi alone.
• Improved video performance – G.hn technology with advanced FEC is designed to reduce interference and improve video streaming quality compared to older powerline standards.
• Secure at the push of a button – one-button pairing with AES 128-bit encryption between adapters.
• Expandable network – add more compatible Comtrend G.hn powerline adapters (up to 16 total) as your needs grow.

Canadian Use Cases

• Living room or basement TV – give your streaming box or smart TV a wired connection using only existing electrical outlets.
• Gaming setups – move your console or gaming PC away from the router without suffering Wi-Fi lag.
• Home offices – stabilize VPN and video calls in an upstairs or downstairs office where Wi-Fi is hit-and-miss.
• Suites & multi-level homes – extend internet cleanly into rental suites, lofts, or bonus rooms with finished walls.
• Small businesses – connect a POS terminal, back-office PC or network printer without new cable runs.

How It Works

• Adapter 1 plugs into a wall outlet near your modem/router and connects via Ethernet.
• Adapter 2 plugs into a wall outlet in the room where you want a wired connection and connects to your device (TV, console, PC, switch, etc.).
• The two adapters communicate over the electrical wiring to form a secure G.hn powerline link.

Technical Details

• Model (each unit): Comtrend PG-9172PT G.hn Powerline Adapter with Pass-Through Outlet
• Technology: G.hn powerline, up to 1200Mbps PHY rate over electrical wiring

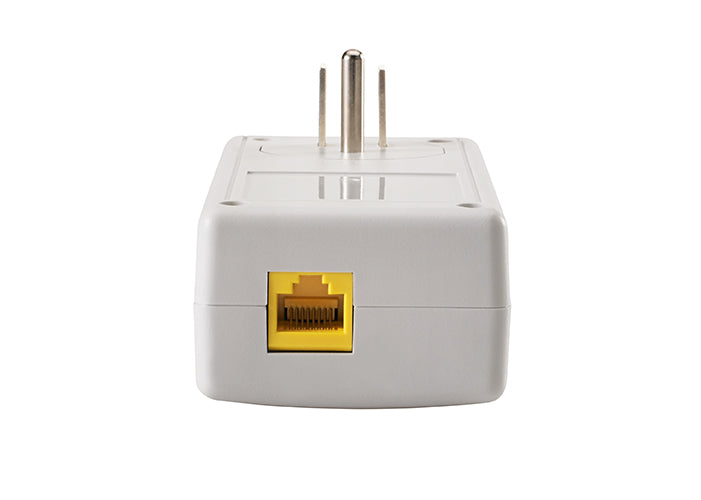

• Ethernet: 1 x RJ-45 10/100/1000Base-T auto-sensing port per adapter
• AC power: Integrated wall-plug input plus pass-through AC outlet (100–240VAC, 50/60Hz)
• Standby power: Auto power-saving mode, max 0.5W in standby
• Security: AES 128-bit encryption; one-button security set-up
• QoS & protocols: 802.1D bridging, 802.1Q VLAN, QoS, IGMP/MLD snooping
• Management: HTTP web-based UI; firmware upgrade via TFTP; TR-069 supported
• Network capacity: Supports up to 16 G.hn powerline nodes on one electrical network
• Operating environment: Indoor use, 0–40°C, 8–95% RH (non-condensing)
• Dimensions (per adapter): approx. 123mm (H) x 57mm (W) x 37mm (D, 55mm with plug)
• Certifications: FCC, IC, UL/cUL, ITU-T G.hn standard

What’s Included

• 2 x Comtrend PG-9172PT G.hn Powerline Adapters with Pass-Through Outlets
• TODO: Confirm whether Ethernet cables and printed quick start guide are included in the kit packaging.

Common Questions

• Can I use this kit by itself or do I need more adapters?
  This kit includes two adapters, which is the minimum needed to create a powerline link. You can add more compatible Comtrend G.hn adapters later if you want to extend the network to additional rooms.
• Will this work in older Canadian homes?
  In many cases, yes. G.hn is designed to handle noisy and mixed-quality wiring, but actual speeds will depend on wiring condition, distance between outlets, and what’s plugged into the same circuits.
• What happens to my outlets?
  Each adapter has a pass-through outlet on the front, so you can plug another device (like a power bar or lamp) into the adapter and avoid “losing” a socket.
• Is this better than a Wi-Fi extender?
  Wi-Fi extenders repeat wireless signals and can add latency or cut throughput. A G.hn powerline kit uses a wired path over electrical wiring, which is often more stable for streaming and gaming between floors or through dense construction.
