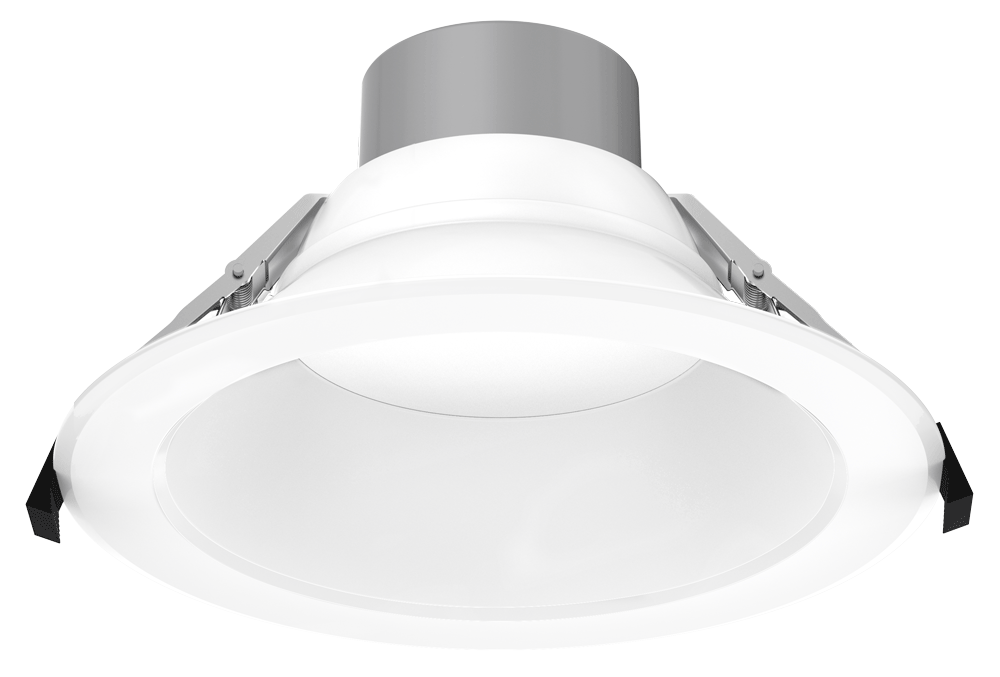

Lotus 8" Round Commercial 5 CCT & 5 Wattage Selectable | DL254-8-35W-M-A5C5-HO
Regular price
$102.99
Shipping, returns & support
- ShippingFree standard shipping in Canada over $200.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED DL254-8-35W-M-A5C5-HO is an architectural-spec 8-inch recessed lighting solution designed for high-ceiling commercial and professional residential environments. This high-output fixture features...
Technical profile
- Voltage120V-347V
- Wattage35
- Light temperature5CCT
- Dimming / control0–10V
- Lumens4,010
- CRI90
Key specifications
| Voltage | 120V-347V |
|---|---|
| Wattage | 35 |
| Light temperature | 5CCT |
| Dimming / control | 0–10V |
| Lumens | 4,010 |
| CRI | 90 |
| Environment | Wet Location |
| Housing ratings | ["IC Rated", "Air Tight"] |
| Mount type | Recessed Mount |
| Shape | Round |
| Size | 8 |
| Trim style | Standard Trim |
| Component type | Recessed Downlight |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKUDL254-8-35W-M-A5C5-HO
- MPNDL254-8-35W-M-A5C5-HO
- GTIN'782588046334
- Barcode782588046334
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED DL254-8-35W-M-A5C5-HO is an architectural-spec 8-inch recessed lighting solution designed for high-ceiling commercial and professional residential environments. This high-output fixture features a deep regressed design for superior glare control and visual comfort, delivering contractor-grade performance in a low-profile format.Key Features
- 5CCT field-selectable color temperature allows for on-site adjustment between 2700K, 3000K, 3500K, 4000K, and 5000K.
- Universal 120V-347V AC input ensures compatibility with standard residential and heavy-duty commercial electrical systems.
- High Output (HO) performance delivers up to 4250 lumens for maximum illumination in large-scale spaces.
- Type IC Rated and Airtight construction allows for direct contact with insulation without the need for a separate housing.
- Professional-grade 0-10V dimmable driver provides smooth, flicker-free control for advanced lighting designs.
Technical Specifications
- Energy Used: 35W
- Light Output: 3500 lm – 4250 lm
- Beam Angle: 55°
- CRI: 90+
- Input: 120V - 347V AC
- Dimmable: 0-10V
- Insulation Rating: Type IC Rated
- Location Rating: Wet Location (IP54)
- Air Tight: Yes
- Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Certification: cULus, Energy Star
- Warranty: 5 Year
- Aperture ID: 8"
- Trim OD: 9"
- Cut-out: 7 5/8" to 8 1/4"
