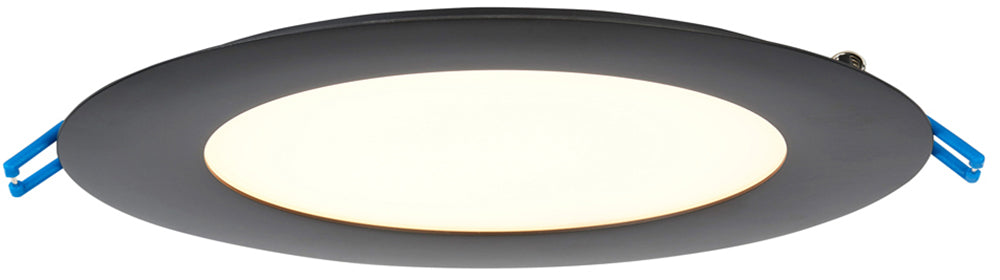

Lotus 8" Round Economy 18W 41K 1260 lm Black 110° IC Wet CRI 80 | LB8R

Overview

The Lotus LED 8-inch round economy super thin recessed fixture is an architectural-spec lighting solution designed to fit where no other recessed fixture can. At only 1/2-inch deep, this ultra-slim luminaire can be installed directly under joists for maximum layout flexibility in both residential and commercial applications.

Key Features

• Ultra-Slim Profile: Only 1/2" deep, allowing for installation in tight ceiling spaces and directly under joists.
• Integral Driver: Features a driver inside a connection box, eliminating the need for a separate junction box and saving on labor costs.
• IC Rated: Contractor-grade design approved for direct contact with insulation with no housing required.
• Versatile Application: Wet location rated and air-tight, making it suitable for showers, soffits, and insulated ceilings.
• Flexible Installation: Easy to install using attached spring clips with a minimum ceiling clearance requirement of only 1 1/2" for the driver.

Technical Specifications

• Power: 18W
• Halogen Equivalent: 120W
• Light Output: 1200 lm (3000K) / 1260 lm (4100K)
• Color Temperature: 3000K or 4100K
• Input Voltage: 120V AC (Standard TRIAC Dimmable) / 120V-347V AC (Optional 0-10V)
• CRI: 80
• Beam Angle: 110°
• Dimensions: ID 7 1/2", OD 9", Thickness 1/2"
• Cut Out: 7 1/2" to 8"
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 36,000 hours
• Certifications: cULus
• Warranty: 5 Year
