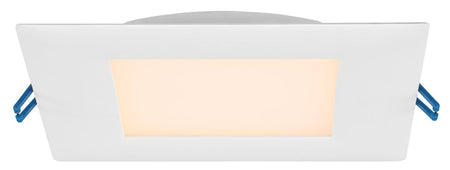

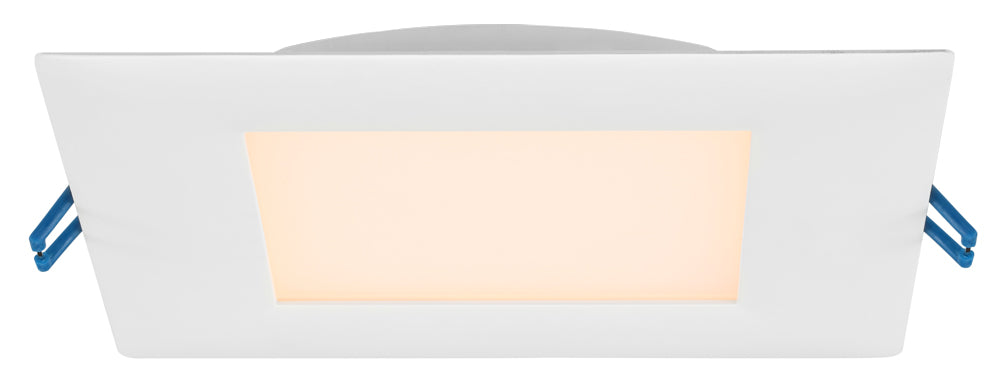

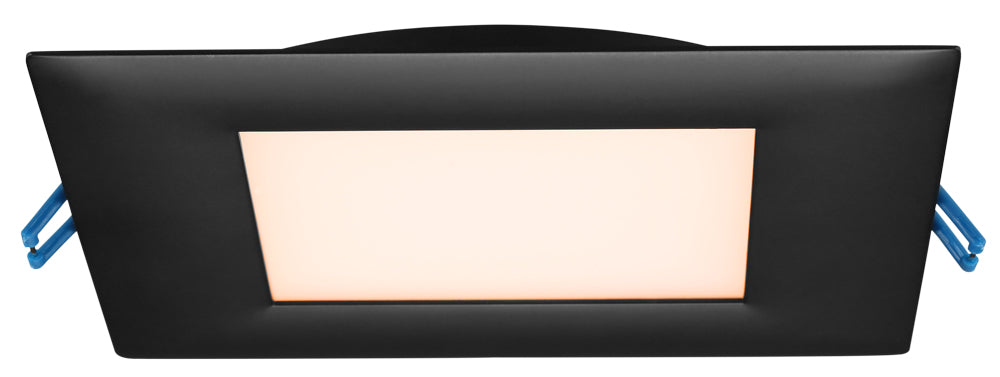

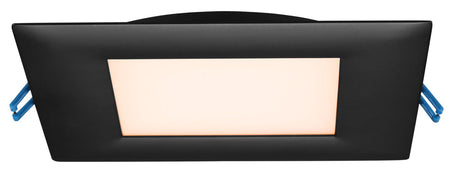

Lotus 6" Square Super Thin Recessed LED 17W | LL6S
Regular price
$55.00
Couldn't load pickup availability
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED LL6S is a contractor-grade 6-inch square super thin recessed lighting fixture designed for installations with extremely limited plenum space. With a profile thickness of only 1/2-inch, this architectural-spec solution delivers powerful, high-lumen output and even light distribution, making it ideal for both high-end residential and demanding commercial environments.Key Features
- Ultra-slim 1/2" profile requires only 1 1/2" of ceiling clearance for the driver, fitting into the tightest plenum spaces.
- Type IC Rated for direct contact with insulation, allowing for fast installation without the need for a separate recessed housing.
- Wet Location and Air-Tight rated, providing a versatile solution for showers, kitchens, and outdoor soffit applications.
- Wide 110° beam angle ensures uniform, shadow-free illumination across large areas.
- Contractor-friendly design with an integral driver inside a connection box, eliminating the need for a standard junction box.
Technical Specifications
- Energy Used: 17W
- Light Output: 1000 lm – 1100 lm
- Halogen Equivalent: 100W
- Beam Angle: 110°
- CRI: 80
- Default Driver Input: 120V AC Triac Dimmable
- Optional Driver Input: 120V-347V AC 0-10V Dimmable
- Insulation Rating: Type IC Rated
- Location Rating: Wet Location
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus
- Aperture ID: 6 1/8"
- Trim OD: 6 3/4" Square
- Cut-out: 6 1/8" to 6 1/4"
- Thickness: 1/2"
