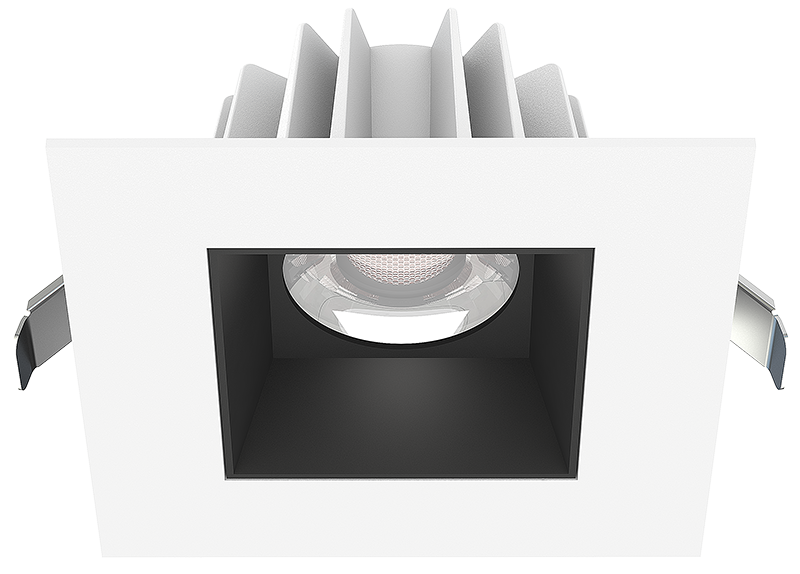

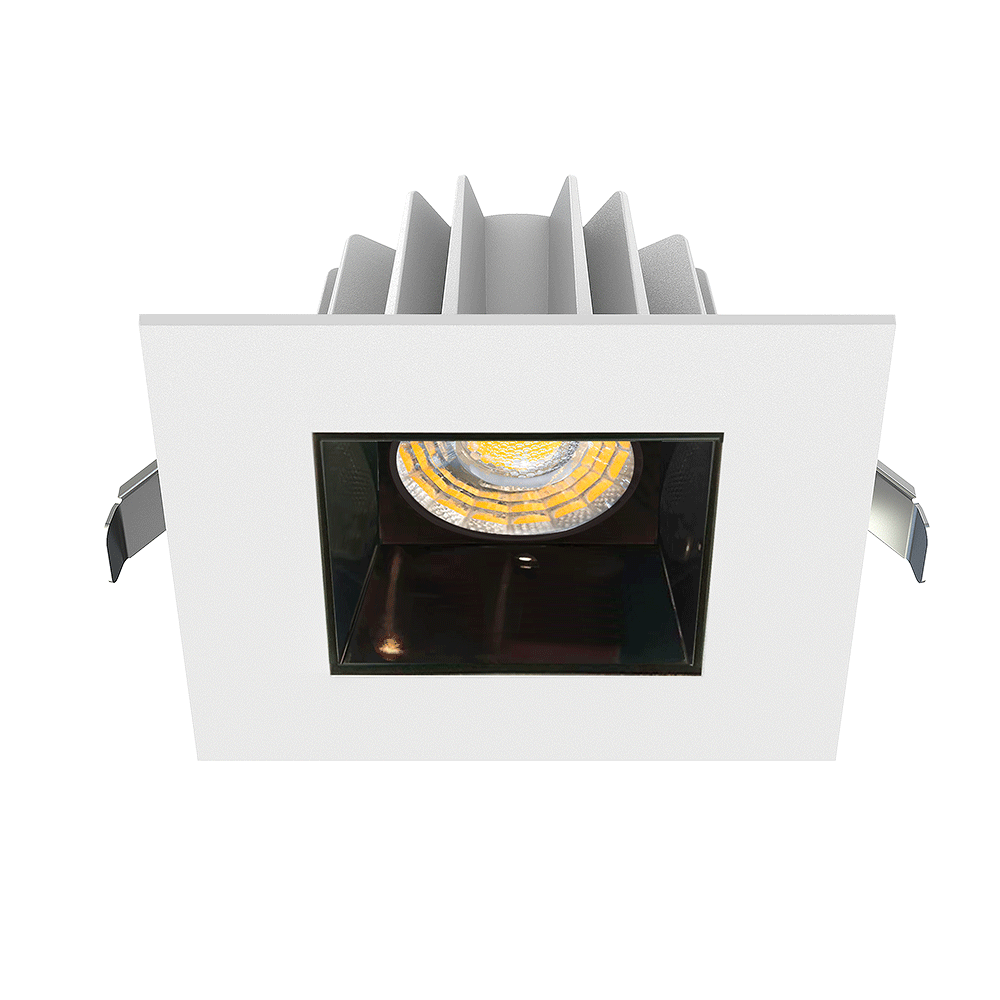

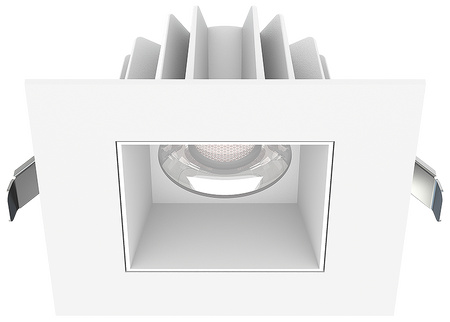

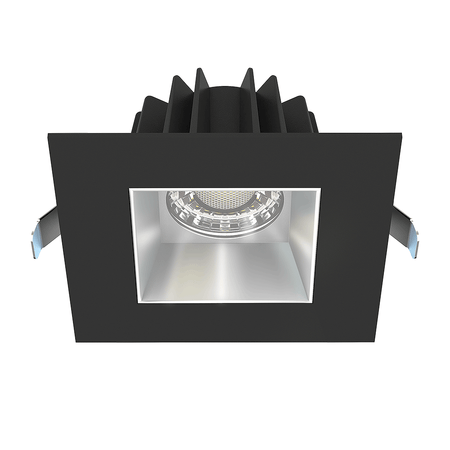

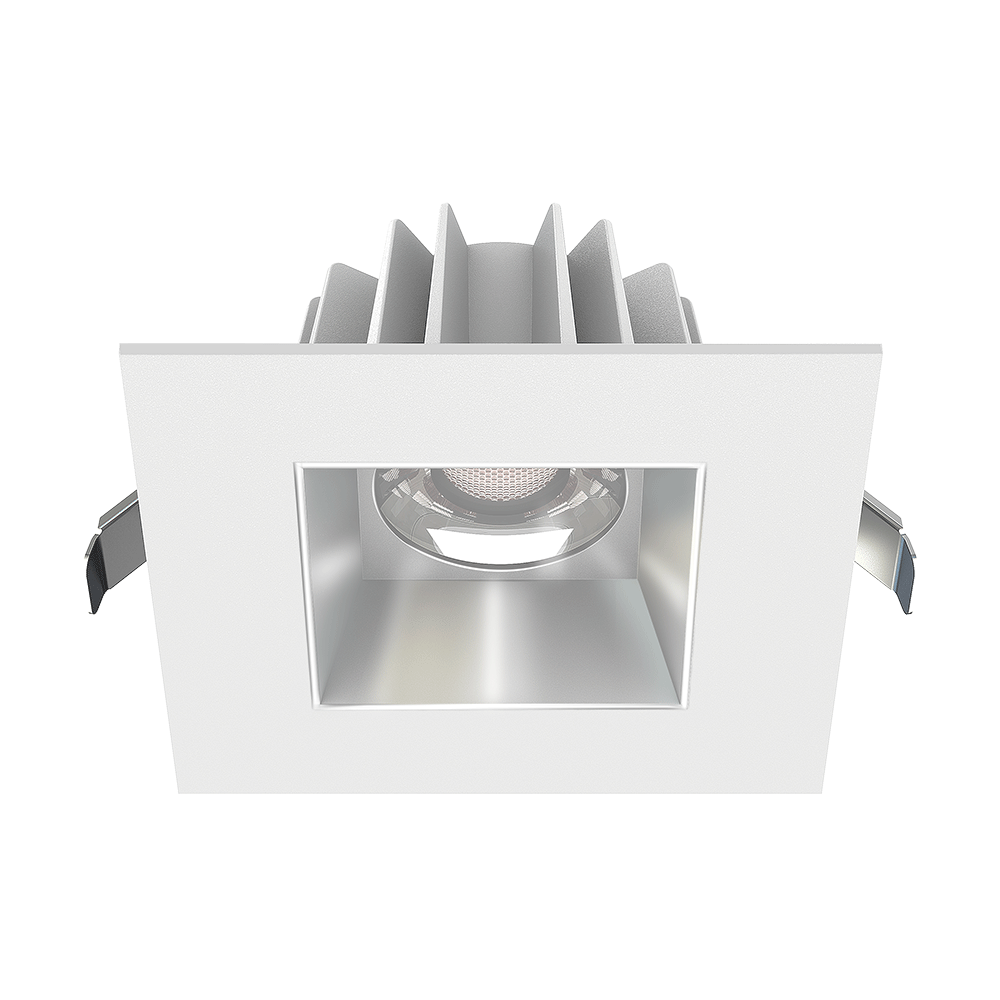

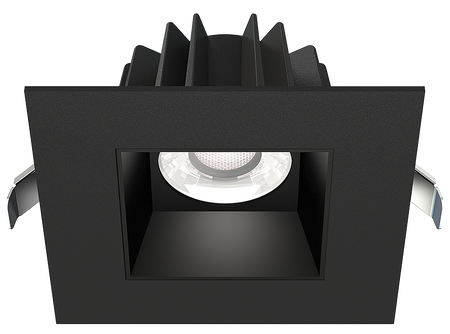

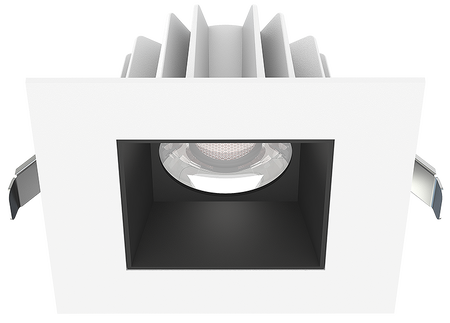

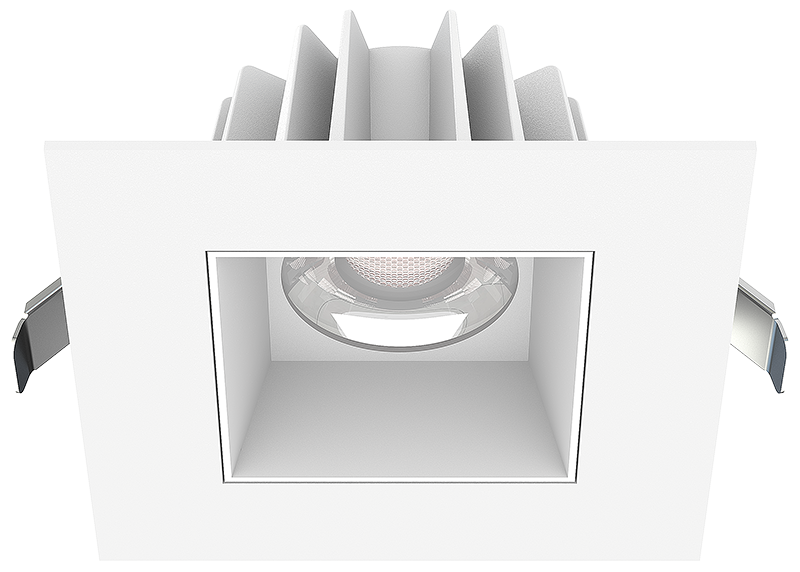

Lotus 4" Square Recessed Economy LED 15W 5CCT | JXL-COB04-S15W-5CCT-XX-4SR-SM-XX
Regular price
$66.99
Shipping, returns & support
- ShippingFree standard shipping in Canada over $250.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED 4" Square Recessed Economy LED is a cost-effective, architectural-spec solution for residential recessed lighting applications. This 15W deep regressed fixture features an integral driver inside...
Technical profile
- Voltage120V
- Wattage15
- Light temperature5CCT
- Dimming / controlTriac Dimmable
- CRI90
- Beam angle36
Key specifications
| Voltage | 120V |
|---|---|
| Wattage | 15 |
| Light temperature | 5CCT |
| Dimming / control | Triac Dimmable |
| CRI | 90 |
| Beam angle | 36 |
| Environment | Damp Location |
| Housing ratings | ["IC Rated"] |
| Mount type | Recessed Mount |
| Shape | Square |
| Size | 4 |
| Trim style | Standard Trim |
| Component type | Recessed Downlight |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKUJXL-COB04-S15W-5CCT-WH-4SR-SM-BC
- MPNJXL-COB04-S15W-5CCT-WH-4SR-SM-WH
- GTIN'782588048857
- Barcode769152011103
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview

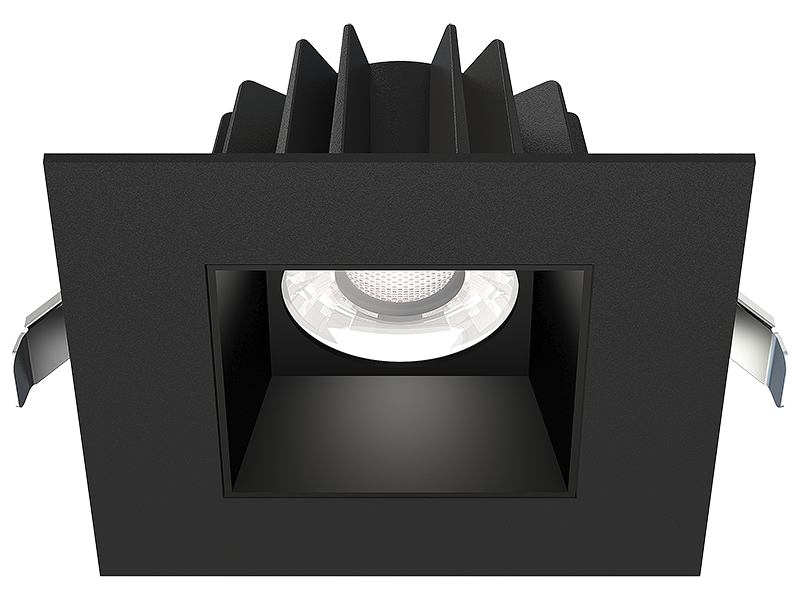

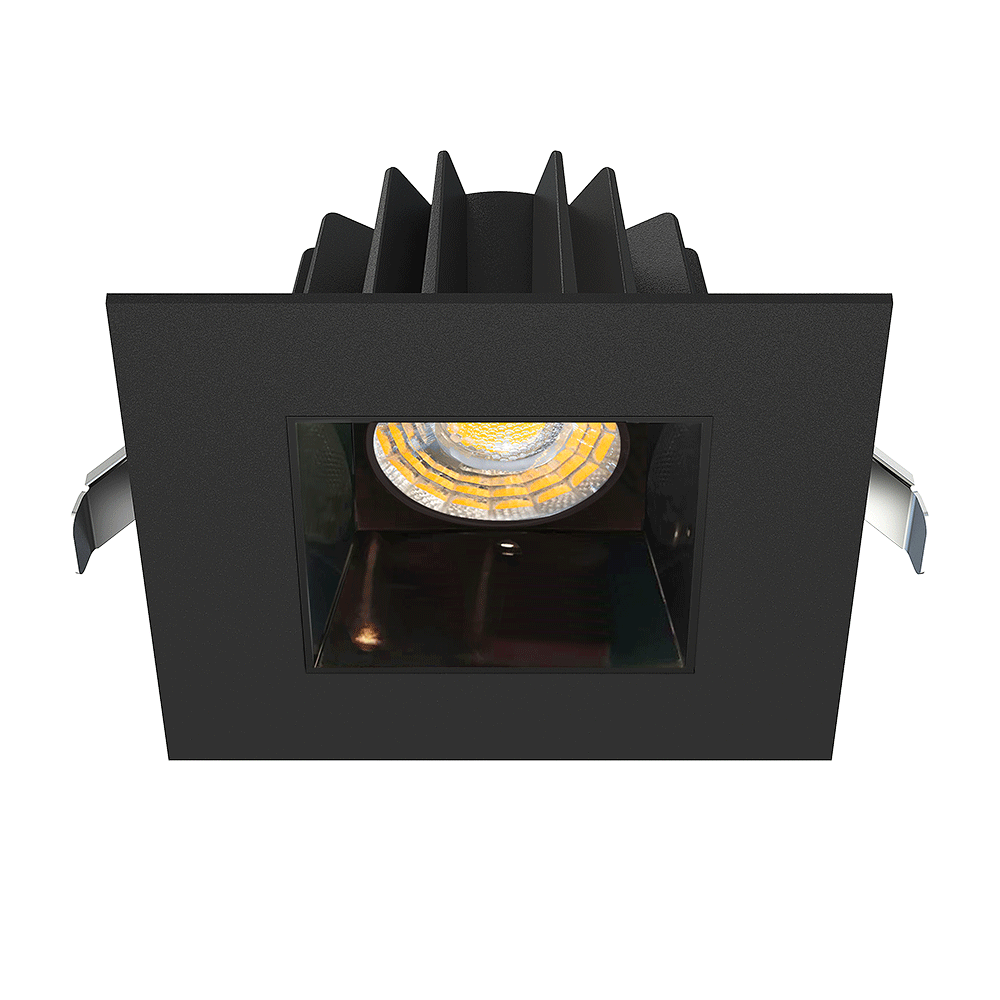

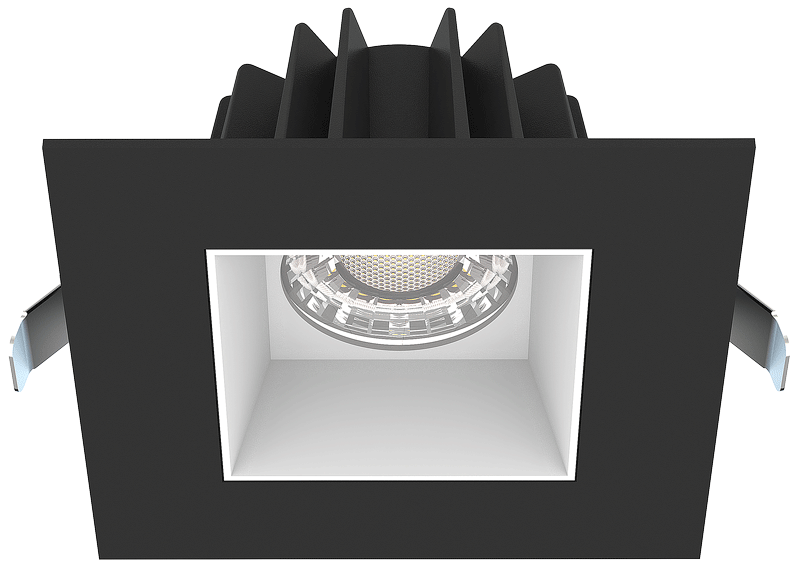

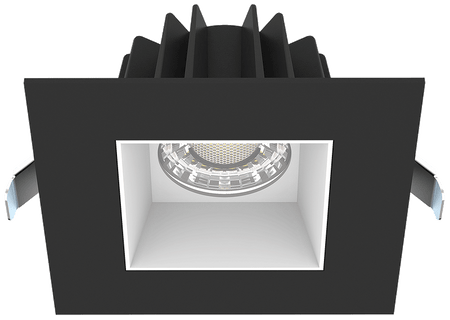

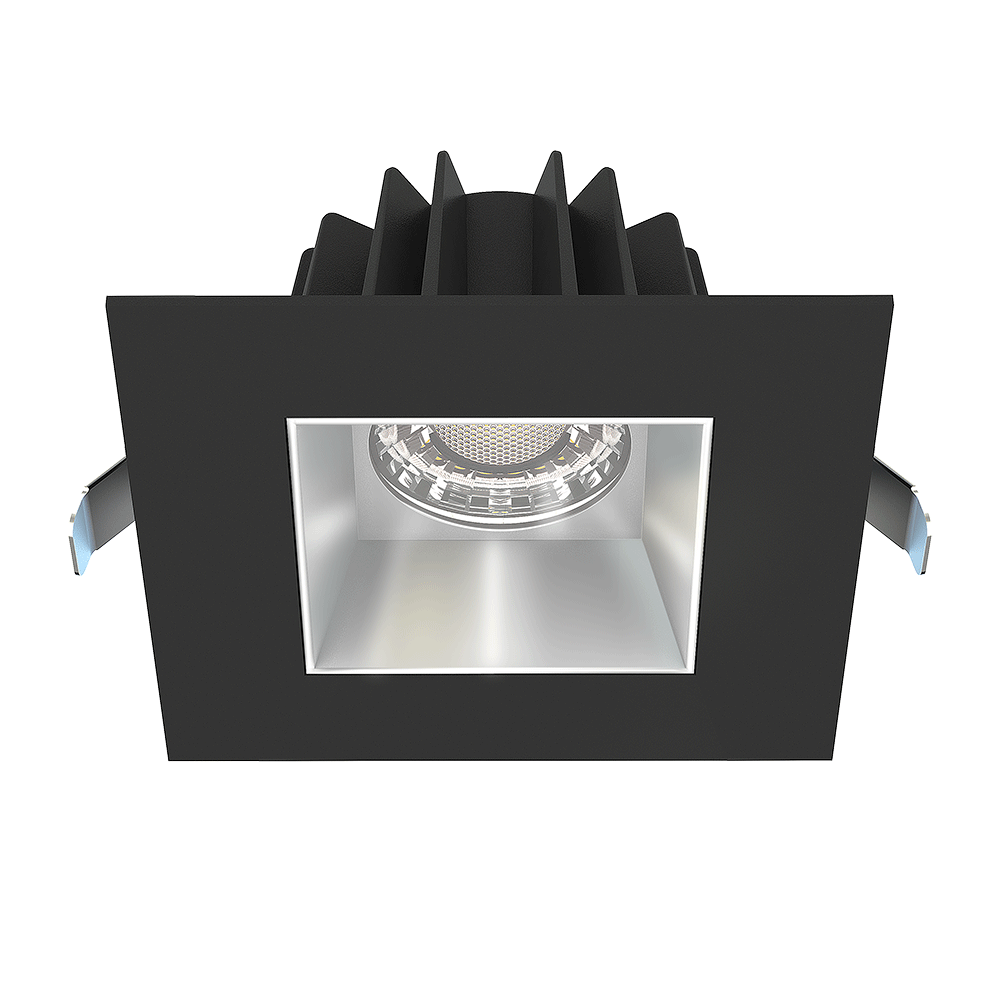

The Lotus LED 4" Square Recessed Economy LED is a cost-effective, architectural-spec solution for residential recessed lighting applications. This 15W deep regressed fixture features an integral driver inside a connection box, allowing for a fast and easy installation in insulated ceilings without the need for a traditional housing. It offers high-quality illumination with 5CCT user-selectable color temperatures, ranging from warm 2700K to daylight 5000K.
Key Features
- IC Rated: Approved for direct contact with insulation, requiring no recessed lighting housing for installation.
- 5CCT Selectable: Integrated switch allows users to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Deep Regressed Design: Features a smooth reflector to reduce glare and provide professional-grade visual comfort.
- Dimmable: Compatible with TRIAC dimmers (20% – 100%) for flexible light level control.
- Contractor-Grade Construction: Air-tight certified and damp location rated, suitable for a wide range of residential projects.
Technical Specifications
- Energy Used: 15W
- Halogen Equivalent: 100W
- Light Output (White Reflector): 1160 to 1390 lumens (depending on CCT)
- Light Output (Black Reflector): 1130 to 1350 lumens (depending on CCT)
- Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K)
- Beam Angle: 36°
- CRI: 90+
- Input Voltage: 120V AC
- Dimmability: TRIAC Dimmers (20% – 100%)
- Dimensions: ID 3 1/2", OD 4 3/4", Depth 2 1/2"
- Cut-Out: 4 1/4"
- Ceiling Clearance: 3"
- Approved Location: Insulated Ceiling & Damp Locations
- IP Rating: Air-Tight
- Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Projected Life: 70% light output at 30,000 hours
- Certifications: cETLus
- Warranty: 3 Year
