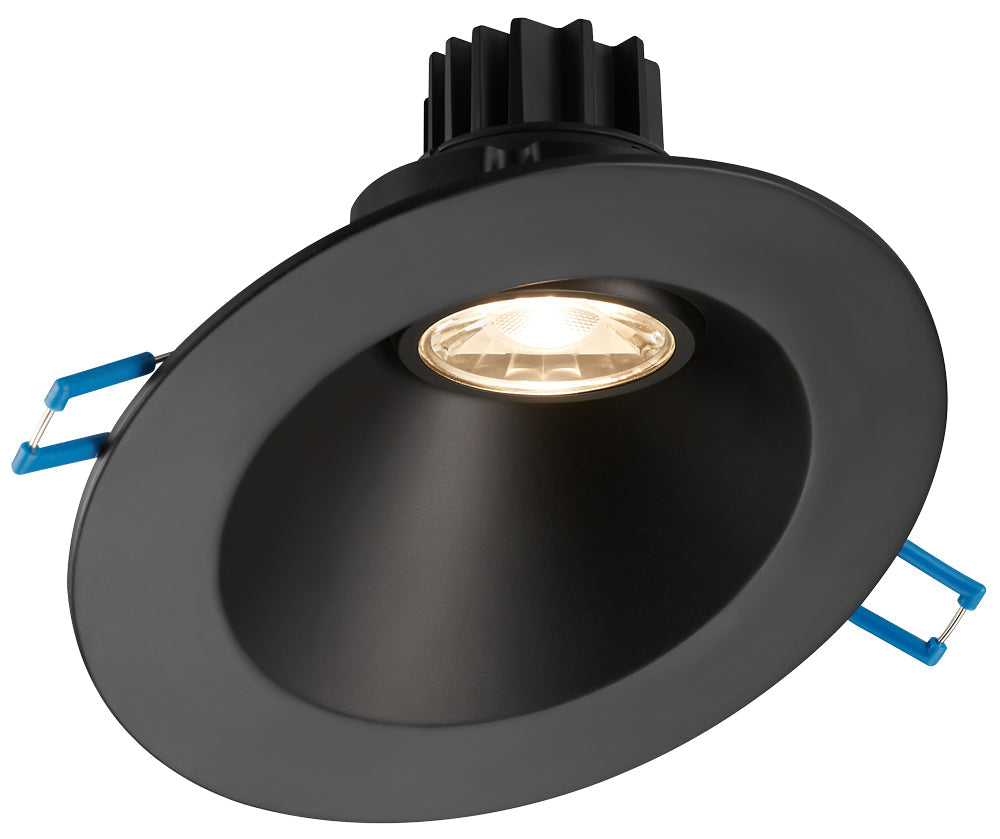

Lotus 4" Sloped Round Regressed Gimbal LED 7.5W | LRG3-4RSL

In stock
SKU: LRG3-50K-4RSL-BK

Key facts & compatibility

What this is
Overview The Lotus LED 4" Sloped Round Regressed Gimbal is an architectural-spec recessed lighting solution specifically engineered for sloped ceilings with a pitch ranging from...
Key facts
  • Voltage120V-347V
  • Wattage7.5
  • DimmingTriac Dimmable, 0-10V
$106.72
Color
Color Temperature
Output

Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!

Overview

The Lotus LED 4" Sloped Round Regressed Gimbal is an architectural-spec recessed lighting solution specifically engineered for sloped ceilings with a pitch ranging from 5° to 55°. This 7.5W fixture features a 30° sloped trim and a deep regressed gimbal for superior glare control, making it ideal for wall washing and highlighting artwork in high-end residential and commercial spaces. Its low-profile 3" depth allows for installation in restricted ceiling plenums without the need for a traditional housing.

Key Features

  • IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
  • Optimized for Sloped Ceilings: Features a specialized 30° sloped trim and 20° tilt/360° rotation for precise directional lighting on pitched surfaces.
  • Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring, while attached spring clips allow for fast setup in 4 1/2" to 5" cut-outs.
  • Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for protected outdoor soffits, bathrooms, and shower areas.
  • Superior Color Rendering: CRI 90+ rating ensures true color accuracy for architectural and accent lighting applications.

Technical Specifications

  • Energy Used: 7.5W
  • Light Output: 500 to 650 lumens (depending on CCT)
  • Color Temperature: 2700K, 3000K, 3500K, 4100K, 5000K, Dim to Warm (3000K-2000K), or 5CCT Selectable
  • Beam Angle: 38° beam with 20° tilt and 360° rotation
  • CRI: 90+
  • Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V)
  • Dimmable: Yes (Triac or 0-10V)
  • Aperture/Dimensions: 4 1/2" ID, 5 3/4" OD
  • Thickness/Depth: 3"
  • Cut-Out: 4 1/2" to 5"
  • Ceiling Clearance: 2 1/2" (required for driver)
  • Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • IP Rating: IP 54
  • Projected Life: 70% light output at 50,000 hours
  • Certifications: cULus, Title 24, Type IC, Air-Tight
  • Warranty: 10 Year Residential / 5 Year Commercial
