Lotus 4" Recessed LED 15W High Output Round or Square | AD-LED-4-S15W

Overview

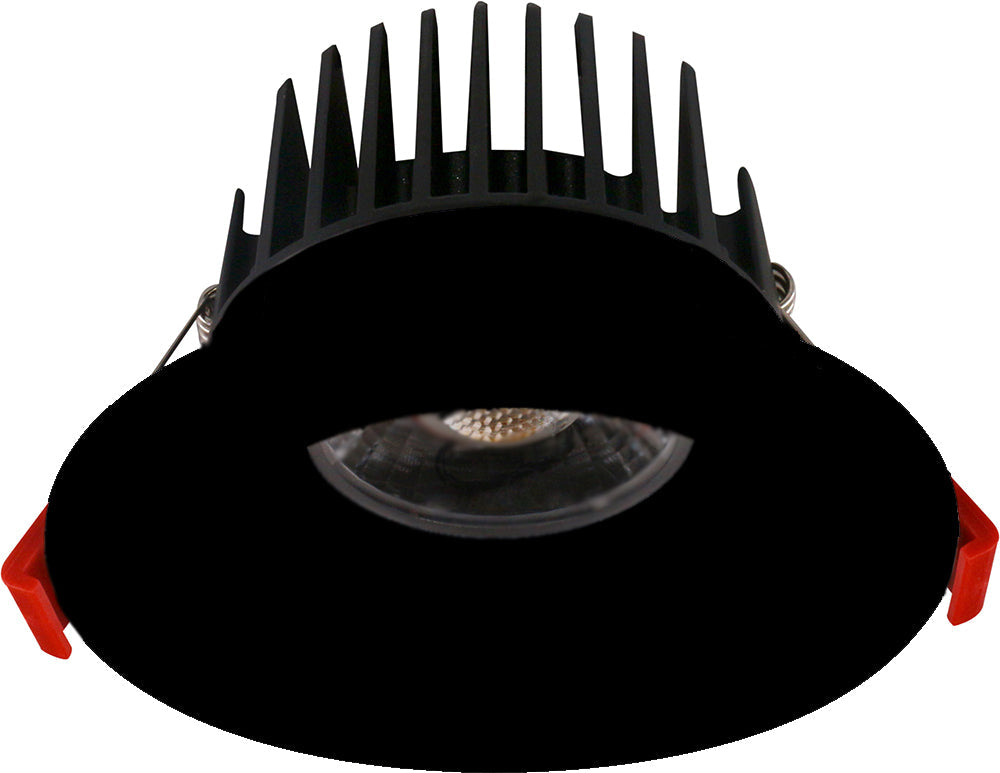

The Lotus LED AD-LED-4-S15W is an architectural-spec 4-inch recessed lighting solution designed for both commercial and residential high-output applications. Its regressed design provides reduced glare while the ultra-slim 3.5-inch profile allows for installation in limited plenum spaces without the need for a traditional housing.

Key Features

• Type IC Rated: Approved for direct contact with insulation, eliminating the need for recessed cans.
• High Output Performance: Delivers up to 1055 lumens, serving as a 100W halogen equivalent.

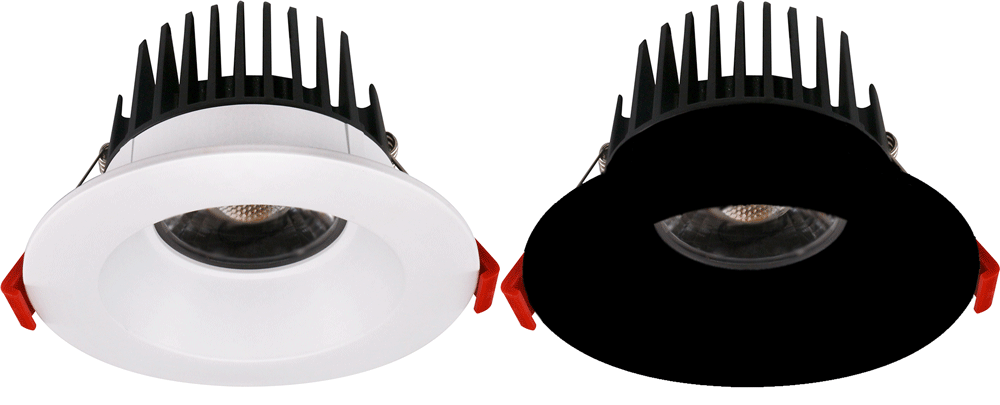

• Architectural Flexibility: Available in round or square trim options with multiple CCT selections including 5CCT and Dim-to-Warm.
• Simplified Installation: Features an integral driver inside a connection box for fast, contractor-grade setup.
• Dimmable: Compatible with 120V Triac dimmers for precise atmosphere control.

Technical Specifications

• Energy Used: 15W
• Halogen Equivalent: 100W
• Light Output: 910 – 1055 lm
• CRI: 90+
• Beam Angle: 40° (standard), optional 24° and 60°
• Input Voltage: 120V AC (Default Triac Dimmable)
• Optional Voltage: 120V-347V AC (0-10V Dimmable)
• Color Temperatures: 2700K, 3000K, 4000K, 5CCT (27K-50K), or Dim to Warm (3000K to 1800K)
• Airtight: Yes
• Rating: Type IC, Damp Location
• Certifications: cETLus, Energy Star, T24
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Ceiling Clearance: 3 1/2"
• Dimensions: ID 3 1/8"; OD 4 1/2"; Depth 1 7/8"
• Cut Out: 3 3/4"
• Warranty: 5 Years
