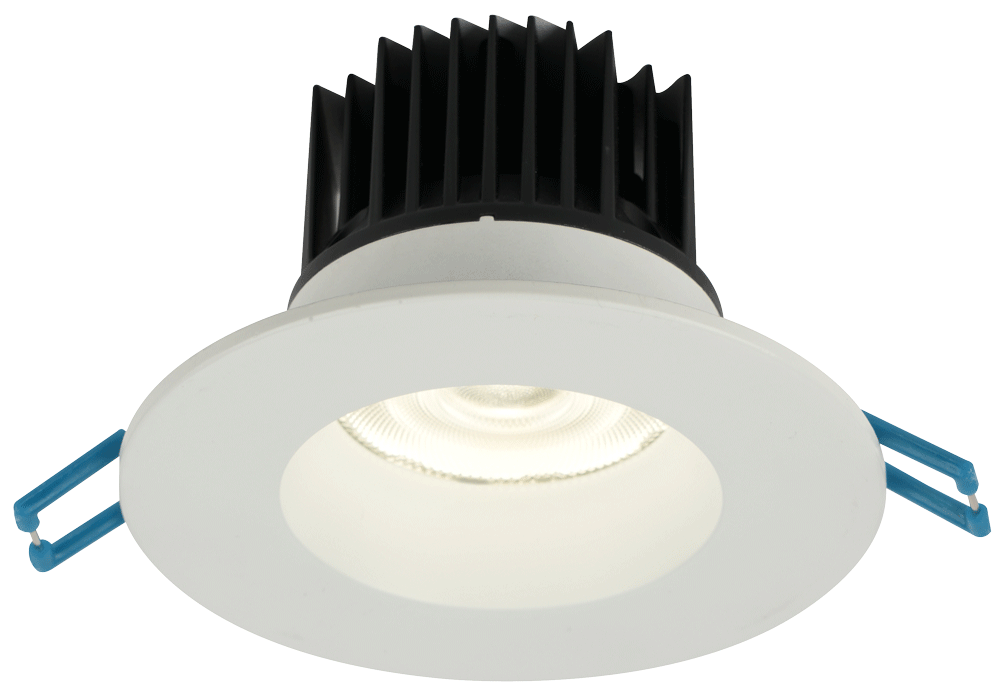

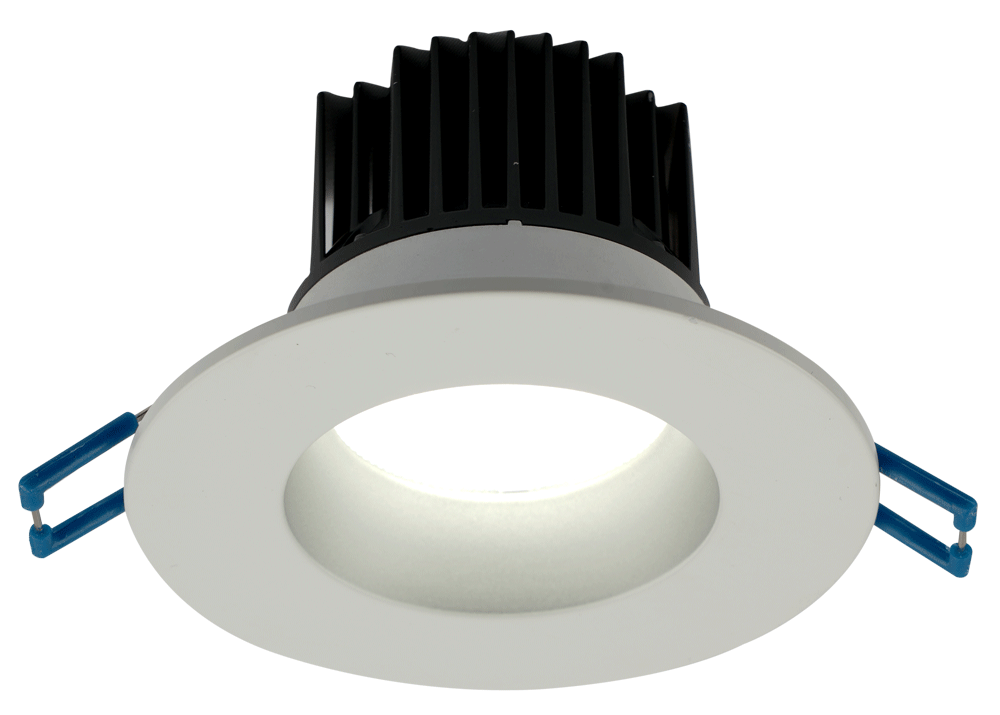

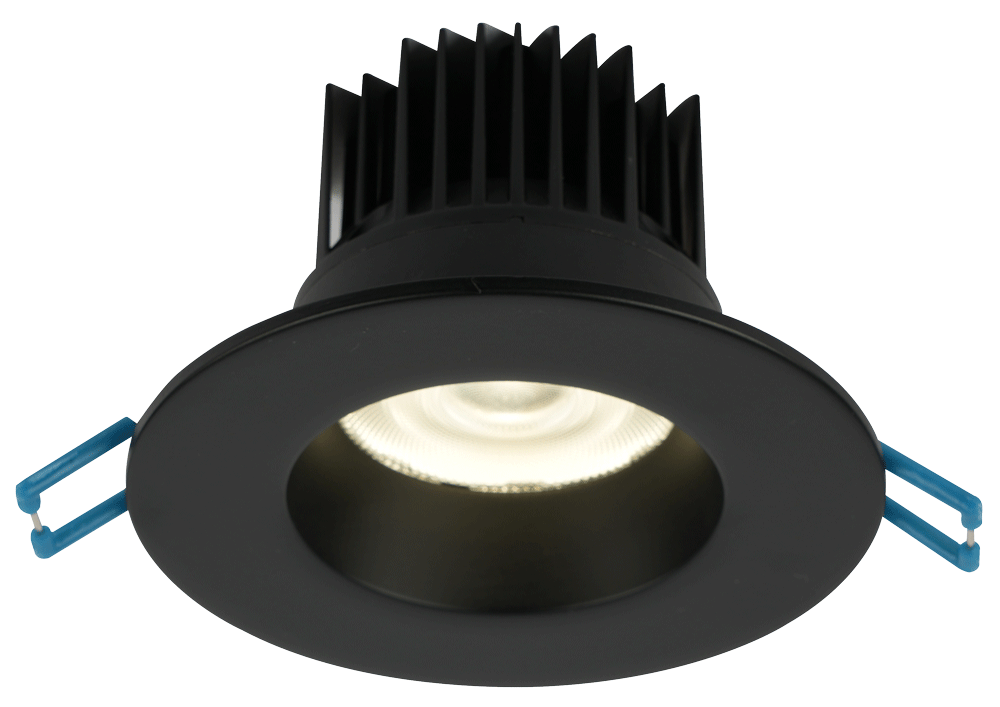

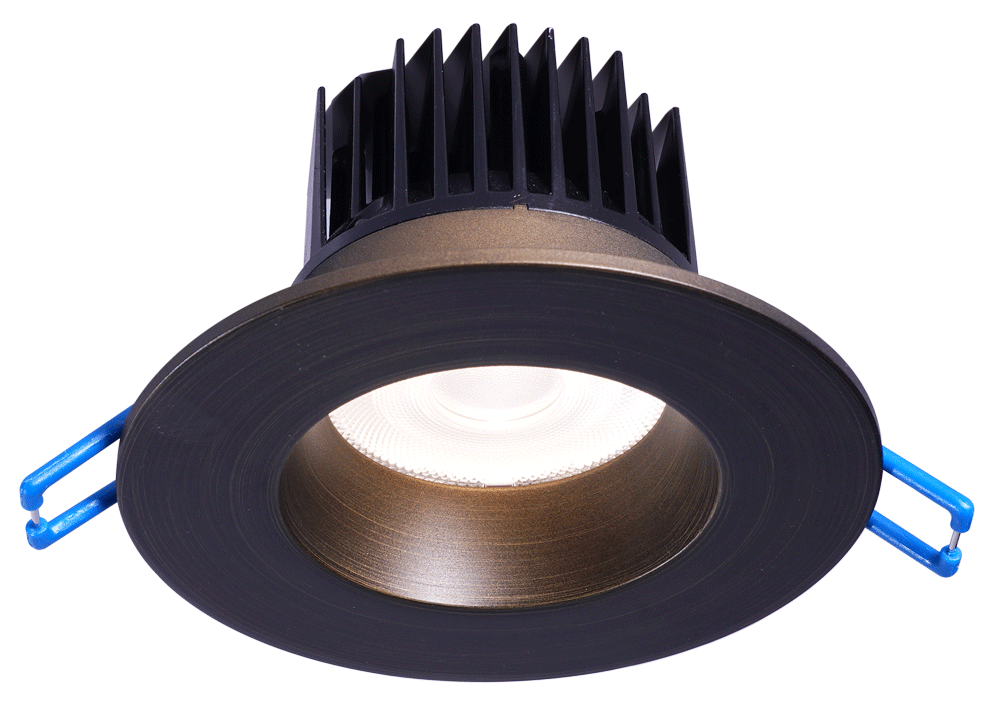

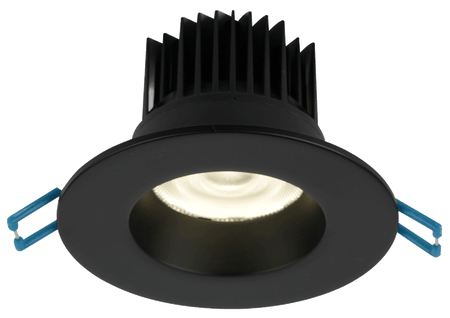

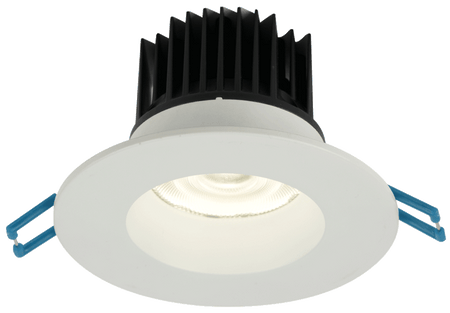

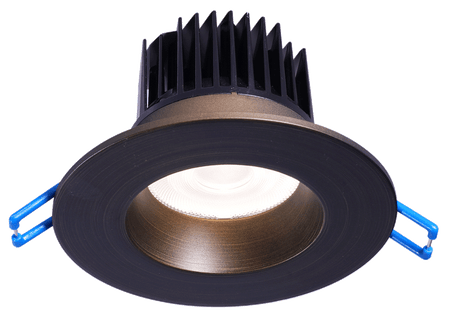

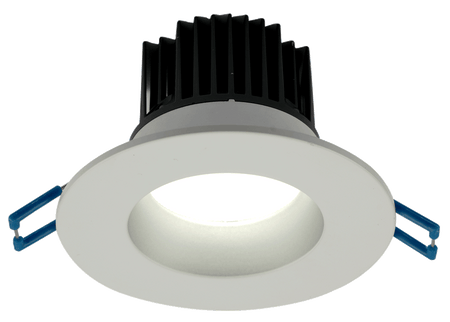

Lotus 3" Round Regressed LED 15W | LD3R
Regular price
$87.99
Shipping, returns & support
- ShippingFree standard shipping in Canada over $200.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED 3" Round Regressed LED is an architectural-spec recessed lighting solution designed for commercial, residential, retail, and hospitality applications. Featuring a 3/4" regressed optic for signif...
Technical profile
- Voltage120V-347V
- Wattage15
- Light temperature3018K
- Dimming / controlTriac Dimmable, 0-10V
- CRI90
- Beam angle38
Key specifications
| Voltage | 120V-347V |
|---|---|
| Wattage | 15 |
| Light temperature | 3018K |
| Dimming / control | Triac Dimmable, 0-10V |
| CRI | 90 |
| Beam angle | 38 |
| Environment | Wet Location |
| Housing ratings | ["IC Rated"] |
| Mount type | Recessed Mount |
| Shape | Round |
| Size | 3 |
| Component type | Recessed Downlight |
| Product family | Gimbal |
Product identifiers
- VendorLotus LED Lights
- SKULD3R-3018K-WH
- MPNLD3R-3018K-WH
- GTIN'733447501785
- Barcode733447501785
- Product familyGimbal
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED 3" Round Regressed LED is an architectural-spec recessed lighting solution designed for commercial, residential, retail, and hospitality applications. Featuring a 3/4" regressed optic for significantly reduced glare, this high-output 15W fixture delivers up to 1450 lumens from a compact 3" aperture. Its 2 1/2" shallow profile allows for versatile installation in restricted ceiling spaces directly under joists.
Key Features
- IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
- Architectural Glare Control: The 3/4" regressed design provides a 38° directional beam, ensuring superior visual comfort for high-end interiors.
- Wet Location Rated: IP 54 certified and air-tight, making this fixture suitable for high-moisture areas including showers and outdoor soffits.
- Contractor-Grade Power: Delivering 15W with a 120W halogen equivalent, this Lotus LED unit provides powerful illumination for high-ceiling applications.
- Dimmable Performance: Equipped with a standard Triac dimmable 120V AC driver, with optional 0-10V dimming available for 120V-347V systems.
Technical Specifications
- Energy Used: 15W
- Light Output: 1230 to 1450 lumens (depending on CCT)
- Halogen Equivalent: 120W
- Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K to 1800K)
- Beam Angle: 38° standard (Custom 15°, 24°, and 60° options available)
- CRI: 90+ for true color rendering
- Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
- Dimmability: Triac Dimmable (Default) or 0-10V (Optional)
- Aperture/Dimensions: 3 1/4" ID, 4 1/4" OD
- Cut-Out: 3 1/2"
- Ceiling Clearance: 3 1/2"
- IP Rating: IP 54
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certifications: cULus, Type IC
- Warranty: 10 Year Residential / 5 Year Commercial
