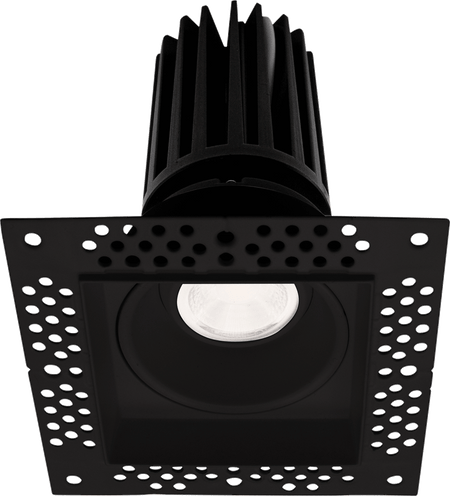

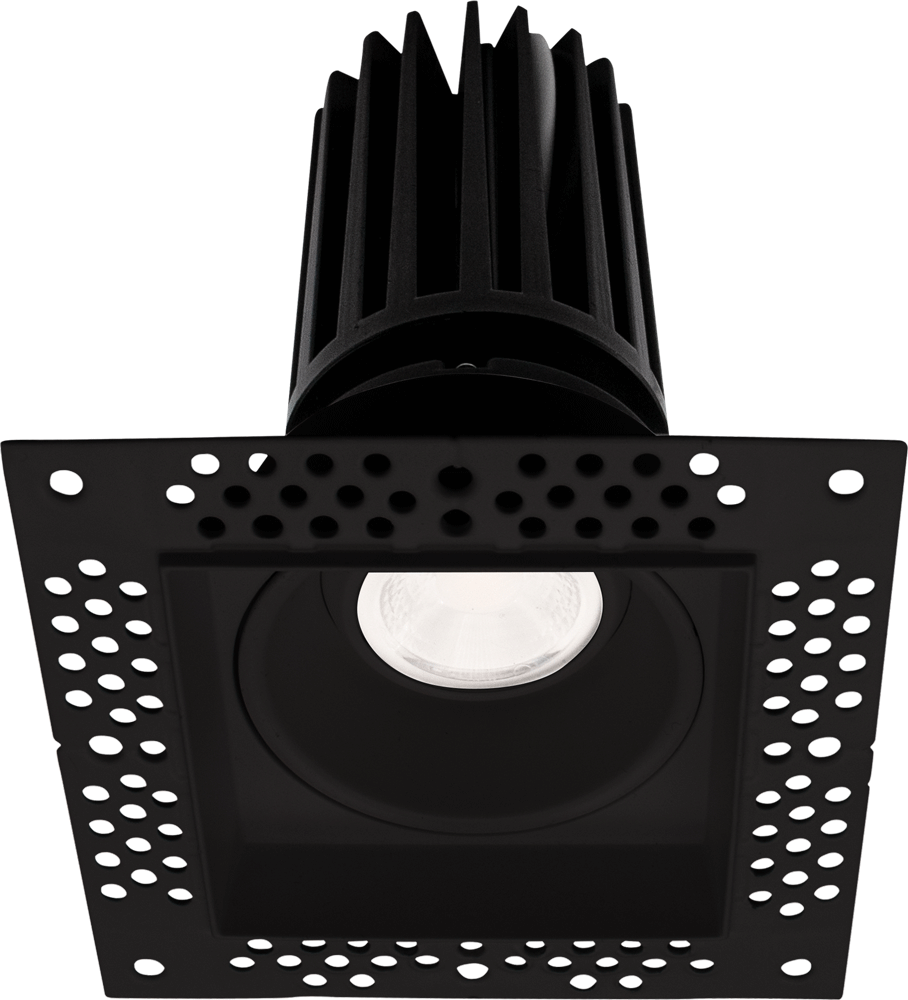

Lotus 2" Trimless Square Gimbal LED 11W | LED-2-S11W-EY-T-SQ

Overview

The Lotus LED 2" Trimless Square Gimbal is a high-performance 11W recessed lighting solution designed for modern architectural applications, including sloped ceilings, wall washing, and highlighting artwork. This trimless model features an adjustable gimbal with a 20° tilt, providing precise directional control with a clean, seamless aesthetic. It is IC Rated for direct contact with insulation and approved for wet locations, making it a versatile choice for high-end residential and commercial projects.

Key Features

• Adjustable Directional Beam: Features a 20° tilt angle for flexible light placement on sloped ceilings or task areas.
• IC Rated & Air-Tight: Certified for direct contact with insulation and engineered with an air-tight design for superior energy efficiency.
• Trimless Design: Provides a high-end, integrated look with a square aperture for contemporary architectural spaces.
• Advanced Color Selection: Available with 5CCT user-selectable technology (2700K to 5000K) or Dim to Warm options (3000K to 1800K).
• Contractor-Grade Performance: Delivers up to 1000 lumens, serving as a powerful 90W halogen equivalent while fitting into restricted 5" ceiling clearances.

Technical Specifications

• Power: 11W
• Light Output: Up to 1000 lumens
• Halogen Equivalent: 90W
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Beam Angle: 38° standard (24° and 60° options available as adders)
• Tilt Angle: 20°
• CRI: 90+ for true color rendering
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V Dimmable)
• Dimensions: ID 2 1/2", OD 3 1/2"
• Cut-Out: 2 3/4" Square Hole
• Ceiling Clearance: 5"
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• IP Rating: Air-Tight & Wet Location Approved
• Projected Life: 70% light output at 50,000 Hours
• Certification: cETLus
• Warranty: 5 Year
