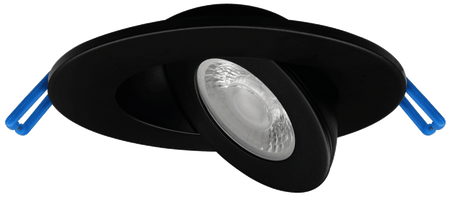

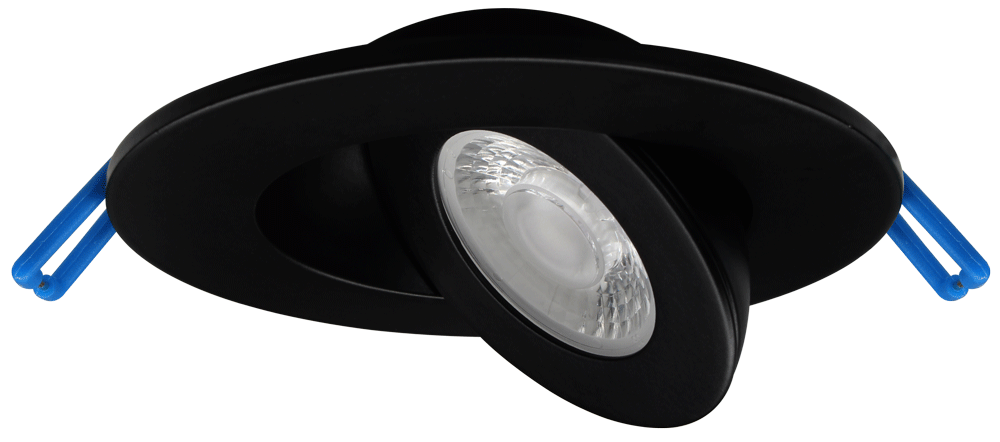

Lotus 2" Round Floating Gimbal Recessed LED 5W | LED-2-S5W-FG

Overview

The Lotus LED 2" Round Floating Gimbal is an architectural-spec recessed lighting solution designed for precise accent lighting, wall washing, and sloped ceiling applications. This 5W fixture features a unique floating gimbal that is adjustable in any direction, providing exceptional flexibility for highlighting artwork or architectural features in residential and commercial spaces. Its ultra-slim 1 1/4" profile allows for seamless installation in restricted ceiling clearances without the requirement of a traditional housing.

Key Features

• 5CCT Color Selection: Features a user-selectable switch allowing for easy adjustment between 2700K and 5000K to match any interior design aesthetic.
• Architectural Flexibility: The floating gimbal design is adjustable in any direction, making it a professional choice for directional recessed lighting tasks.
• IC Rated & Air-Tight: Contractor-grade construction is certified for direct contact with insulation and provides an air-tight seal for superior energy efficiency.
• Space-Saving Design: At only 1 1/4" deep, this fixture fits into ceilings as thin as 3/4" with a remotely mounted driver, ideal for minimalist modern installations.
• Simplified Installation: Features a driver inside the connection box with no separate junction box required, reducing overall labor costs.

Technical Specifications

• Energy Used: 5W
• Light Output: 370 to 420 lumens
• Halogen Equivalent: 35W
• Color Temperature: 5CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Beam Angle: 38°
• CRI: 90+
• Input Voltage: 120V AC
• Dimmable: Triac Dimmable (100% - 10%)
• Dimensions: ID 2 1/2", OD 3 1/2", Depth 1 1/4"
• Cut-Out: 2 3/4" to 3"
• Ceiling Clearance: 3/4" (remote driver) or 1"
• Air Tight: Yes
• Location Rating: Damp Location
• Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cETLus, Type IC
• Warranty: 3 Year
