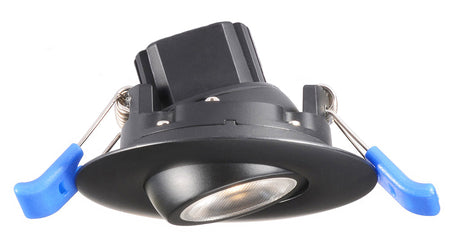

Lotus 2" Eyeball Round Recessed Gimbal LED 5.5W | LL2G-HO
Regular price
$69.99
Shipping, returns & support
- ShippingFree standard shipping in Canada over $200.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Quick summary
Overview
The Lotus LED 2" Eyeball Round Recessed Gimbal High Output is an architectural-spec lighting solution designed for high-precision directional lighting in extremely tight spaces. Featuring a slim 1 1/2" depth,...
Technical profile
- Voltage120V-347V
- Wattage5.5
- Light temperature3018K
- Dimming / controlTriac Dimmable, 0-10V
- CRI90
- Beam angle36
Key specifications
| Voltage | 120V-347V |
|---|---|
| Wattage | 5.5 |
| Light temperature | 3018K |
| Dimming / control | Triac Dimmable, 0-10V |
| CRI | 90 |
| Beam angle | 36 |
| Environment | Wet Location |
| Housing ratings | ["IC Rated"] |
| Mount type | Recessed Mount |
| Shape | Round |
| Size | 2 |
| Component type | Recessed Downlight |
| Product family | Gimbal |
Product identifiers
- VendorLotus LED Lights
- SKULL2G-3018K-HO-WH
- MPNLL2G-3018K-HO-WH
- GTIN'721248960597
- Barcode721248960597
- Product familyGimbal
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
Overview
The Lotus LED 2" Eyeball Round Recessed Gimbal High Output is an architectural-spec lighting solution designed for high-precision directional lighting in extremely tight spaces. Featuring a slim 1 1/2" depth, this 5.5W fixture is engineered for sloped ceilings, cabinets, and highlighting artwork without the need for a traditional recessed housing. The air-tight, IC-rated design allows for direct installation in contact with insulation, providing a versatile option for high-end residential and commercial projects.
Key Features
- IC Rated: Approved for direct contact with insulation, eliminating the requirement for bulky recessed housings.
- Precision Aiming: Directional eyeball gimbal provides 20° tilt and 360° rotation for flexible light placement.
- Contractor-Grade Installation: Integrated driver inside the connection box simplifies wiring and allows for fast setup using attached spring clips.
- Wet Location Rated: IP 54 certified and air-tight, making it suitable for protected outdoor soffits, bathrooms, and shower installations.
- Superior Color Rendering: CRI 90+ ensures true color accuracy for high-end applications.
Technical Specifications
- Energy Used: 5.5W
- Light Output: 430 to 550 lumens (depending on CCT)
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, or Dim to Warm (3000K-1800K)
- Beam Angle: 36° beam with 20° tilt and 360° rotation
- CRI: 90+
- Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
- Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
- Aperture/Dimensions: ID 2", OD 2 1/2"
- Thickness: 1 1/2"
- Cut-Out: 2 1/8"
- Ceiling Clearance: 1 1/2" (Remote Driver) to 5" (Driver next to fixture)
- IP Rating: IP 54
- Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
- Warranty: 10 Year Residential / 5 Year Commercial
