Lotus 2" Mini Recessed LED 24V AC/DC 6W | LED-1-S6W
Shipping, returns & support
- ShippingFree standard shipping in Canada over $250.00 CAD. See shipping info.
- Returns30-day returns. See return policy.
- WarrantyNeed warranty or support details? Start with product support.
- SupportTalk to our Calgary-based team through contact & support.
Quick product facts
Technical profile
- Voltage24V
- Wattage6
- Light temperature3000K
- CRI90
- Mount typeRecessed Mount
- ShapeRound
Key specifications
| Voltage | 24V |
|---|---|
| Wattage | 6 |
| Light temperature | 3000K |
| CRI | 90 |
| Mount type | Recessed Mount |
| Shape | Round |
| Size | 2 |
| Component type | Light Fixture |
| Product family | Original Series |
Product identifiers
- VendorLotus LED Lights
- SKULED-1-S6W-30K-T1-R-BK
- MPNLED-1-S6W-30K-T1-12WD-R-WH
- GTIN'782588046198
- Barcode733447500702
- Product familyOriginal Series
Love this product? Share the transformation and inspire others to upgrade their homes or businesses too!
The Lotus LED-1-S6W is an ultra-compact 2-inch recessed LED designed for displays, cabinets, mini recessed applications, soffits, and solar-friendly low-voltage installs. One platform supports interchangeable round and square trims in white or black with 1/8" or 1/4" lips, making it easy to match the finish and trim profile to the project.
Built for tight ceiling spaces, the fixture runs on 24V AC/DC, delivers 480 lumens at 3000K, and offers 90+ CRI for strong color rendering. It is Type IC, air-tight, approved for insulated ceilings and damp locations, and uses an internal terminal block so no junction box is needed.
Key features
- 24V AC/DC input
- 6W LED output, 480 lm, 3000K, CRI 90+
- 38 degree standard beam, 24 degree available as adder

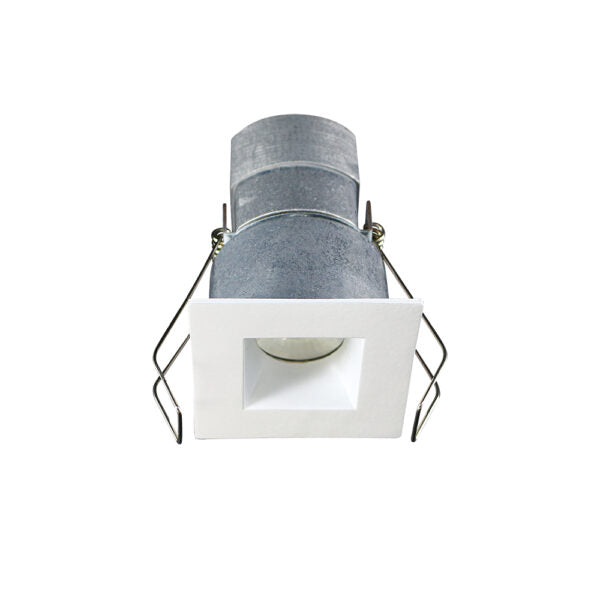

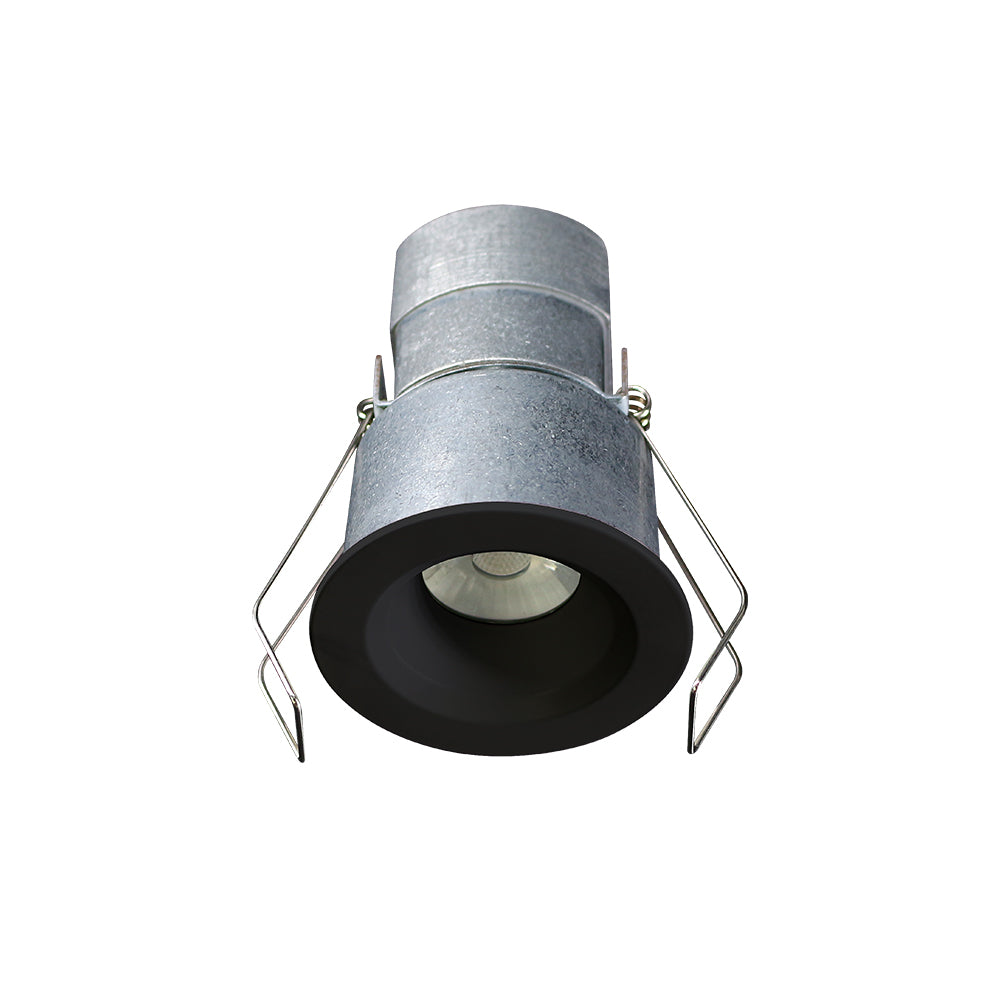

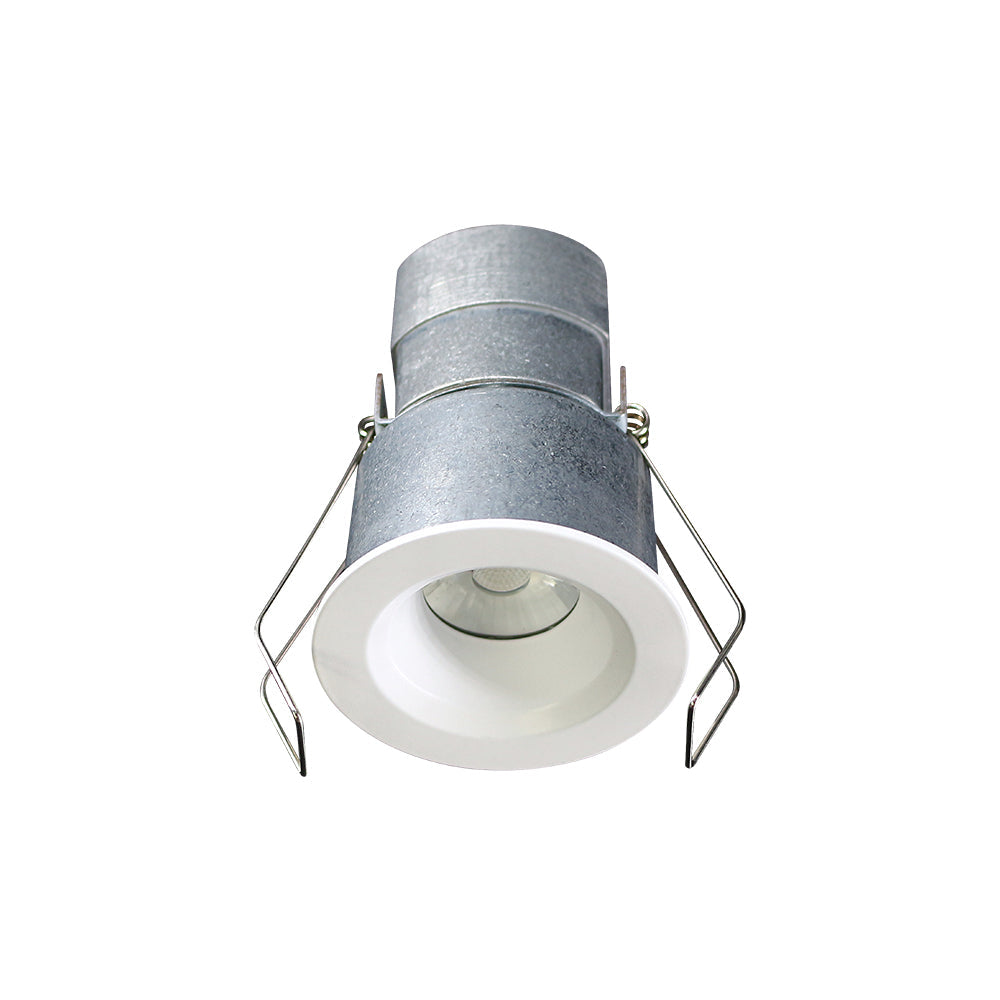

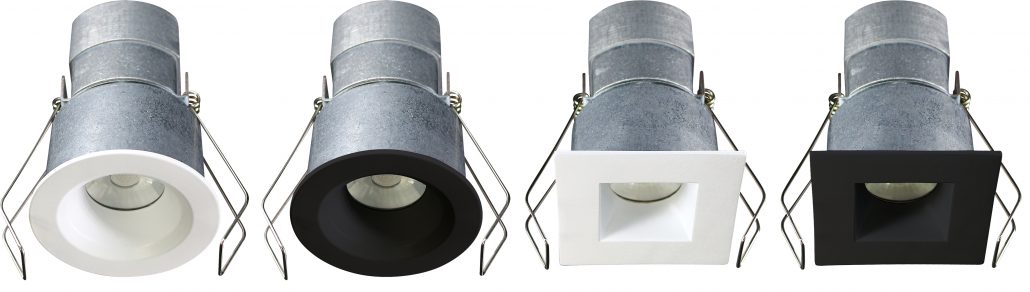

- Interchangeable round and square trims
- White and black finishes with 1/8 inch and 1/4 inch lips
- Internal terminal block - no junction box needed
- Type IC and air-tight
- Suitable for insulated ceilings and damp locations
- 2 7/8 inch fixture depth, 3 inch ceiling clearance required
- Dimmable with external 24V drivers
Applications
- Displays
- Cabinets
- Mini recessed lighting
- Soffits
- Solar-powered low-voltage systems
Technical specifications
| Model | LED-1-S6W |
|---|---|
| Fixture Type | 2 inch mini recessed LED with interchangeable trims |
| Input | 24V AC/DC |
| Power | 6W |
| Light Output | 480 lm |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Angle | 38 degree standard, 24 degree optional |
| Dimming | Dimmable with external 24V drivers |
| Ratings | Type IC, Air-Tight, Insulated Ceiling, Damp Location |
| Ambient Temperature | -4F (-20C) to +104F (+40C) |
| Life | 70% light output at 50,000 hours |
| Certification | cETLus |
| Warranty | 3 year when installed with a Lotus LED Lights driver |
| Dimensions | ID 1 15/16 inch, OD 2 1/4 inch with 1/8 inch trim, OD 2 1/2 inch with 1/4 inch trim, depth 2 7/8 inch |
| Cutout | 2 inch |
| Mounting Surface | 1/8 inch to 1 1/2 inch thick |
Accessories sold separately
- Rough-in plate: RIP2

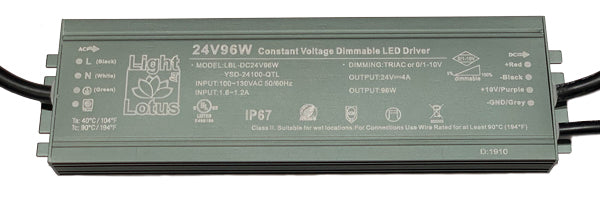

- 24V 96W cULus Class 2 Driver 120V Input: LBL-DC24V96W
