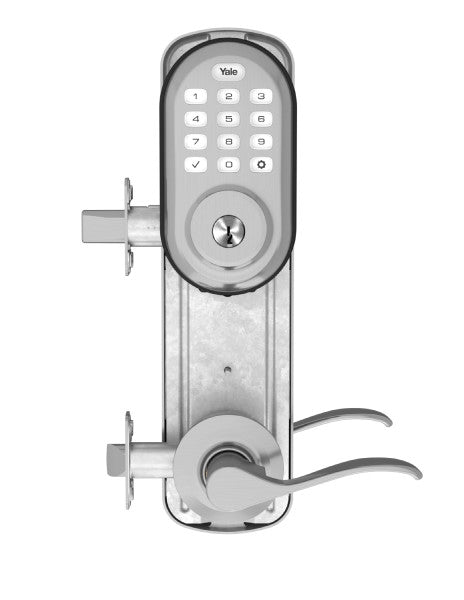

Yale Interconnected Lockset - Keypad | YRC216-ZW2-NW-4

The Yale Assure Lock® Interconnect with Z-Wave Plus is a keypad deadbolt and lever set designed for multi-family and managed properties that require secure, key-free access with panic-proof egress. This interconnected lockset retracts both the deadbolt and latch simultaneously, allowing fast, safe exit with a single motion.

Engineered for property managers and professional installers, the Assure Lock Interconnect eliminates rekeying costs by allowing PIN codes to be added or deleted as occupants change. Integrated Z-Wave Plus technology enables connection to compatible alarm and automation systems for centralized access control and monitoring.

Key features

• Keypad deadbolt with interconnected lever: Deadbolt and latch retract together for panic-proof, dual-egress operation.
• Z-Wave Plus integration: Connects to compatible smart home and security platforms for remote management.
• Key-free access control: Create, manage, and delete user PIN codes—no rekeying required.
• Designed for multi-family use: Ideal for apartments, condos, student housing, and managed properties.
• Field-adjustable handing: Reversible handing supports left- or right-handed doors.
• Flexible door prep: Available for doors with 4" or 5-1/2" center-to-center spacing.
• Modern design: Satin nickel finish with Norwood lever for a clean, professional appearance.

Interconnected egress for safety

The Assure Lock Interconnect is designed to meet safety and accessibility needs in shared living environments. Turning the interior lever retracts both locking points at once, providing fast exit without requiring separate actions.

Smart system ready

With Z-Wave Plus built in, this lock can be added to compatible alarm or automation systems for centralized access management, monitoring, and integration with other building controls. A compatible Z-Wave hub or controller is required.

What’s included

• Yale Assure Lock Interconnect keypad deadbolt
• Norwood lever set
• Deadbolt and latch
• Strike plate
• Mounting hardware
• Installation manual
• 4 × AA batteries

Specifications

• Model: YRC216-ZW2-NW-4-619
• Product family: Yale Pro / Assure Lock Interconnect
• Finish: Satin Nickel
• Technology: Z-Wave Plus
• Grade: ANSI/BHMA Grade 2
• Door thickness: 1-3/8" to 1-3/4"
• Center-to-center spacing: 4"
• Handing: Reversible
• Power: 4 × AA batteries
• Operating temperature: -22°F to 140°F (exterior)
