Lutron EcoSystem 5-Conductor Shielded Sensor Cable, Non-Plenum, White 1000 ft | C-CBL-522S-WH-1

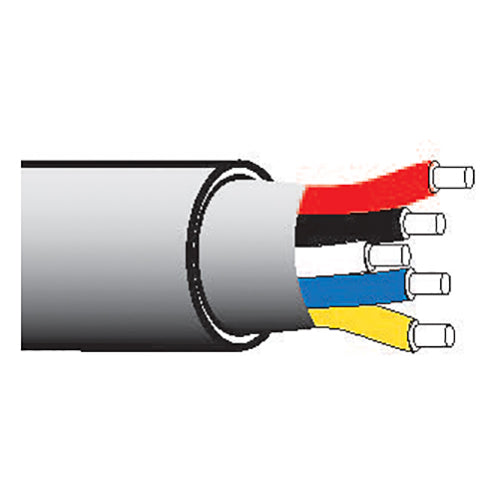

Lutron C-CBL-522S-WH-1 EcoSystem 5-Conductor Shielded Low-Voltage Cable

The Lutron C-CBL-522S-WH-1 is a custom-designed cable engineered to optimize the performance of Lutron EcoSystem lighting control systems. This 5-conductor, 22 AWG cable is the standard choice for connecting EcoSystem sensors, wallstations, and digital links in non-plenum environments.

To ensure maximum signal integrity and system reliability, this cable features an aluminum-polymer foil shield with a 24 AWG copper drain wire, protecting sensitive data transmissions from external interference. The internal conductors are color-coded specifically to match EcoSystem device terminals, significantly reducing wiring errors and installation time for contractors.

Key Features

• EcoSystem Color-Coding: Internal conductors match the terminal and lead color schemes of EcoSystem ballasts, modules, and sensors.
• Shielded Protection: Overall foil shield with drain wire prevents electromagnetic interference (EMI) for stable digital communication.
• Solid Copper Conductors: 22 AWG bare solid copper ensures high-quality, direct connections to terminal blocks without the need for soldering or crimping.
• Non-Plenum Rated: UL Type CL3 and CM rated for standard in-wall and general-purpose installations.
• Durable White Jacket: Features a UV-stabilized, 0.047-inch thick PVC jacket with indented print markings for easy identification.
• Dual Voltage Rated: Rated for 300V or 600V applications depending on the specific installation requirements.

Technical Specifications

Included in the Box

• (1) 1000 ft Spool of Lutron C-CBL-522S-WH-1 EcoSystem Cable
