Lotus Tangra Recessed Lights — Canada: trims, beams, LED engines & drivers
Procurement-ready guidance for Tangra by Lotus LED Lights with direct product links on SimplySecured.ca. Trade? Become a dealer via our B2B site SimplyControlled.ca.
This guide to Lotus Tangra recessed lights in Canada is published by Simply Secured, supplied through Lotus-authorized distributors nationwide. Because specifiers balance glare control, beam precision, ceiling conditions, and controls, this series matters. We outline trims, LED engines, and drivers that match either wall dimmers (Triac 120 V) or low-voltage control (0–10 V 120–347 V). Tangra is cETLus listed, Type IC, air-tight, and wet-location rated, with made-in-Canada manufacturing and IES/spectrum files available for submittals. In short, Simply Secured maps the series to real rooms, ceiling heights, and control strategies—so you can specify once and be confident it will perform in Canadian conditions.
Why beat a single-SKU choice in Canada
Designers and electricians rarely spec one downlight for every room. Tangra’s portfolio lets you keep a consistent look—then tune trims, beams, and LED engines for each space. You’ll match drivers to control systems without mixing brands. Simply Secured keeps variants organized at the Tangra collection. Credibility: cETLus Type IC/Air-Tight/Wet listings apply across the Tangra family; this simplifies ESA/municipal review and helps preserve the air barrier.

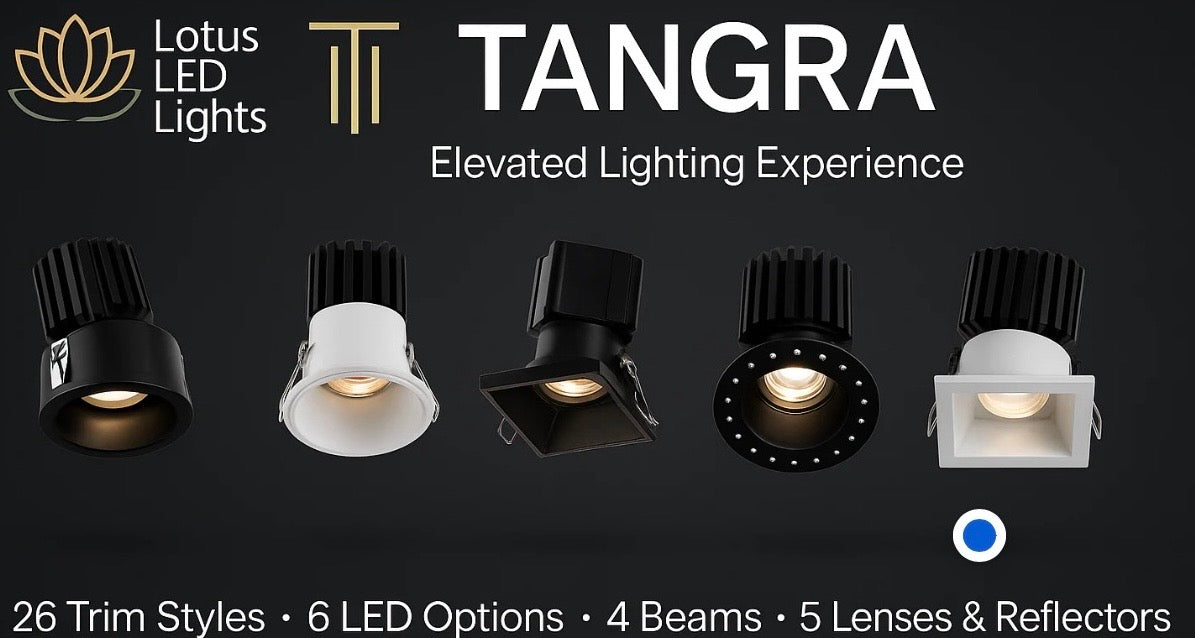

Trim styles in the family
Choose thin or wide flange; trimless/mud-in and invisible flangeless; deep-regressed for visual comfort; gimbal (including sloped variants); round and square. Finishes include white, black, alzak, white-trim/black-reflector, and oil-rubbed bronze. For compact ceilings, a 3-inch recessed gimbal keeps sightlines clean while allowing precise aim. These options ship through Simply Secured for Canadian projects.
What’s in the Tangra Series (multi-SKU map)
LED engines for
| Engine | CCT / Range | CRI (typ.) | Dimming | Notes |
|---|---|---|---|---|
| 5-CCT High-CRI | 2700/3000/3500/4000/5000 K | 95–98 | Triac 120 V / 0–10 V 120–347 V | One SKU covers most homes |
| 3000 K Fixed (Hi-CRI) | 3000 K | 95–98 | Triac 120 V / 0–10 V 120–347 V | Warm spec for living/retail |
| 5-CCT Standard | 2700–5000 K | 90–95 | Triac 120 V / 0–10 V 120–347 V | Value-focused option |
| Dim-to-Warm (DTW) | 3000→1800 K | ~95 | Triac 120 V / 0–10 V 120–347 V | Dining/bedrooms |
| 4-CCT + DTW | 3500→2700 K | ~95 | 0–10 V 120–347 V | Smooth hospitality feel |
| High-Output | Fixed/5-CCT (varies by trim) | 90–95 | 0–10 V 120–347 V | Taller spaces, fewer fixtures |
Beam choices for
Core optics are 20°/36°/50°; 24°/60° on select optics. Tailor contrast and spacing to each room.
| Beam | Use-case | Typical spacing @ 2.7 m (9 ft) |
|---|---|---|
| 20° | Art/accent, high contrast | ~1.0–1.2 m (3.3–4.0 ft) |
| 24°* | Narrow accent (select) | ~1.2–1.4 m (4.0–4.5 ft) |
| 36° | Task/surface bounce | ~1.4–1.8 m (4.5–6.0 ft) |
| 50° | General ambient | ~1.8–2.4 m (6.0–8.0 ft) |
| 60°* | Wide wash (select) | ~2.4–3.0 m (8.0–10.0 ft) |
*Available on select optics.
Lenses & reflectors
- Choose clear, frosted, or semi-frosted lenses.
- High-efficiency lenses boost CBCP for taller ceilings.
- Dual-colour lenses balance glare control and output.
Note: Beam and engine guidance align with typical IES distributions; Simply Secured can provide IES and spectrum files upon request.
: Key features & specs (Canada)
- Listings: cETLus, Type IC, Air-Tight, Wet location (shower-safe).
- Open plenum: FT6/CMP (select trims) for commercial ceilings.
- Made in Canada: short lead times and consistent finishes through Simply Secured.
- Drivers: user-selectable 11 W / 15 W classes; Triac 120 V or 0–10 V 120–347 V.
- Optics: interchangeable; core 20°/36°/50° with 24°/60° on select optics.
- Finishes: white, black, and architectural metallics (availability varies).
Design & install tips for in Canada
- Controls: Use Triac 120 V with compatible wall dimmers; choose 0–10 V 120–347 V for commercial spaces, long runs, or integration with building controls.
- Insulation/air barrier: Type IC + air-tight supports insulated ceilings; maintain vapour-barrier integrity around trimless rings.
- Low-voltage wiring: Keep 0–10 V runs short and separated from noise; target <3% voltage drop at drive current.
- Cold starts & humidity: DTW engines perform well in winter entries; wet rating supports baths/saunas/covered soffits.
- Permitting (ON): ESA notification may apply for new circuits—keep cut-sheets and cETLus labels on site.
- Support/RMA: Start at our About or Contact page for installation provider referrals.
Best pairings & scenes with
- Dining/bedrooms: Dim-to-Warm 3000→1800 K for cosy evenings; set low-end levels to avoid flicker.
- Art & features (2.4–3.0 m / 8–10 ft): 20° on gimbal; ~1.0–1.2 m spacing; aim hotspot slightly forward of seating.
- Task: 36° over islands/vanities; layer pendants as needed.
- General ambient: 50° grid for even coverage; tune minimum light levels in your control system.
Pricing & scopes for
- Two line items: fixture/trim and driver.
- Retrofit vs new build: trimless/mud-in suits new drywall; flanged for retrofit.
- Comprehensive quote signals: deep-regressed/trimless and DTW price above standard 5-CCT; we’ll flag premium selections on quotes.
- Warranty/RMA: handled via the Tangra line; keep serials and driver labels. Simply Secured provides local support.
Direct Tangra product links
Browse the full lineup on the Tangra Collection at SimplySecured.ca.
Trade & Dealer
Are you in the trade? Order wholesale via our B2B portal at SimplyControlled.ca. Apply to become a dealer and access project pricing, spec packages, and submittal files.
Featured Snippet
Checklist
- Pick trim style (flanged/trimless/regressed/gimbal; wet where needed).
- Choose LED engine (5-CCT, 3000 K, DTW 3000→1800 K, etc.).
- Set beam (20°/36°/50°; 24°/60° on select optics) for room height/task.
- Select driver (Triac 120 V or 0–10 V 120–347 V).
- Confirm ratings (cETLus, Type IC/AT, Wet) for space and insulation.
- Save IES/spectrum files to your project folder.
FAQs
Which beam should I use for 2.4–3.0 m (8–10 ft) ceilings?
Use 50° for ambient, 36° for task, and 20° to highlight art/features. Select 24°/60° only where trims support them. Keep spacing tight for 20° (~1.0–1.2 m) and wider for 50° (~1.8–2.4 m).
Are Tangra fixtures Type IC, air-tight, and wet-rated?
Yes—Tangra family fixtures carry cETLus labels with Type IC, Air-Tight, and Wet location ratings, supporting bath/shower installs and preserving the ceiling air barrier.
Triac 120 V or 0–10 V 120–347 V—how should I choose?
Pick Triac 120 V for residential scenes and simple retrofits; choose 0–10 V 120–347 V for large spaces, long runs, or integration with building controls.
Can Tangra handle sloped ceilings without glare?
Yes. Use the regressed gimbal or sloped-ceiling gimbal trims; deep regress hides the source and improves visual comfort.
Where can I get IES and spectrum files?
Ask our team to provide IES and spectral plots for your exact SKU via the contact page or, for trade users, via SimplyControlled.ca.
Strategic CTAs
- Quick consult (15 minutes): Unsure which beam or driver? Book with Simply Secured and we’ll map your rooms.
- Scoped quote: Send a ceiling plan and room photos; we’ll return a Tangra take-off with driver/control notes.
- Trade: Want wholesale pricing or to place B2B orders? Apply at SimplyControlled.ca.
Author & Review Credits
Author: Billy Wood — Simply Secured
Last reviewed: 2025-11-07
Compliance & Accuracy Footnote
Specifications can vary by trim, optic, and driver. Provincial and municipal electrical rules differ; in Ontario, ESA notification may apply to new circuits. Always use a licensed installer and follow manufacturer instructions and cETLus/Type IC/Air-Tight/Wet ratings.
In summary, if you need a Canada-ready package, Simply Secured supplies, supports, and warrants Lotus Tangra recessed lights from design through handover. Trade customers can purchase through SimplyControlled.ca.
